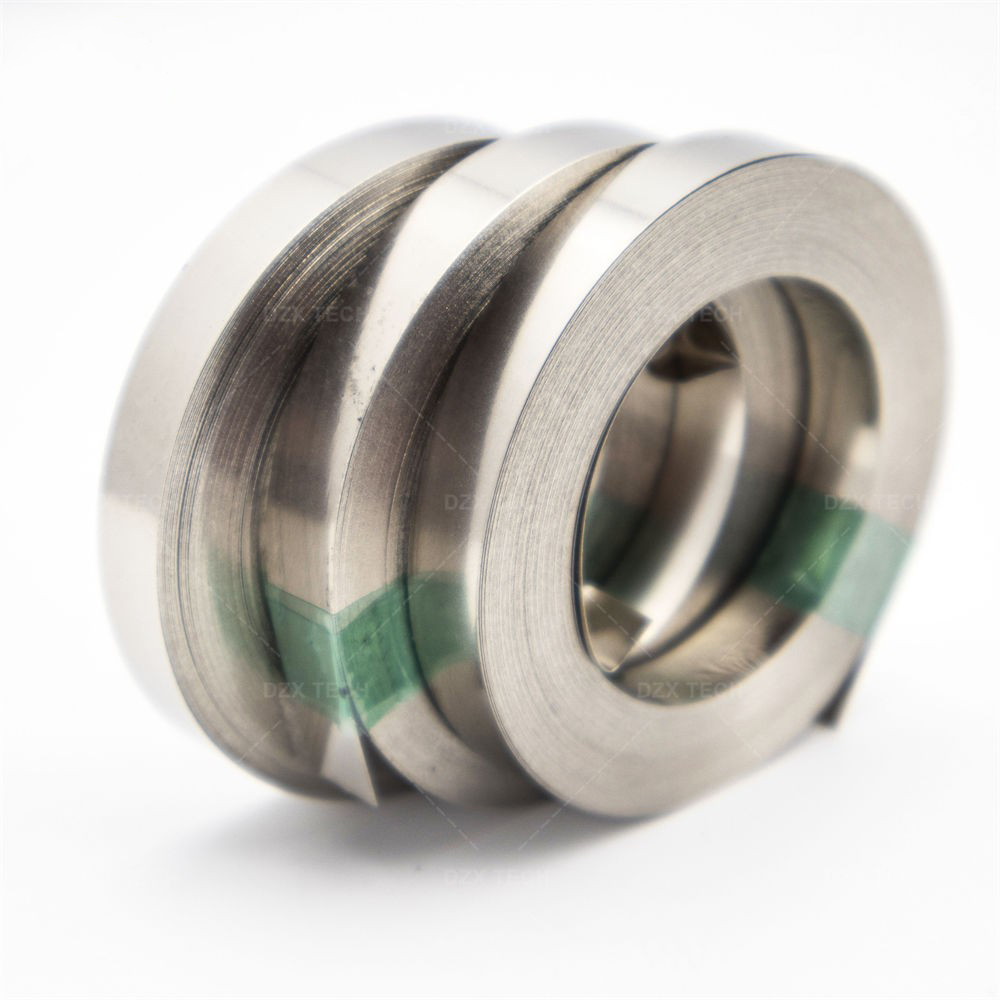

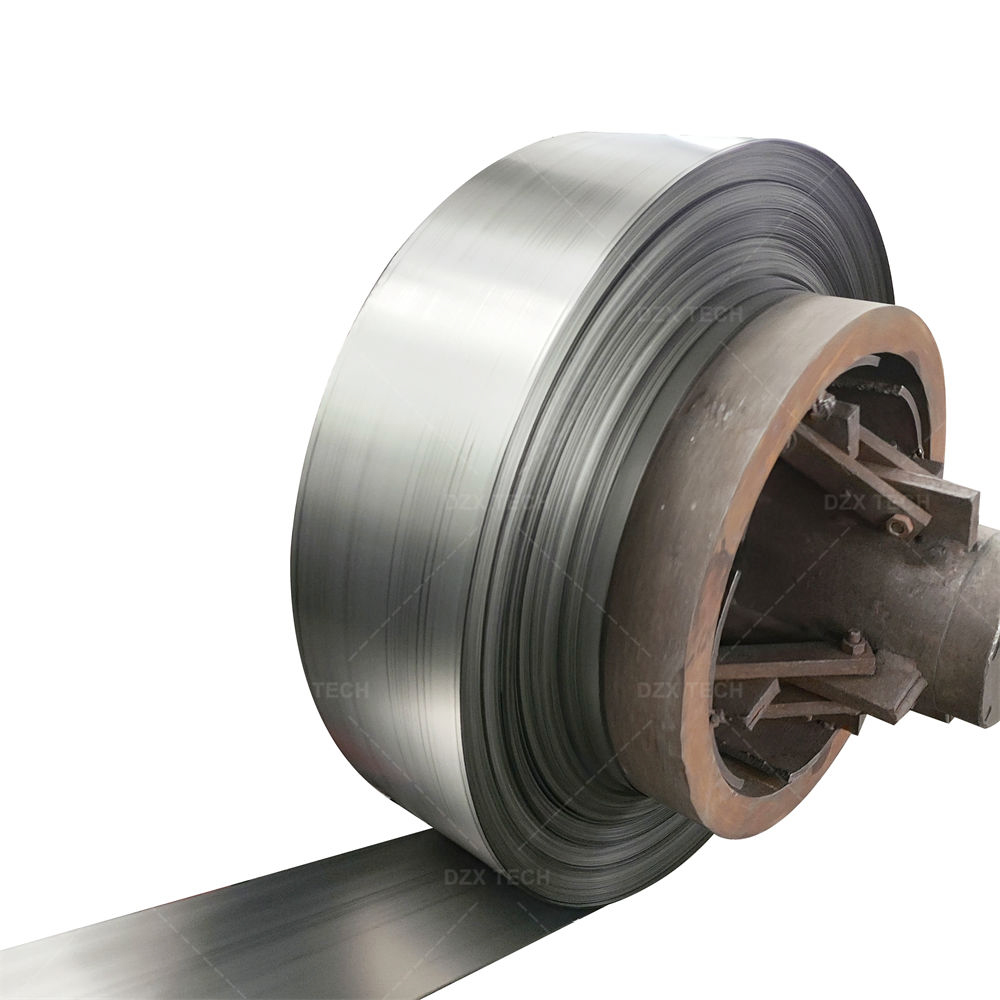

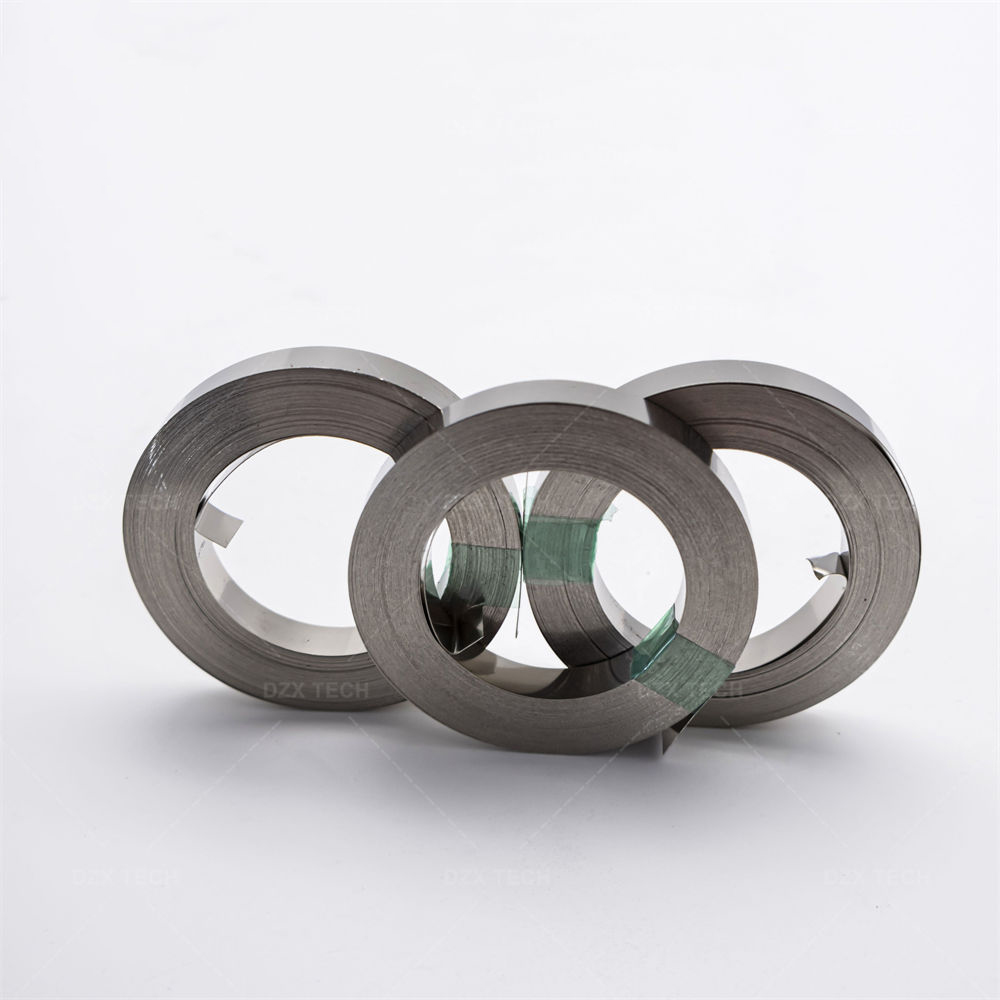

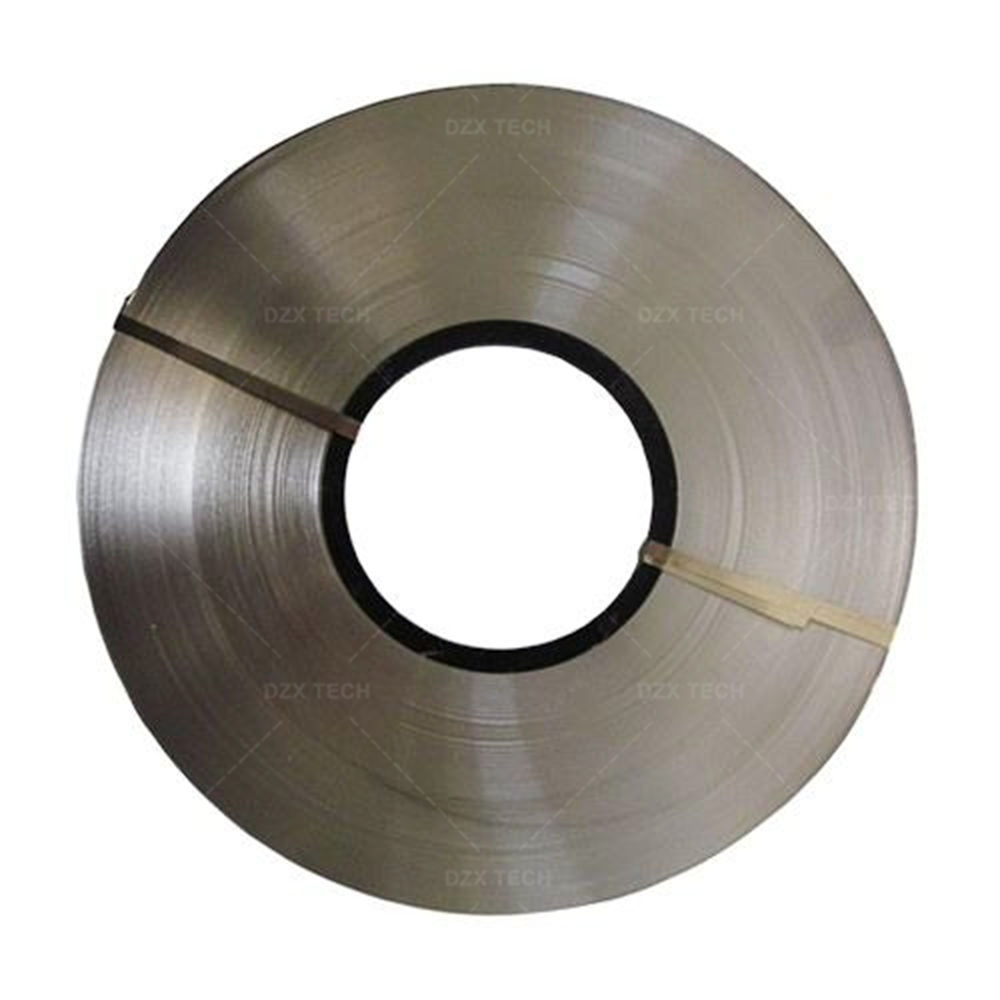

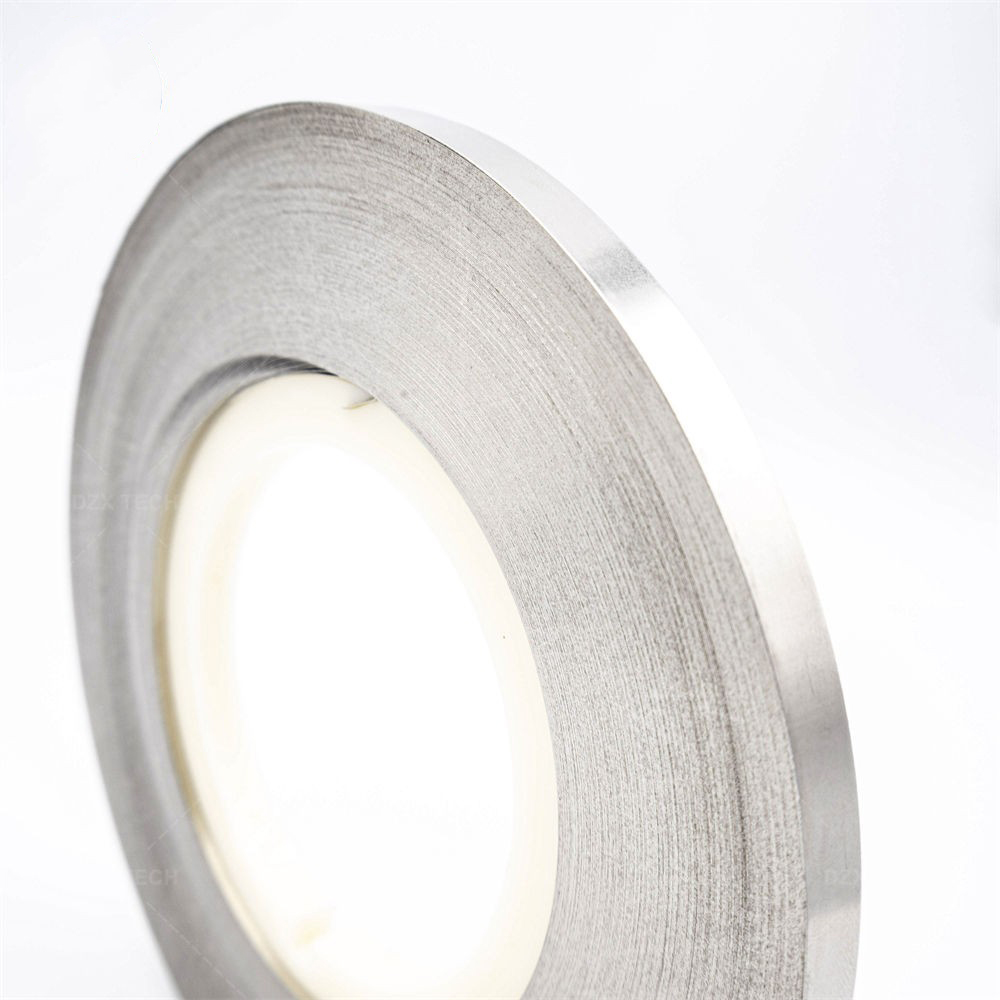

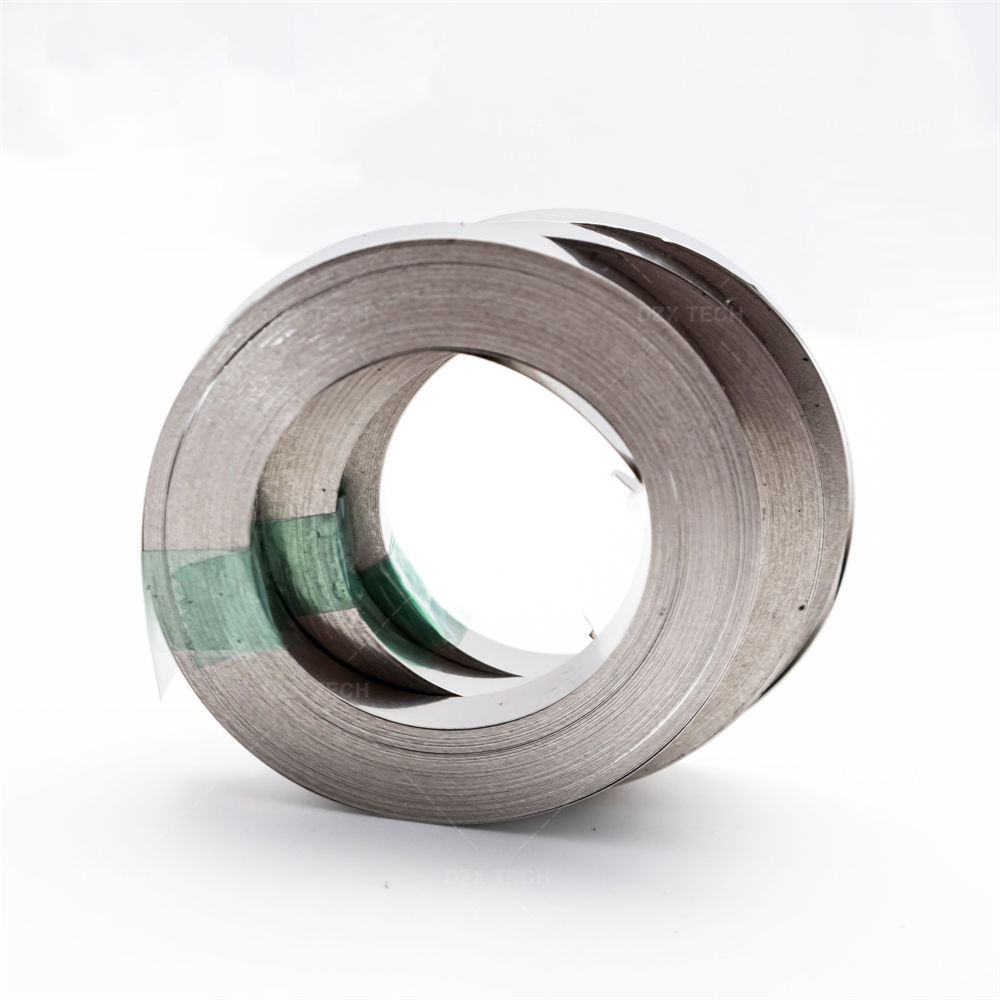

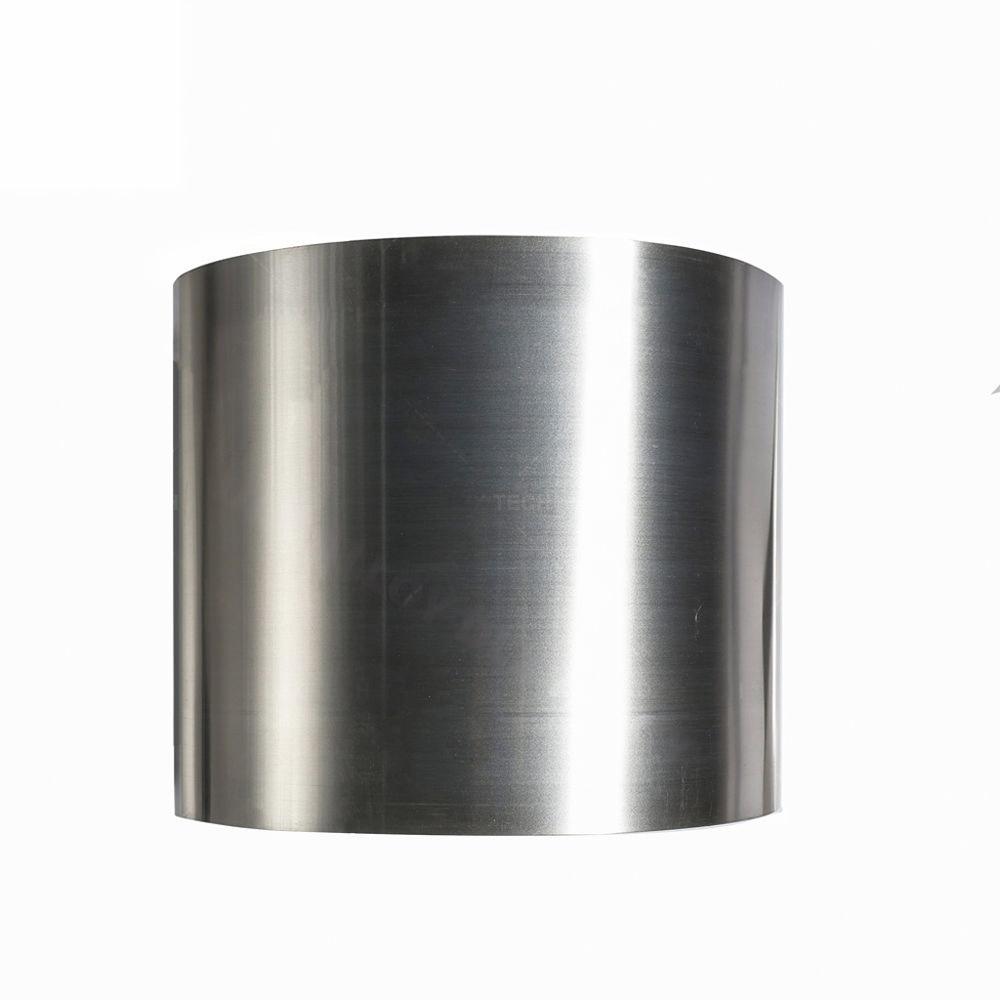

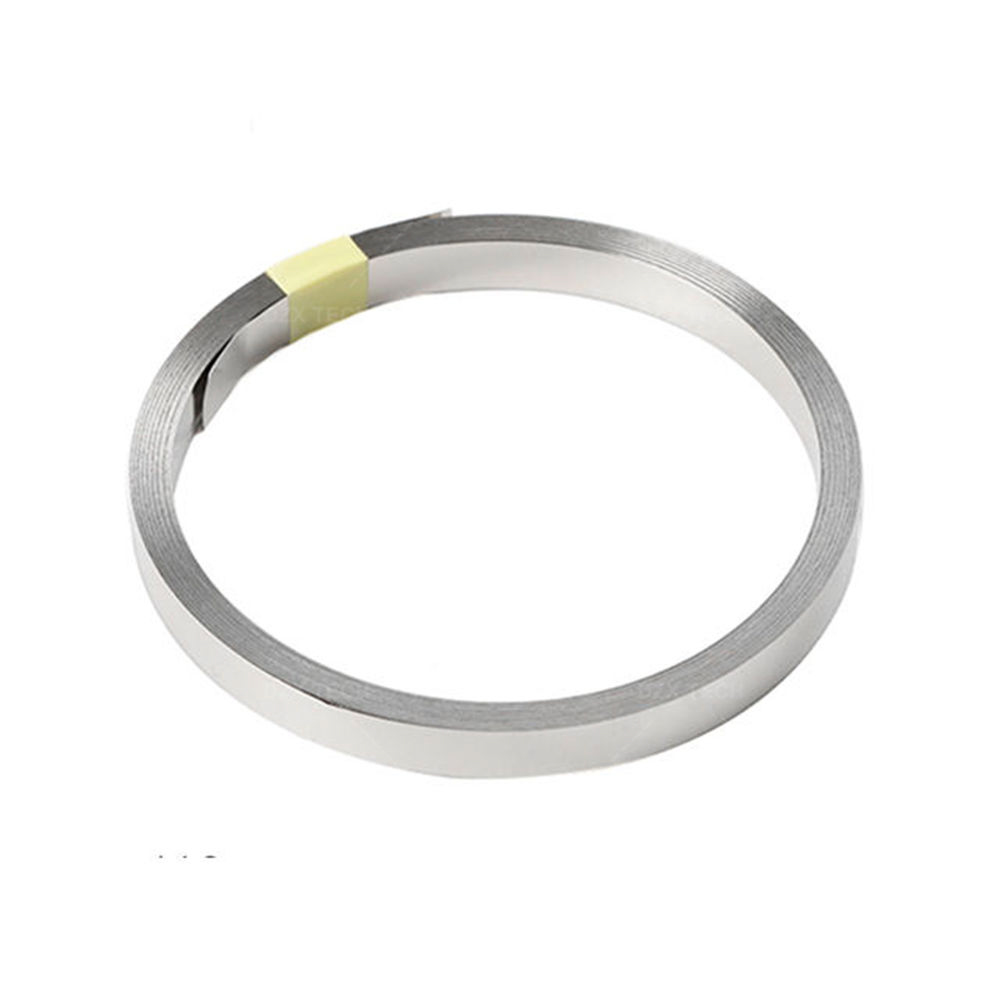

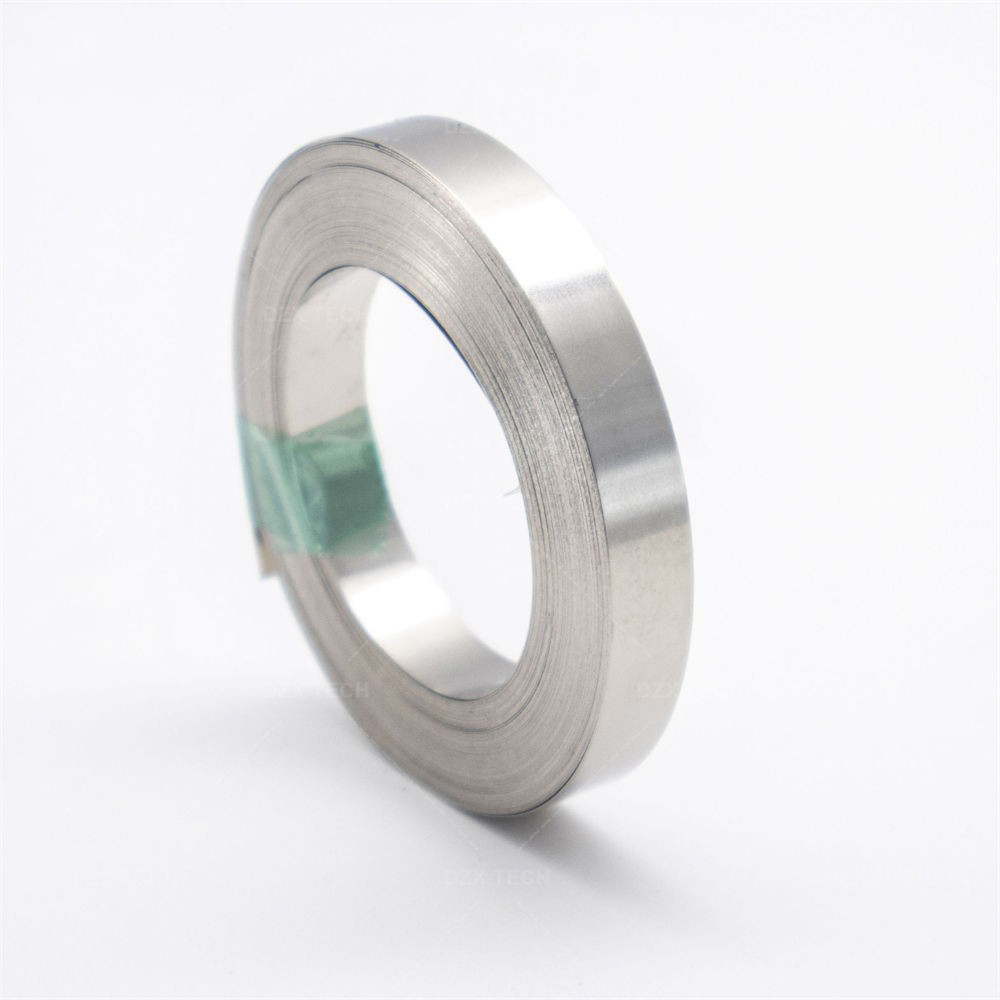

Productname: Inconel strip Grade: Nickel Base Alloy Ni (Min): 72% Size: Customized Density：8.1-8.4g/cm³ Melting Point：1350-1410℃ Tensile Strength：500-1200Mpa Yield Strength：200-1000Mpa Elongation：15-45%
0
Products Description
Inconel tape has a wide range of applications in the medical device field. Due to its excellent corrosion resistance, biocompatibility and high temperature strength, Inconel tape is widely used in manufacturing various medical devices and equipment, providing reliable solutions for the medical industry.
In medical device manufacturing, Inconel tape is often used to manufacture surgical instruments, implants and key components of medical equipment. For example, it can be used to make surgical blades, surgical forceps, and orthopedic implants. These instruments and equipment require a high degree of corrosion resistance and biocompatibility while maintaining adequate mechanical strength during surgical procedures, and Inconel tape meets these requirements.
In the medical field, the biocompatibility of materials is very important. Due to its good biocompatibility, Inconel tape is compatible with human tissue and reduces adverse reactions and rejection to the human body. This makes Inconel tape widely used in the manufacture of implantable medical devices, such as artificial joints, heart stents and dental implants.
Physical property
Chemical composition: Nickel (≥58%), Chromium (≤23%), Iron (≤1%), Aluminum (≤1%), Silicon (≤0.5%)
Density: 8.11 g/cm³
Melting point: 1,370°C (2,498°F)
Tensile strength: 550 MPa (minimum)
Yield strength: 240 MPa (minimum)
Elongation: 30% (minimum)
Item | Inconel 600 | Inconel 601 | Inconel 617 | Inconel 625 | Inconel 690 | Inconel 718 | Inconel X750 | Inconel 825 |
C | ≤0.15 | ≤0.1 | 0.05-0.15 | ≤0.08 | ≤0.05 | ≤0.08 | ≤0.08 | ≤0.05 |
Mn | ≤1 | ≤1.5 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.35 | ≤1 | ≤1 |
Fe | 6-10 | rest | ≤3 | rest | 7-11 | rest | 5-9 | ≥22 |
P | ≤0.015 | ≤0.02 | ≤0.015 | -- | -- | -- | -- | -- |
S | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.01 | ≤0.01 | ≤0.03 |
Si | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.5 |
Cu | ≤0.5 | ≤1 | -- | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.5 | 1.5-3 |
Ni | ≥72 | 58-63 | ≥44.5 | 50-55 | ≥58 | 50-55 | ≥70 | 38-46 |
Co | -- | -- | 10-15 | ≤10 | -- | ≤1 | ≤1 | -- |
Al | -- | 1-1.7 | 0.8-1.5 | ≤0.8 | -- | 0.2-0.8 | 0.4-1 | ≤0.2 |
Ti | -- | -- | ≤0.6 | ≤1.15 | -- | -- | 2.25-2.75 | 0.6-1.2 |
Cr | 14-17 | 21-25 | 20-24 | 17-21 | 27-31 | 17-21 | 14-17 | 19.5-23.5 |
Nb+Ta | -- | -- | -- | 4.75-5.5 | -- | 4.75-5.5 | 0.7-1.2 | -- |
Mo | -- | -- | 8-10 | 2.8-3.3 | -- | 2.8-3.3 | -- | 2.5-3.5 |
B | -- | -- | ≤0.006 | -- | -- | -- | -- | -- |
Shape | Size (mm) |
Wire | 0.5-7.50 |
Rod/Bar | 8.0-200 |
Strip | (0.5-2.5)*(5-180) |
Tube/Pipe | Customized |
Sheet/Plate | Customized |
For more details, pls directly contact us.
Characteristic:
Biocompatibility: Inconel tape has good biocompatibility, has no obvious toxicity or adverse reactions to human tissues and body fluids, and is suitable for the manufacturing of medical devices and implants.
Corrosion resistance: Inconel tape has excellent corrosion resistance to liquids and chemical media in the body, and can maintain stability in the internal environment and extend the service life of the device.
Strength and durability: Inconel tape has high strength and durability, able to withstand the stress and load during the use of medical devices, maintaining stable shape and function.
Specific applications:
Surgical instruments: Inconel tape can be used to make surgical instruments, such as scalpel blades, clamps and needle tips, etc. It provides high strength and corrosion resistance and is suitable for fields such as surgery and microsurgery.
Implanted devices: Inconel tapes are widely used in the manufacture of implanted devices, such as cardiac stents, orthopedic implants and artificial joints, etc., providing good biocompatibility and corrosion resistance for medical treatment and rehabilitation.
Medical sensors: Inconel tapes can be used to manufacture medical sensors, such as implantable sensors and monitoring devices in the body, for real-time monitoring of vital signs and disease indicators, providing stable signals and reliable performance.
Q&A:
Q: How biocompatible is Inconel tape in medical devices?
A: Inconel tape has good biocompatibility and has no obvious toxicity or adverse reactions to human tissues and body fluids. It is suitable for use in the manufacturing of medical devices and implants to reduce adverse effects on the human body.
Q: What are the specific applications of Inconel tapes in implantable devices?
A: Inconel tapes are widely used in the manufacture of implantable devices, such as cardiac stents, orthopedic implants and artificial joints, etc., providing good biocompatibility and corrosion resistance for medical treatment and rehabilitation.
Q: What is the role of Inconel tape in medical sensors?
A: Inconel tapes can be used to manufacture medical sensors, such as in-body implantable sensors and monitoring devices, for real-time monitoring of vital signs and disease indicators, providing stable signals and reliable performance to aid medical monitoring and diagnosis.
