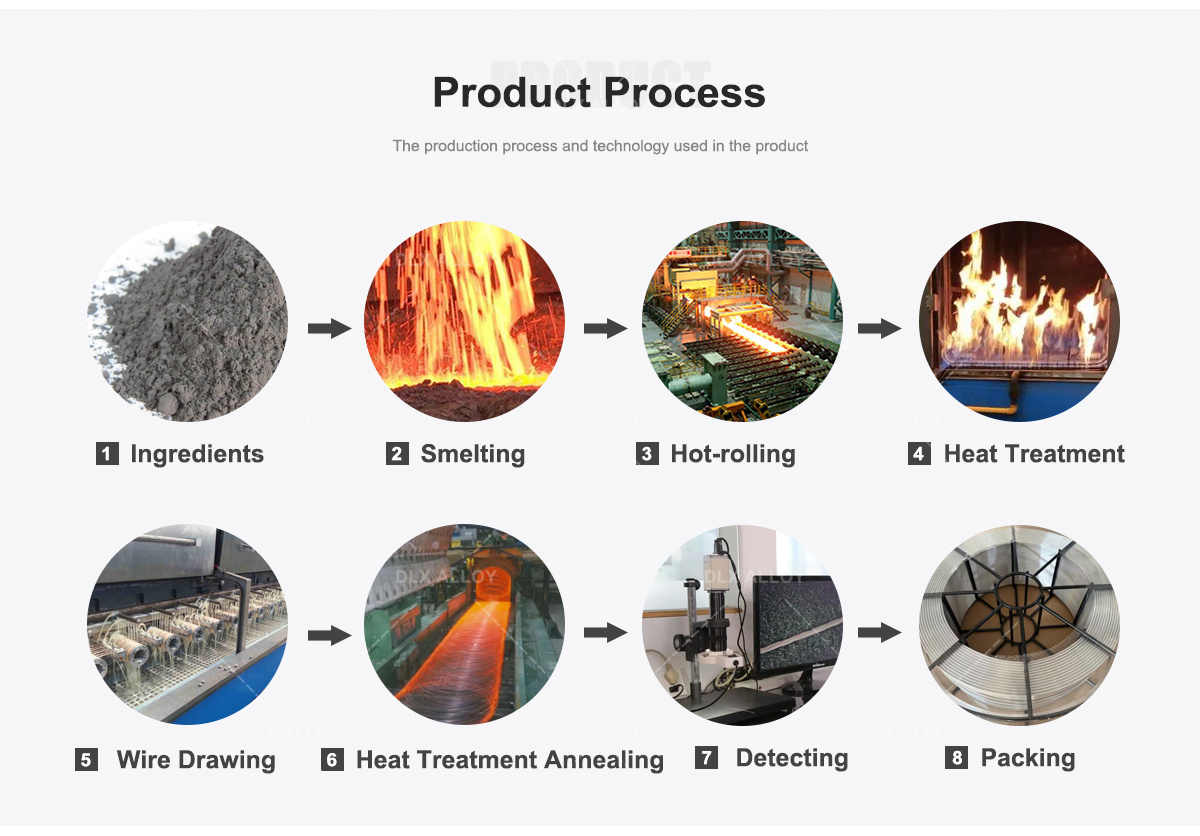

Product name: Thermal Spray Wire Grade: Inconel 625,Ni95Al5,45CT,Monel 400,HC-276,Cr20Ni80 Size: Accept Custom Resistivity:1.09±0.05 Application:Heating, household electrical application Technique:Cold Drawing
0
Products Description

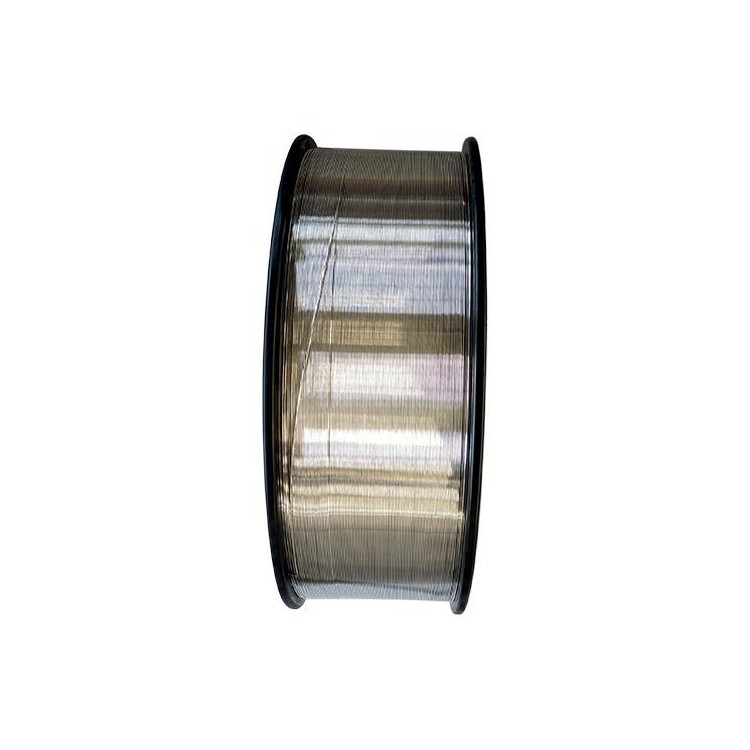

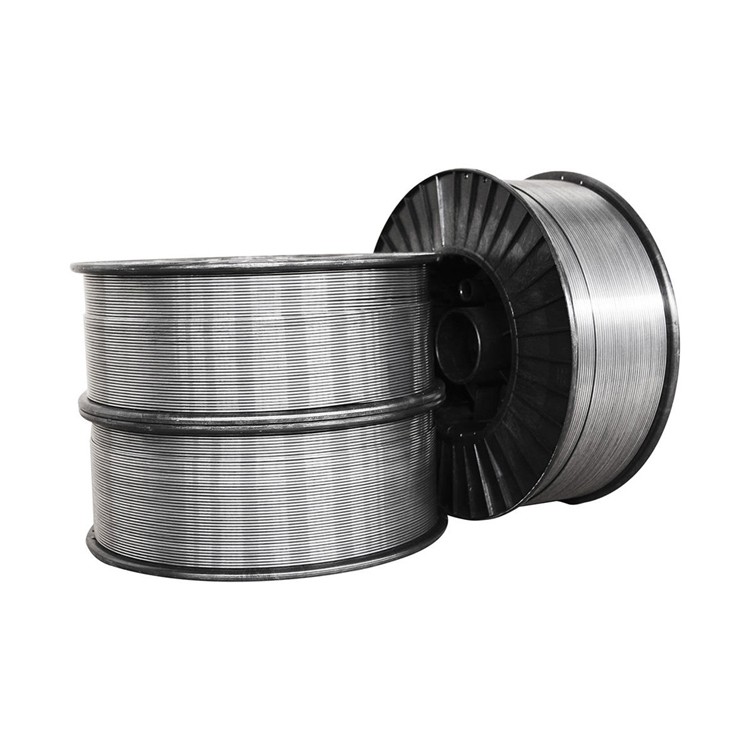

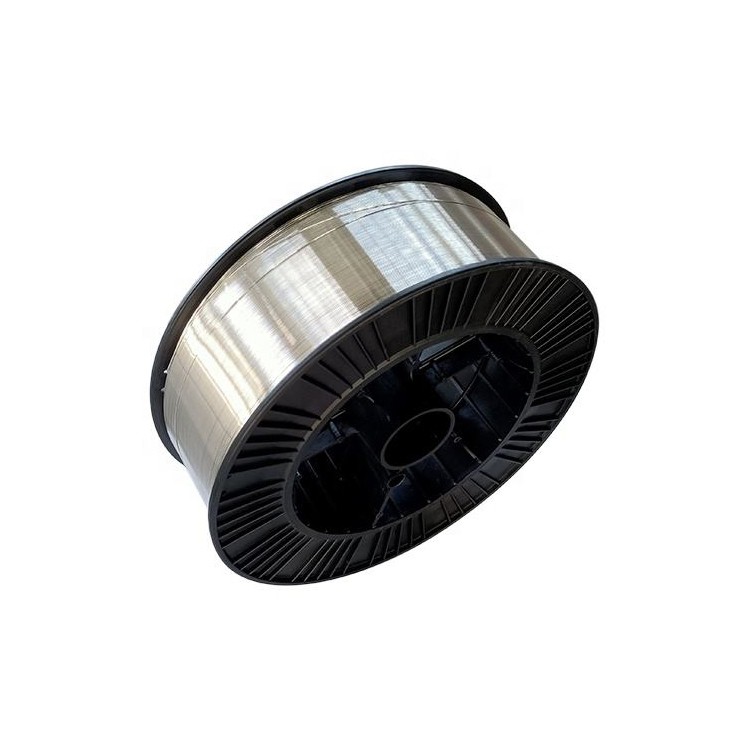

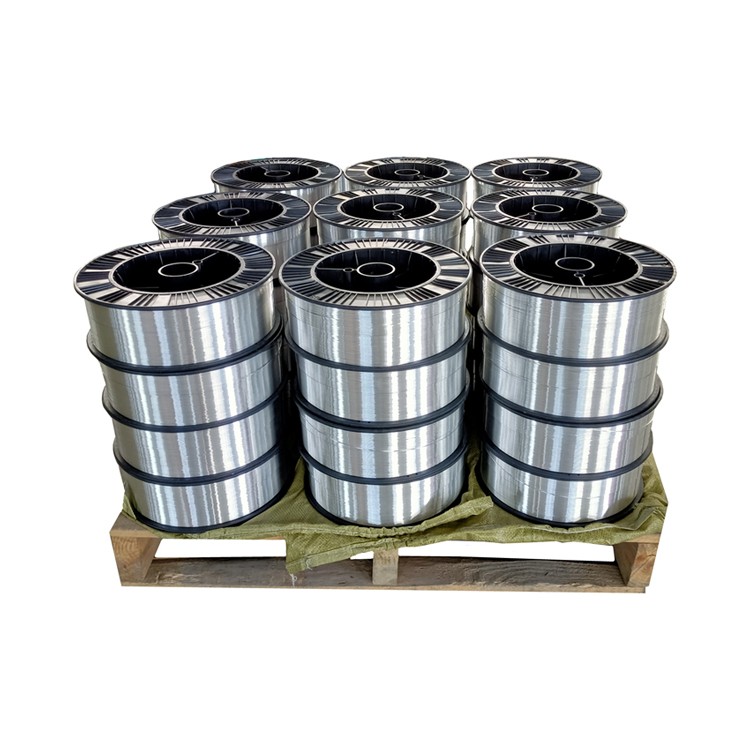

Thermal spray wire
Thermal Spray Wire is widely used in arc and flange flame spray systems, highly anti-corroision and anti-high temperature, coatings to resist heat and prevent scaling of conventional low alloy steels, bond coats for improving the adhesion of top coatings, coatings on moulds in the glass industry.
Thermal spray wire series: Inconel 625, 45CT, Ni95Al5, Monel 400, Monel K500, Hastelloy C276, Cr20Ni80, pure zinc wire
Application or Properties: Spray wire with excellent bonding strength. Sprayed layers of this material are-resistant to variation in high temperatures and are used as a buffer layer for all other spraying alloys. Hardness, coating macro: approximately HRc 22. Maximum working temperature: approximately 800°C. Layer thickness: approximately 0.1-0.15 mm.
Specification
Item | Inconel 625 | Ni95Al5 | 45CT | Monel 400 | Monel K500 | HC-276 | Cr20Ni80 |
C | ≤0.05 | ≤0.02 | 0.01-0.1 | ≤0.04 | ≤0.25 | ≤0.02 | ≤0.08 |
Mn | ≤0.4 | ≤0.2 | ≤0.2 | 2.5-3.5 | ≤1.5 | ≤1.0 | ≤0.06 |
P | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.02 |
S | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 |
Si | ≤0.15 | ≤0.2 | ≤0.2 | ≤0.15 | ≤0.5 | ≤0.08 | 0.75-1.6 |
Cr | 21.5-23 | ≤0.2 | 42-46 | -- | -- | 14.5-16 | 20-23 |
Ni | rest | rest | rest | 65-67 | rest | rest | rest |
Cu | -- | -- | -- | rest | 27-33 | -- | -- |
Mo | 8.5-10 | -- | -- | -- | -- | 15-17 | -- |
Ti | ≤0.4 | 0.4-1 | 0.3-1 | 2.0-3 | 0.35-0.85 | -- | -- |
Al | ≤0.4 | 4-5 | -- | ≤0.5 | 2.3-3.15 | -- | -- |
Fe | ≤1.0 | -- | ≤0.5 | ≤1.0 | ≤1.0 | 4.0-7.0 | -- |
Nb | 3.5-4.15 | -- | -- | -- | -- | -- | ≤1.0 |
| Co | -- | -- | -- | -- | -- | -- | -- |
V | -- | -- | -- | -- | -- | ≤0.35 | -- |
W | -- | -- | -- | -- | -- | 3.0-4.5 | -- |
Impurities | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
