Productname：pure nickel strip Grade：nickel Ni (Min)：99% Size：Customized Ultimate Strength (≥ MPa)：462 Elongation (≥ %)：35% Density：8.89g/cm³ Melting Point (℃)：1435-1446℃
0
Products Description

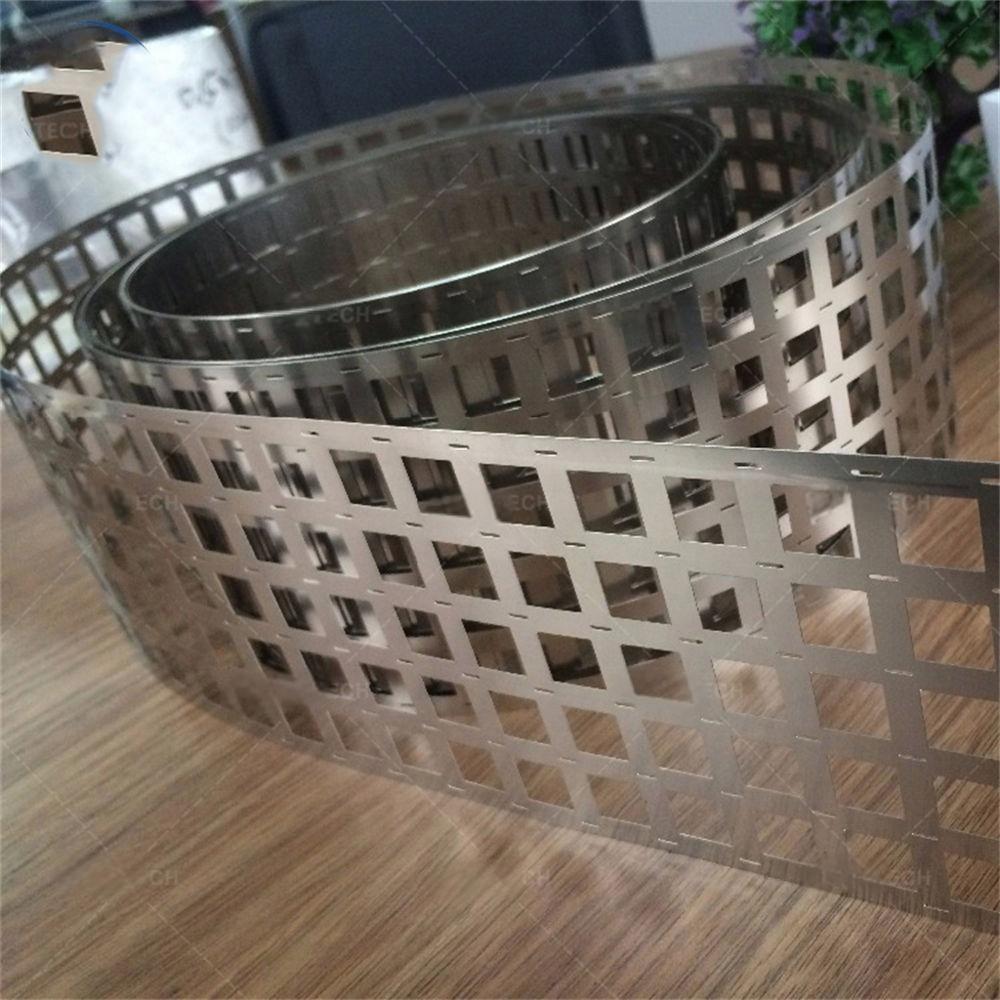

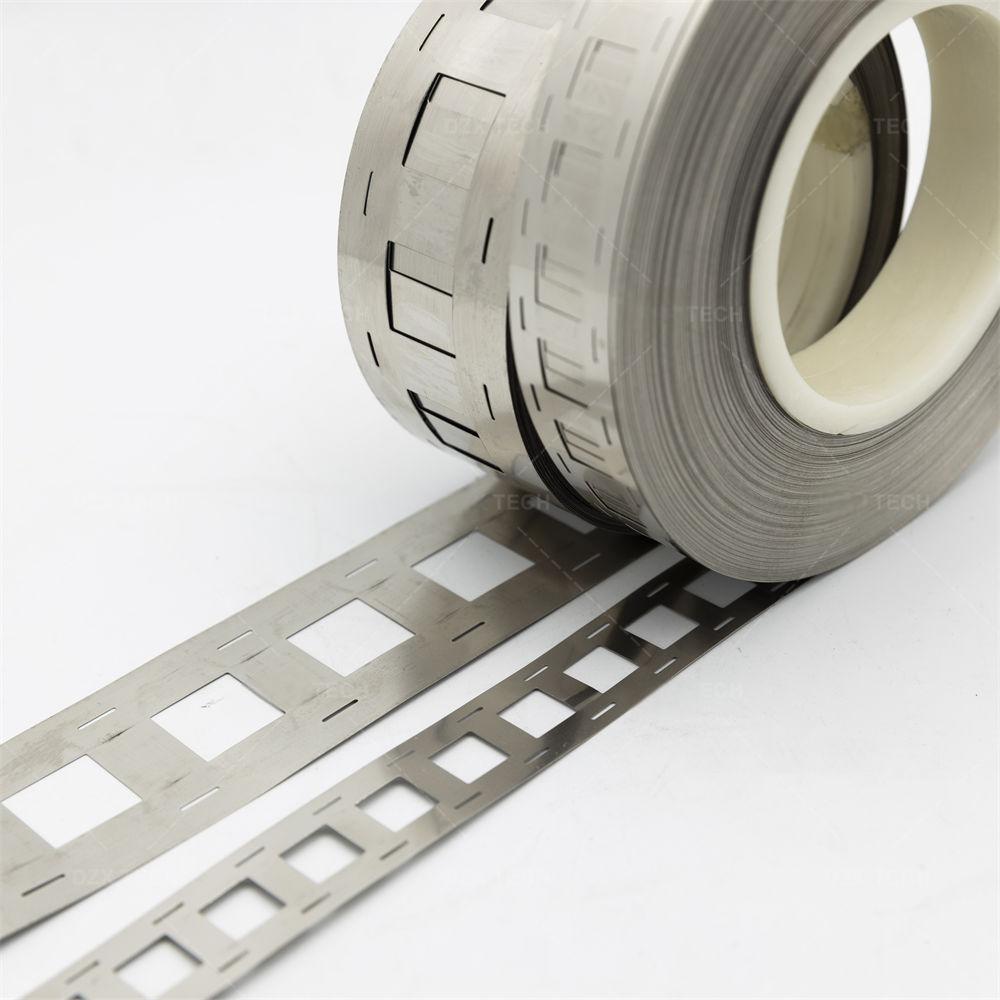

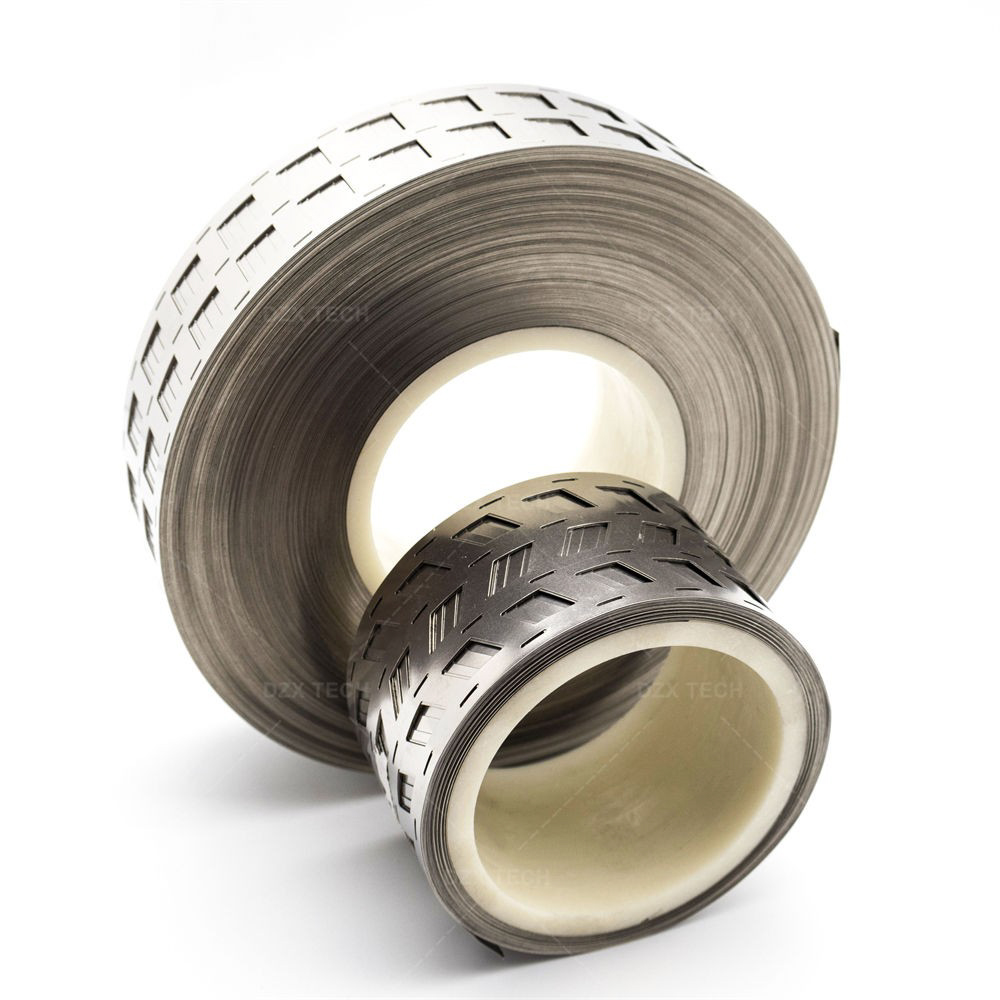

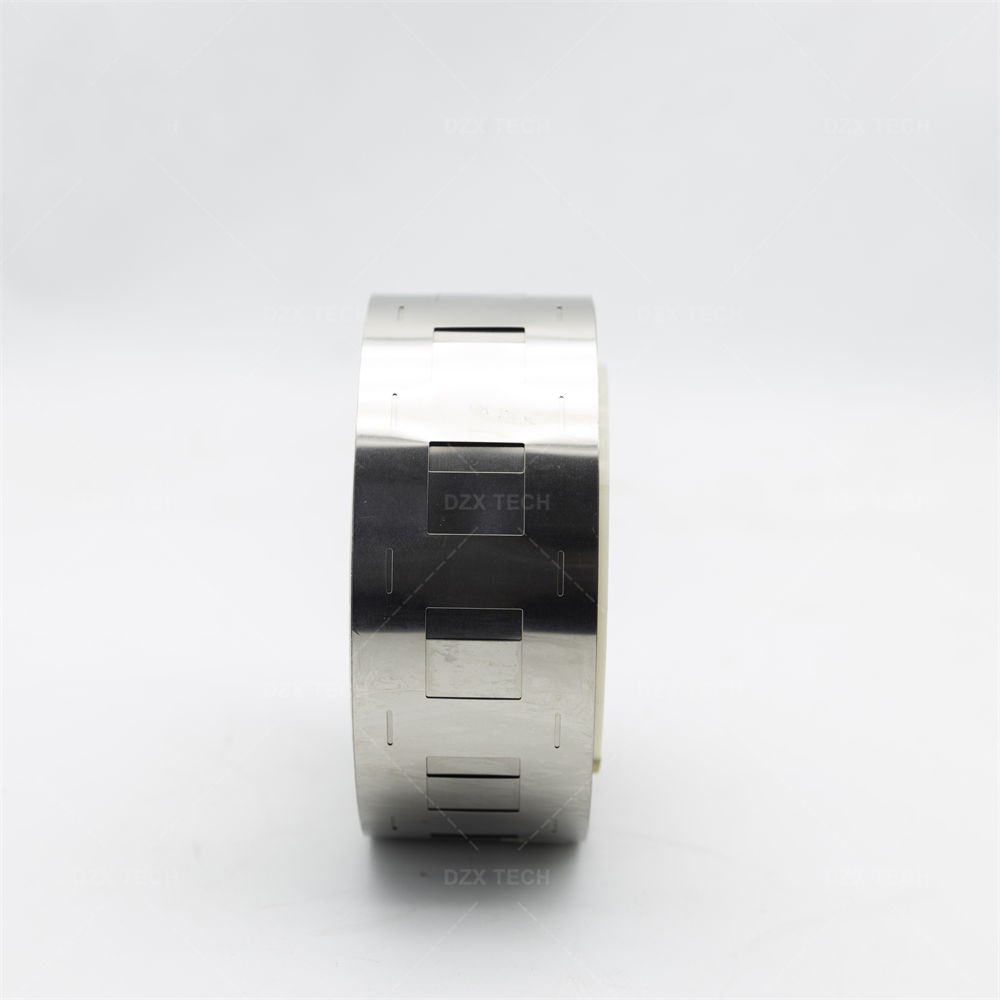

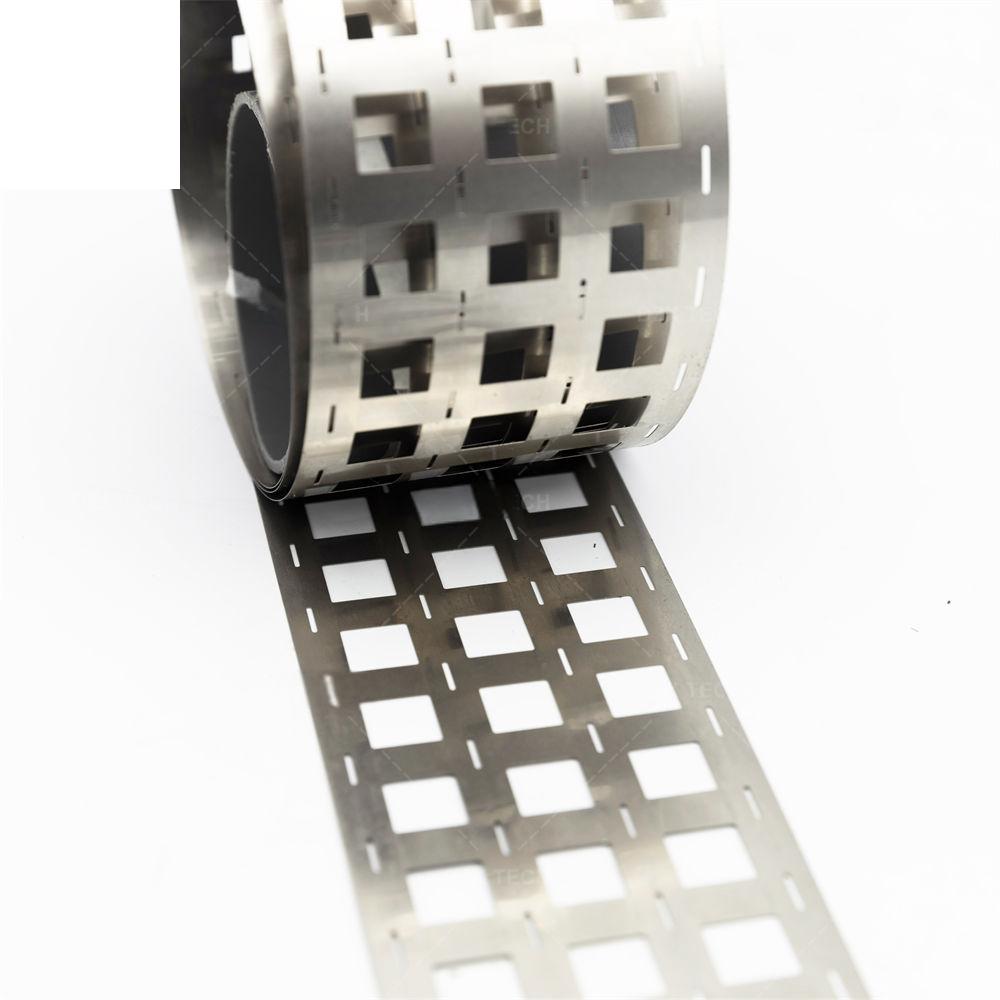

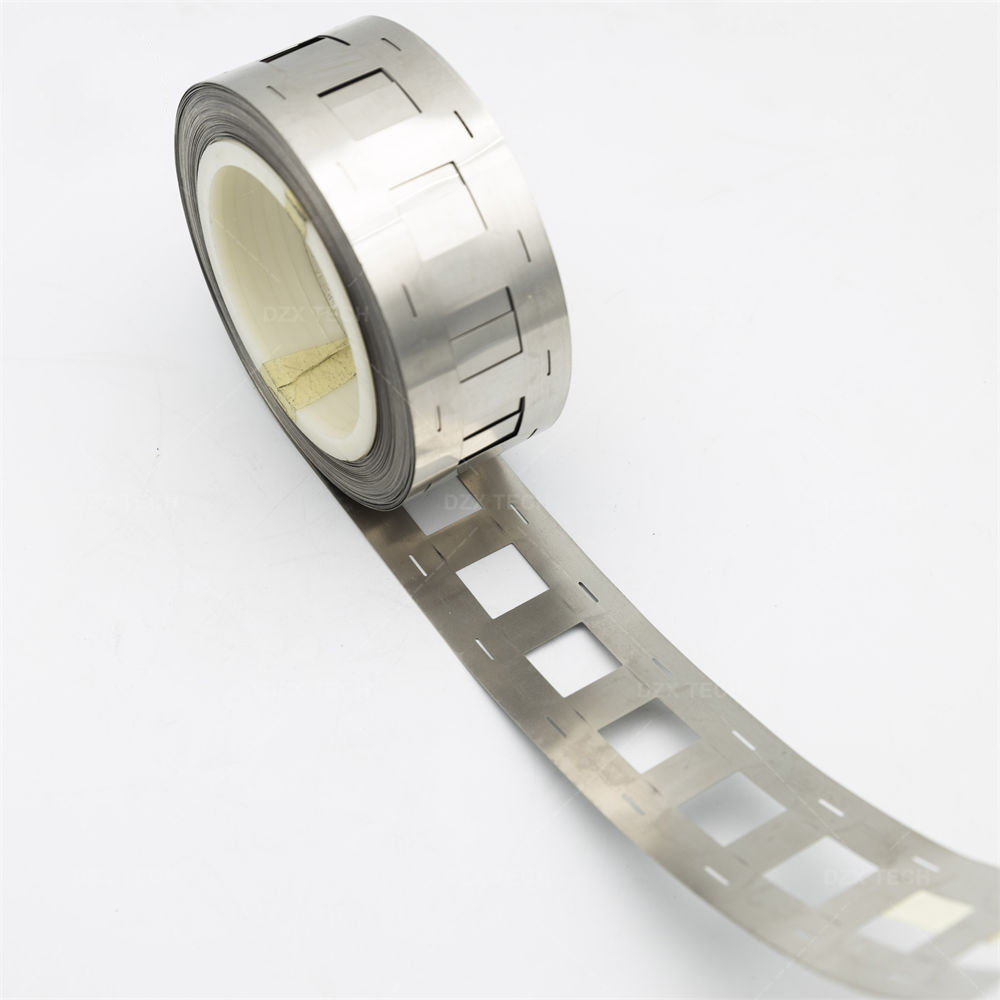

1P 2P 3P 4P 5P 6P pure nickel strip for 18650 28650 32650 lithium battery pack spot weld
Pure nickel tape has excellent properties and multiple advantages in the electronics industry. Its electrical and thermal conductivity properties, plasticity, weldability and corrosion resistance make it widely used in the manufacture of electronic components, connectors, relays and resistors. The use of pure nickel tape can ensure the high performance, reliability and stability of electronic equipment and meet the needs of different application scenarios.
Dimension
The thickness and dimensions can be met what customers required.
Characteristic:
Excellent electrical conductivity: Pure nickel tape has high electrical conductivity and can effectively conduct current, ensuring good current transmission performance.
Stable Resistivity: Pure nickel tape has low resistivity and stable resistivity properties at different temperatures, making it an ideal material for manufacturing high-precision resistors.
Excellent plasticity: Pure nickel strips have good plasticity and can be easily processed into various shapes and sizes to suit different application needs.
Good solderability: Pure nickel strips are easy to weld and can be reliably connected to other electronic components, ensuring the reliability and stability of the equipment.
Corrosion resistance: Pure nickel belt has good corrosion resistance and can resist corrosion and oxidation caused by acid, alkali, humidity and other environmental conditions.
Advantage:
High precision and stability: Since pure nickel strip has stable resistivity and good temperature coefficient characteristics, it is widely used in the manufacturing of electronic components and resistors that require high precision and stable performance.
Reliable connection performance: The plasticity and weldability of pure nickel strips make it a contact material for electronic connectors and relays, ensuring reliable current transmission and connection performance.
Good heat dissipation performance: Pure nickel tape has excellent thermal conductivity, which can effectively conduct and disperse the heat generated by the equipment and maintain a stable operating temperature of the equipment.
Specification
Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
N4 | 99.9 | ≤0.015 | ≤0.03 | ≤0.002 | ≤0.01 | ≤0.01 | ≤0.001 | ≤0.001 | ≤0.04 |
N6 | 99.5 | 0.10 | 0.10 | 0.05 | 0.10 | 0.10 | 0.005 | 0.002 | 0.10 |
Ni201 | ≥99.9 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / | ≤0.40 |
Ni200 | ≥99.6 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.15 | / | ≤0.01 | / | ≤0.40 |
| Type | Dimension(mm) | Cell Spacing:(mm) | Width | Dimension of the Square hole (mm) | Nickel Plated Steel Strip | Pure Nickel | Type of Battery Pack | |
| Length for per kg (m) | with holder | without holder | ||||||
| 1P 18650 Nickel strip | 0.15*7*18.4 | 18.4 | 7 | 一 | 128.3 | 112.6 | √ | |
| 0.15*7*19 | 19 | 一 | 127.9 | 112.1 | √ | |||
| 0.15*7*19.5 | 19.5 | 一 | √ | |||||
| 0.15*7*20.25 | 20.25 | 一 | 127.6 | 111.9 | √ | |||
| 2P 18650 Nickel strip | 0.15*26*19(13.5*13.5) | 19 | 26 | 12*12 | 47.2 | 41.4 | √ | |
| 0.15*27*19.5(12*14.5) | 19.5 | 27 | 12*14.5 | 48.9 | 42.9 | √ | ||
| 0.15*27*19.75(12.5*12.5) | 19.75 | 12.5*12.5 | 47 | 41.2 | √ | |||
| 0.15*27*20.25(13.5*13.5) | 20.25 | 13.5*13.5 | 48.9 | 42.9 | √ | |||
| 2P 18650 Nickel strip | 0.15*25.5*18.4(11*12.5) | 18.4 | 25.5 | 11*12.5 | 48.9 | 42.9 | √ | |
| Dislocation 2P 18650 Nickel strip | 0.15*25.5*18.4(8*9.5) | 18.4 | 8*9.5 | 41.1 | 36.1 | √ | ||
| Dislocation 2P 18650 Nickel strip | 0.15*25.5*19.5(8*9.5) | 19.5 | 8*9.5 | 38.6 | 33.8 | √ | ||
| 3P 18650 Nickel strip | 0.15*44.5*18.4(11*12.5) | 18.4 | 44.5 | 11*12.5 | 27.4 | 24 | √ | |
| 0.15*45*19(12*12) | 19 | 45 | 12*12 | 29.1 | 25.5 | √ | ||
| 0.15*47.5*20.15(12.65*12.65) | 20.15 | 47.5 | 12.6.5*12.65 | 27.4 | 24 | √ | ||
| 0.15*47.5*20.25(13.5*13.5) | 20.25 | 13.5*13.5 | 29.4 | 25.7 | √ | |||
| 4P 18650 Nickel strip | 0.15*63*18.5 (11*12.5) | 18.5 | 63 | 11*12.5 | 21.6 | 18.9 | √ | |
| 0.15*64*19(12*12) | 19 | 64 | 12*12 | 21 | 18.4 | √ | ||
| 0.15*67.95*20.15(12.65*12.65) | 20.15 | 67.95 | 12.65*12.65 | 19.6 | 17.2 | √ | ||
| 0.15*67.7*20.25(13.5*13.5) | 20.25 | 67 | 13.5*13.5 | 21.3 | 18.7 | √ | ||
| 5P 18650 Nickel strip | 0.15*83*19(12*12) | 19 | 83 | 12*12 | 16.4 | 14.4 | √ | |
| 0.15*88.1*20.15(12.65*12.65) | 20.15 | 88.1 | 12.65*12.65 | 19.7 | 17.3 | √ | ||
| 0.15*87.9*20.25(13.5*13.5) | 20.25 | 87.9 | 13.5*13.5 | 16.7 | 14.6 | √ | ||
| 6P 18650 Nickel strip | 0.15*102*19(12*12) | 19 | 102 | 12*12 | 13.5 | 11.9 | √ | |
| 0.15*108.25*20.15 | 20.15 | 108.25 | 12.65*12.65 | 12.6 | 11 | √ | ||
| 0.15*108.1*20.25(13.5*13.5) | 20.25 | 108.1 | 13.5*13.5 | 13.7 | 12 | √ | ||
| 7P 18650 Nickel strip | 0.15*121*19(12*12) | 19 | 121 | 12*12 | 11.5 | 10 | √ | |
| 0.15*128.4*20.15(12.65*12.65) | 20.15 | 128.4 | 12.65*12.65 | 10.7 | 9.4 | √ | ||
| 0.15*128.3*20.25(13.5*13.5) | 20.25 | 128.3 | 13.5*13.5 | 11.6 | 10.2 | √ | ||
| 8P 18650 Nickel strip | 0.15*140*19(12*12) | 19 | 140 | 12*12 | 10 | 8.7 | √ | |
For more details, pls directly contact us.
Specific applications:
Resistors: Pure nickel strips are commonly used to manufacture various types of resistors such as current transformers, potentiometers, and thermistors to meet high-precision measurement and control needs.
Connectors and Relays: Pure nickel tape can be used as contact material for connectors and relays, ensuring stable current transmission and reliable connections.
Conductive materials and heat dissipation materials: Pure nickel strips can be used as conductive materials and heat dissipation materials for electronic equipment, providing good current transmission and heat dissipation functions to ensure the normal operation of the equipment.
Other relevant knowledge points:
Pure nickel strips usually have high purity and are generally prepared by electrolytic nickel or molten nickel.
Pure nickel strip can be manufactured through different processing methods, such as rolling, drawing and welding.
The size and thickness of pure nickel strip can be customized according to the requirements of the specific application.
When selecting pure nickel strips, factors such as resistivity, temperature coefficient, electrical conductivity, corrosion resistance, and processability need to be considered.
To sum up, pure nickel ribbon has excellent conductivity properties, stable resistivity characteristics and good plasticity and weldability in the electronics industry. It is widely used in electronic components, resistors, connectors and relays to meet the requirements of high precision, stability and reliability. In addition, pure nickel strips can also be used as conductive materials and heat dissipation materials to ensure the normal operating temperature of the equipment. When selecting pure nickel strip, consider its characteristics and benefits and customize it to your specific application needs.
