Name:Inconel barMaterial:Ni Cr FeNickel(Min):72%Density:8.47 G/cm3Melting Point:1,370-1,415℃Tensile Strength:≥550 MPaYield Strength:≥240 MPaElongation:≥30%Sureface:Bright,Oxided
0
Products Description

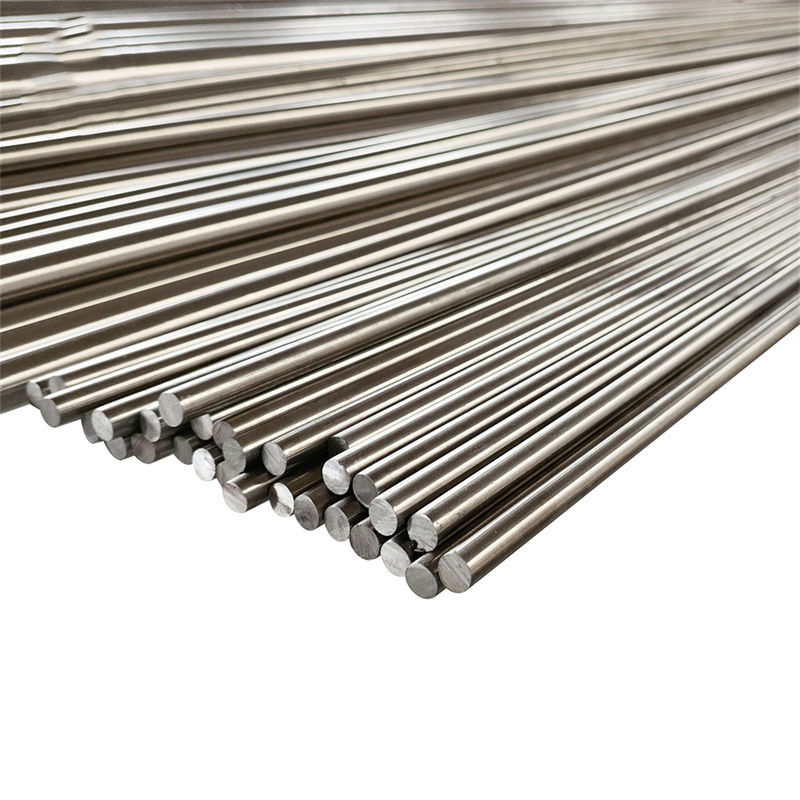

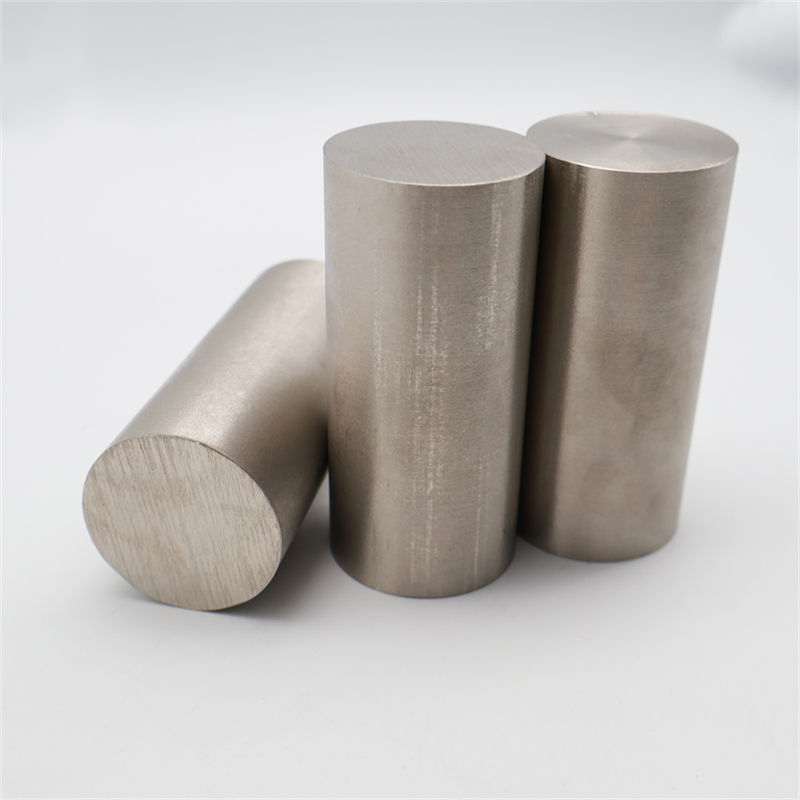

Inconel alloy bar is a high-performance material widely used in the aerospace field. It is composed of nickel, chromium and other alloying elements and has excellent high temperature resistance, corrosion resistance and fatigue resistance.
Due to the strict requirements for materials in the aerospace industry, Inconel alloy rods have become one of the preferred materials. It maintains stable performance in extreme temperature environments and has excellent resistance to oxidation and hot corrosion. This makes it widely used in aircraft engines, aviation turbine blades, combustion chambers and other high-temperature components.
Parameter:
Item | Inconel 600 | Inconel 601 | Inconel 617 | Inconel 625 | Inconel 690 | Inconel 718 | Inconel X750 | Inconel 825 |
C | ≤0.15 | ≤0.1 | 0.05-0.15 | ≤0.08 | ≤0.05 | ≤0.08 | ≤0.08 | ≤0.05 |
Mn | ≤1 | ≤1.5 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.35 | ≤1 | ≤1 |
Fe | 6-10 | rest | ≤3 | rest | 7-11 | rest | 5-9 | ≥22 |
P | ≤0.015 | ≤0.02 | ≤0.015 | -- | -- | -- | -- | -- |
S | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.01 | ≤0.01 | ≤0.03 |
Si | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.5 |
Cu | ≤0.5 | ≤1 | -- | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.5 | 1.5-3 |
Ni | ≥72 | 58-63 | ≥44.5 | 50-55 | ≥58 | 50-55 | ≥70 | 38-46 |
Co | -- | -- | 10-15 | ≤10 | -- | ≤1 | ≤1 | -- |
Al | -- | 1-1.7 | 0.8-1.5 | ≤0.8 | -- | 0.2-0.8 | 0.4-1 | ≤0.2 |
Ti | -- | -- | ≤0.6 | ≤1.15 | -- | -- | 2.25-2.75 | 0.6-1.2 |
Cr | 14-17 | 21-25 | 20-24 | 17-21 | 27-31 | 17-21 | 14-17 | 19.5-23.5 |
Nb+Ta | -- | -- | -- | 4.75-5.5 | -- | 4.75-5.5 | 0.7-1.2 | -- |
Mo | -- | -- | 8-10 | 2.8-3.3 | -- | 2.8-3.3 | -- | 2.5-3.5 |
B | -- | -- | ≤0.006 | -- | -- | -- | -- | -- |
Shape | Size (mm) |
Wire | 0.5-7.50 |
Rod/Bar | 8.0-200 |
Strip | (0.5-2.5)*(5-180) |
Tube/Pipe | Customized |
Sheet/Plate | Customized |
For more details, pls directly contact us.
Feature:
High Temperature Resistance: Inconel alloy rods are able to maintain high strength and corrosion resistance at extremely high temperatures. It can withstand temperatures up to over 1,000 degrees Celsius, making it ideal for aerospace applications in high-temperature environments.
Corrosion resistance: Inconel alloy rods have excellent resistance to a variety of corrosive media, including fuels, oxidants, salt water and acidic gases. This makes it ideal for aerospace components where corrosion resistance is critical.
High strength: Inconel alloy rods have excellent strength and toughness and can maintain their mechanical properties even under high temperature conditions. This allows it to withstand the high stress and vibration loads found in aerospace applications.
Advantage:
Lightweight design: The high strength and corrosion resistance of Inconel alloy rods enable lightweight designs for aerospace equipment. Compared with traditional materials, Inconel alloy rods can reduce the weight of parts and improve the fuel efficiency and performance of aircraft.
Long Life and Reliability: The corrosion resistance and high temperature performance of Inconel alloy rods extend the life of components and reduce the need for repairs and replacements. This makes aerospace equipment more reliable and reduces operating costs.
Versatility: Inconel alloy rods are available in a variety of blendable compositions and heat treatments, allowing them to be customized to the requirements of specific applications. It can be applied to various aerospace components, such as engine parts, propellers, combustion chambers, turbine blades and pneumatic heaters, etc.
Specific applications:
Specific applications of Inconel alloy rods in the aerospace field include:
Aero-engine parts: Inconel alloy rods are often used to manufacture high-temperature parts, such as turbine blades, turbine disks, combustion chambers and nozzles, etc. They are able to withstand high temperature and high pressure working environments and have excellent corrosion resistance.
Aerospace propulsion system: Inconel alloy rods are widely used in spacecraft propulsion systems, including rocket engines and jet thrusters. Due to its high temperature and corrosion resistance, it provides reliable performance under extreme operating conditions.
Aerospace structural parts: Inconel alloy rods can also be used to manufacture structural parts of aerospace vehicles, such as connecting rods, brackets and connectors. These parts require high strength and corrosion resistance to ensure the structural integrity and reliability of the spacecraft.
Q&A:
Q: Does Inconel alloy bar have good weldability?
Answer: Yes, Inconel alloy rods have good weldability. It can be connected to other materials through appropriate welding methods.
Q: What is the price of Inconel alloy rods?
Answer: Inconel alloy rods are relatively expensive due to their rare metal composition and high performance properties. Specific prices will vary based on alloy composition, specifications, market supply and demand and other factors.
Q: In addition to the aerospace field, what other applications do Inconel alloy rods have?
Answer: In addition to the aerospace field, Inconel alloy rods are also widely used in petrochemical, energy, chemical and nuclear industries, especially in situations where high-performance materials are required under high temperatures and corrosive environments.
