Product name: MI Cable Size: Custom Size Customized support:OEM, ODM, OBM, Software reengineering Standard:IEC 584, ASTM Application:Temperature Measuring Insulator:99.6% high purity MgO Temperature range:0~1100(℃)
0
Products Description
Thermocouple bare wire Type K N E with low price

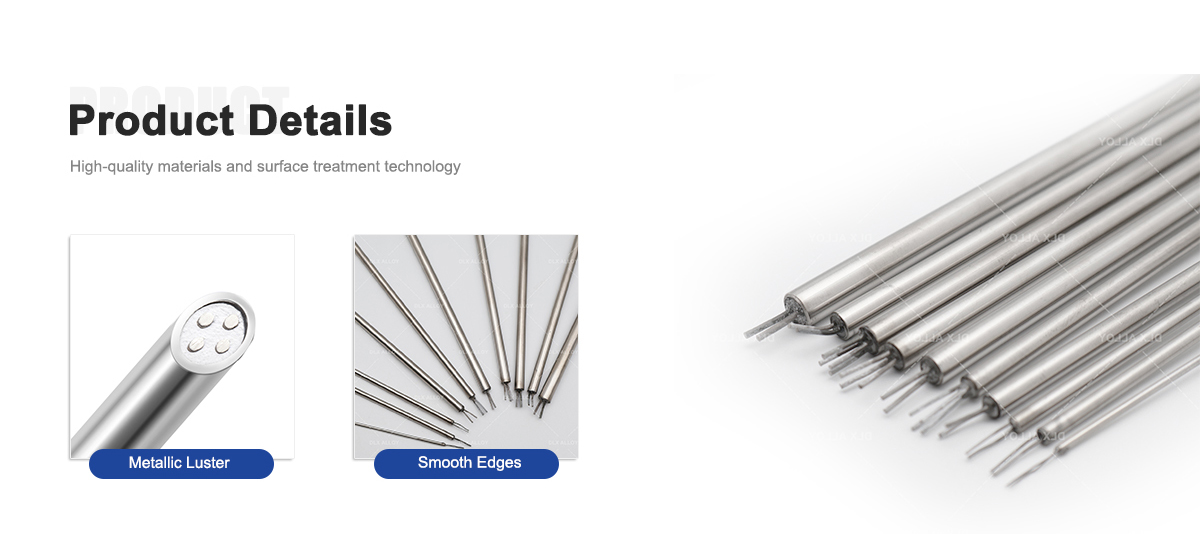

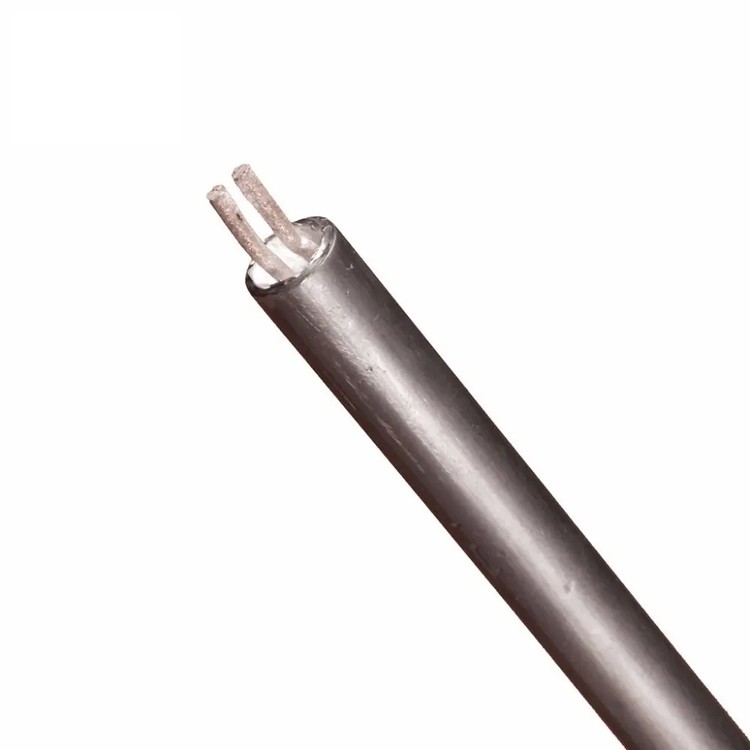

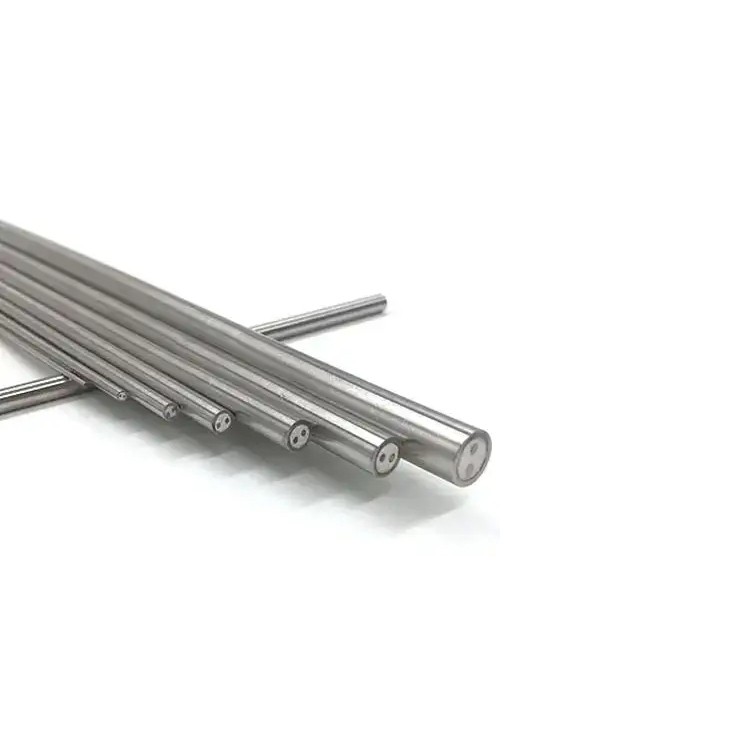

Name: Sheath Wire Type K
Type: K, N, E, J, T
Conductor material: NiCr-NiSi, NiCrSi-NiSi, NiCr-Konstantan, Fe Konstantan, Cu Konstantan
Insulator: 99.6% high purity MgO
Core number: 2, 4, 6
Sheath material: SS321(SS304), SS316, SS310, INCL600, Nicrobell
Dia (mm): from 0.25mm to 12.7mm
Application: connecting with thermocouple and instrument machine
Place of Origin: Jiangsu, China (Mainland)
MOQ: 100m
Certificate: ISO, CQC
Specification
Code | Wire Component of the thermocouple | ||
+Positive leg | - Negative Leg | ||
N | Ni-Cr-Si(NP) | Ni-Si-magnesium (NN) | |
K | Ni-Cr(KP) | Ni-Al(Si) (KN) | |
E | Ni-Cr(EP) | Cu-Ni (EN) | |
J | Iron (JP) | Cu-Ni (JN) | |
T | Copper (TP) | Cu-Ni (TN) | |
B | Platinum Rhodium-30% | Platinum Rhodium -6% | |
R | Platinum Rhodium-13% | Platinum | |
S | Platinum Rhodium -10% | Platinum | |
Material | Type | Grade | Working temperature (deg) | Tolerance | Standard | |
Long Term | Short Term | |||||
NiCr-NiSi | K | 1 | -40~1100 | -40~1300 | ±1.5 deg | GB/T 2614-1998 |
2 | ±2.5 deg | |||||
NiCr-CuNi | E | 1 | -40~800 | -40~900 | ±1.5 deg | GB/T 4993-1998 |
2 | ±2.5 deg | |||||
Fe-Constantan | J | 1 | -40~600 | -40~800 | ±1.5 deg | GB/T 4994-1998 |
2 | ±2.5 deg | |||||
Cu-CuNi | T | 1 | -200~300 | -200~400 | ±0.5 deg | GB/T 2903-1998 |
For more details, pls directly contact us.
