Products Description
120 watt cable mineral insulated cable prices mineral insulated thermocouple cable
Description

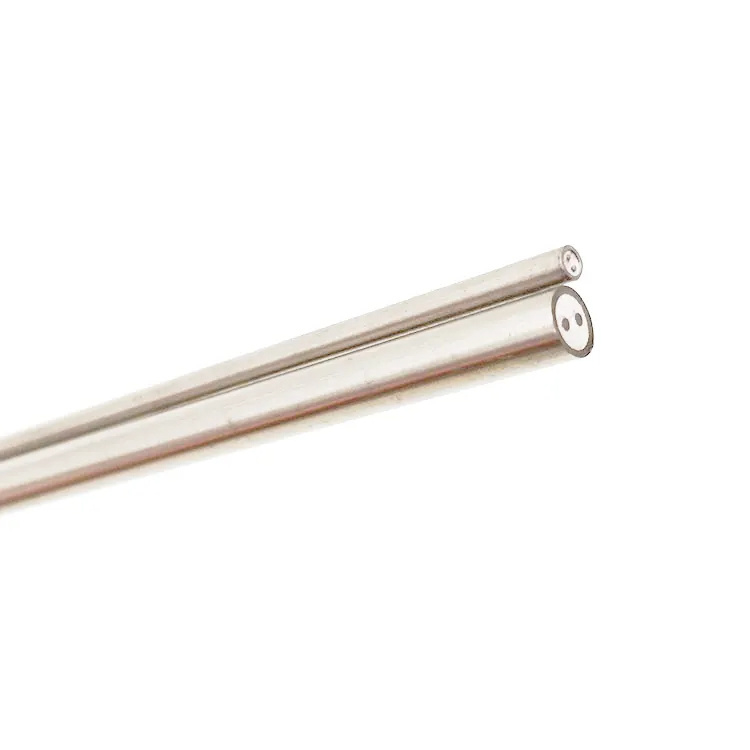

Mineral insulated cable Type J (MIC Type J) is a temperature measurement cable designed specifically for high-temperature environments. It uses iron copper nickel alloy as the thermocouple element, combined with magnesium oxide as the insulation material, and is wrapped in a seamless metal sheath. This structure endows Type J cables with excellent high-temperature resistance and can operate stably in environments with extreme temperatures up to 1200 ° C. Type J cables, with their excellent fire resistance, long-term stability, and chemical corrosion resistance, provide reliable solutions for precise temperature monitoring and control in fields such as chemical, steel manufacturing, power industry, and food processing.
Products parameter
Code | Wire Component of the thermocouple | ||
+Positive leg | - Negative Leg | ||
N | Ni-Cr-Si(NP) | Ni-Si-magnesium (NN) | |
K | Ni-Cr(KP) | Ni-Al(Si) (KN) | |
E | Ni-Cr(EP) | Cu-Ni (EN) | |
J | Iron (JP) | Cu-Ni (JN) | |
T | Copper (TP) | Cu-Ni (TN) | |
B | Platinum Rhodium-30% | Platinum Rhodium -6% | |
R | Platinum Rhodium-13% | Platinum | |
S | Platinum Rhodium -10% | Platinum | |
Calibration of thermocouple | Model number of Compensation cable | Alloy wire name of Compensation cable |
S or R | SC or RC | Cu-CuNi |
K | KC | Cu-CuNi |
KX | NiCr-NiSi | |
N | NC | Fe-CuNi |
NX | NiCrSi-NiSiMg | |
E | EX | NiCr-CuNi |
J | JX | Fe-CuNi |
T | TX | Cu-CuNi |
Isulation | PTFE | PFA | TEF | FEP | PVC | FG | Silicone | Quartz Fiber |
Max temp (℃) | 260 | 260 | 200 | 200 | 108 | 400 | 200 | 800 |
Mineral Insulated Cable (MIC Type J) is a temperature measurement solution designed specifically for industrial environments. It uses iron copper nickel alloy as thermocouple element, combined with magnesium oxide as inorganic insulation material, and seamless metal sheath, forming a high-temperature resistant, stable and reliable measurement system. Type J cables are suitable for extreme temperature environments up to 1200 ° C and are an ideal choice for industrial process control and high temperature monitoring.
Core features
High temperature tolerance: able to operate stably under extreme high temperatures, with a maximum temperature of up to 1200 ° C.
Accurate measurement: Iron copper nickel alloy provides accurate temperature measurement, suitable for various industrial applications.
Fire resistance performance: It can maintain the integrity of the circuit even in flames, ensuring power supply safety.
Long term stability: Inorganic materials ensure the stability and durability of cables during long-term use.
Anti chemical corrosion: suitable for use in chemical processing environments, resistant to the erosion of various chemical substances.
Easy to install: The design considers the convenience of industrial installation and simplifies the deployment process.
application area
High temperature furnace monitoring: Monitoring the temperature of high-temperature furnaces in steel, ceramics, and glass manufacturing.
Chemical and Petrochemical: Control temperature in chemical reactors and storage tanks to optimize production processes.
Power industry: Monitor the temperature of power plant boilers and steam pipelines to prevent equipment overheating.
Food processing: Control temperature during high-temperature cooking and baking to ensure food safety.
Research and Laboratory: Used in research experiments that require precise temperature control and recording.
User benefits
Improved safety: The fire-resistant and waterproof properties enhance the safety of industrial applications.
Reduce maintenance costs: Long term stability reduces the need for maintenance and replacement.
Enhanced production efficiency: Accurate temperature control optimizes the production process and improves product qualification rate.
Environmental adaptability: Its resistance to chemical corrosion makes it suitable for various industrial environments.
epilogue
Mineral insulated cable Type J has become a reliable choice for industrial high-temperature measurement and control due to its excellent high-temperature performance and accuracy. Whether in high-temperature furnace monitoring or chemical process control, Type J cables can provide stable and reliable services, making them a key component in ensuring industrial production safety and efficiency.
Related Q&A
Q: What is the measurement accuracy of Type J mineral insulated cables?
Answer: Type J cables use iron copper nickel alloy as thermocouple elements, providing accurate temperature measurement and suitable for various industrial environments.
Q: What are the specific advantages of the fire resistance performance of Type J cables?
Answer: The fire resistance of Type J cables means that they can maintain the integrity of the circuit even in the event of a fire, without causing fire or aiding combustion, ensuring continuous power supply and safety in emergency situations.
Q: Under what circumstances should Type J mineral insulated cables be chosen?
Answer: When precise temperature measurements are required at extreme temperatures up to 1200 ° C, Type J cables are an ideal choice, especially in the steel manufacturing, chemical, and petrochemical industries.
