Products Description

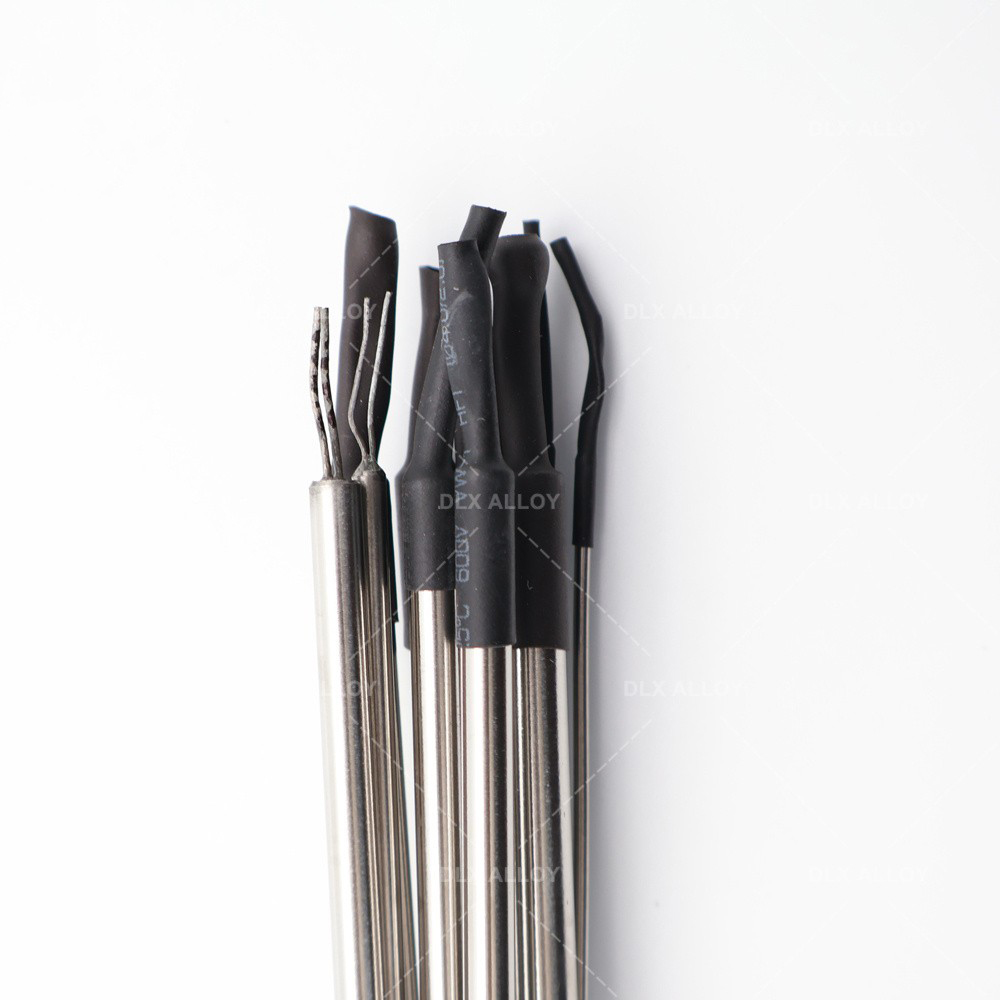

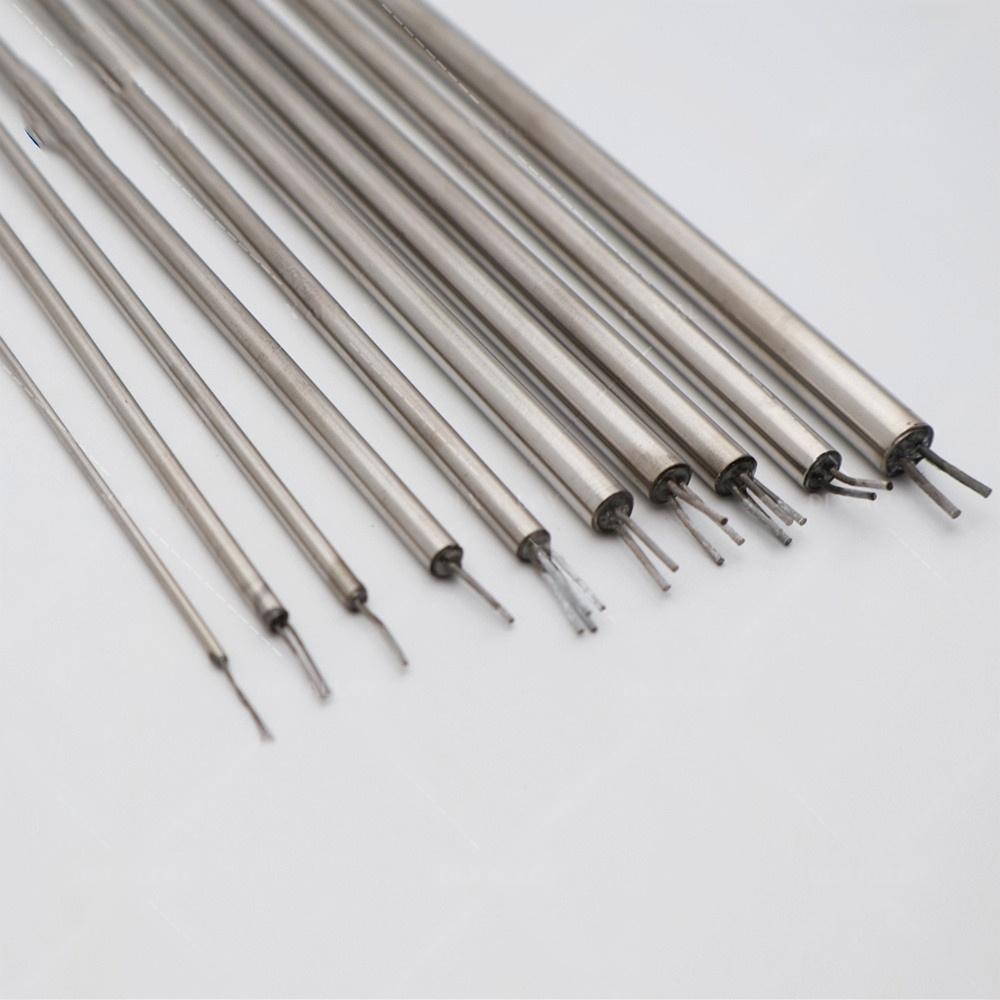

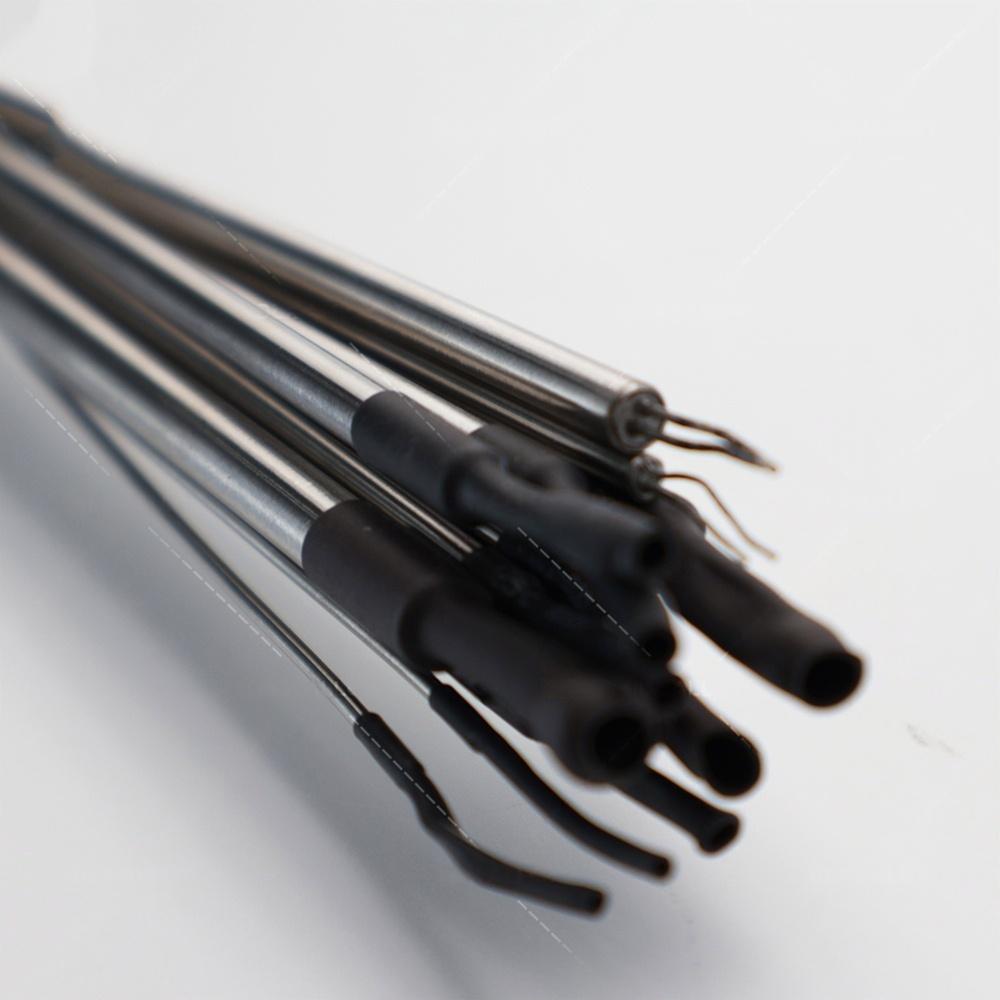

Customsized metal mineral insulated heating cable thermocouple cable type T
Description

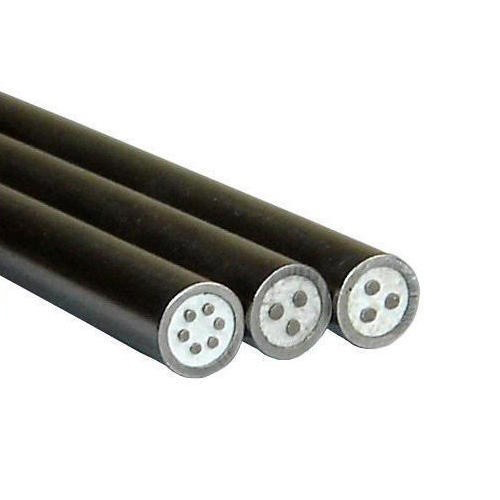

Mineral Insulated Cable (MIC Type T) is a high-performance cable designed for precise and reliable temperature measurement in the range of low to medium temperatures. It uses copper copper nickel alloy as a thermocouple element and uses magnesium oxide as insulation material, which is protected by a seamless copper tube sheath. The Type T cable can operate within a wide temperature range of -200 ° C to 350 ° C, providing fast response and high-precision temperature readings. Due to its sturdy structure and high temperature resistance, Type T cables are very suitable for food processing, refrigeration equipment, low-temperature laboratories, and other applications that require temperature monitoring over a wide temperature range.
Products parameter
Code | Wire Component of the thermocouple | ||
+Positive leg | - Negative Leg | ||
N | Ni-Cr-Si(NP) | Ni-Si-magnesium (NN) | |
K | Ni-Cr(KP) | Ni-Al(Si) (KN) | |
E | Ni-Cr(EP) | Cu-Ni (EN) | |
J | Iron (JP) | Cu-Ni (JN) | |
T | Copper (TP) | Cu-Ni (TN) | |
B | Platinum Rhodium-30% | Platinum Rhodium -6% | |
R | Platinum Rhodium-13% | Platinum | |
S | Platinum Rhodium -10% | Platinum | |
Calibration of thermocouple | Model number of Compensation cable | Alloy wire name of Compensation cable |
S or R | SC or RC | Cu-CuNi |
K | KC | Cu-CuNi |
KX | NiCr-NiSi | |
N | NC | Fe-CuNi |
NX | NiCrSi-NiSiMg | |
E | EX | NiCr-CuNi |
J | JX | Fe-CuNi |
T | TX | Cu-CuNi |
Isulation | PTFE | PFA | TEF | FEP | PVC | FG | Silicone | Quartz Fiber |
Max temp (℃) | 260 | 260 | 200 | 200 | 108 | 400 | 200 | 800 |
Mineral insulated cable Type T is a temperature measurement cable designed for medium to low temperature environments. It uses copper copper nickel alloy as the thermocouple element, with magnesium oxide as the insulation material and a seamless copper tube sheath, forming a system that can withstand harsh environments and accurately measure temperature. Type T cables are suitable for a wide temperature range of -200 ° C to 350 ° C, especially for precision temperature control applications such as food processing, pharmaceutical refrigeration, and low-temperature laboratories.
Core features
Fire resistance performance: can maintain the integrity of the circuit even in the event of a fire, ensuring safety
. Wide temperature range: able to operate stably at extreme low to moderate temperatures.
Anti chemical corrosion: suitable for use in chemical processing environments, resistant to the erosion of various chemical substances.
High precision measurement: Copper nickel alloy provides accurate temperature readings to ensure the accuracy of process control.
Easy to install: The design considers the convenience of industrial installation and simplifies the deployment process.
Long term stability: Inorganic materials ensure stability and durability during long-term use.
application area
Food processing: Control temperature during cooking, baking, and refrigeration to ensure food safety.
Medical refrigeration: used for temperature monitoring during low-temperature storage and transportation of medical products.
Low temperature laboratory: monitors and controls the temperature of the experimental environment in scientific experiments.
Environmental monitoring: measuring atmospheric temperature in climate and environmental research to provide data support for scientific research.
User benefits
Improving safety: The fire resistance performance enhances the safety of industrial applications.
Reduce maintenance costs: Long term stability reduces the need for maintenance and replacement.
Enhanced production efficiency: Accurate temperature control optimizes the production process and improves product qualification rate.
Environmental adaptability: Its resistance to chemical corrosion makes it suitable for various industrial environments.
epilogue
Mineral insulated cable Type T has become a reliable choice for industrial monitoring from low to medium temperatures due to its excellent temperature measurement accuracy and stability. Whether in cold storage for food processing or low-temperature storage in the pharmaceutical industry, Type T cables can provide stable and reliable services, making them a key component in ensuring industrial production safety and efficiency.
Related Q&A
Q: What is the measurement accuracy of Type T mineral insulated cables?
Answer: The Type T cable uses copper nickel alloy as the thermocouple element, providing accurate temperature measurement and suitable for various precision industrial environments.
Q: What are the specific advantages of the fire resistance performance of Type T cables?
Answer: The fire resistance of Type T cables means that they can maintain the integrity of the circuit even in the event of a fire, without causing fire or aiding combustion, ensuring continuous power supply and safety in emergency situations.
Q: Under what circumstances should Type T mineral insulated cables be chosen?
Answer: When precise temperature measurements are required within a wide temperature range of -200 ° C to 350 ° C, especially in environments such as food processing, pharmaceutical refrigeration, or low-temperature scientific research, Type T cables are an ideal choice.
