Product name: MI Cable Size: Custom Size Customized support:OEM, ODM, OBM, Software reengineering Standard:IEC 584, ASTM Application:Temperature Measuring Insulator:99.6% high purity MgO Temperature range:0~1100(℃)
0
Products Description

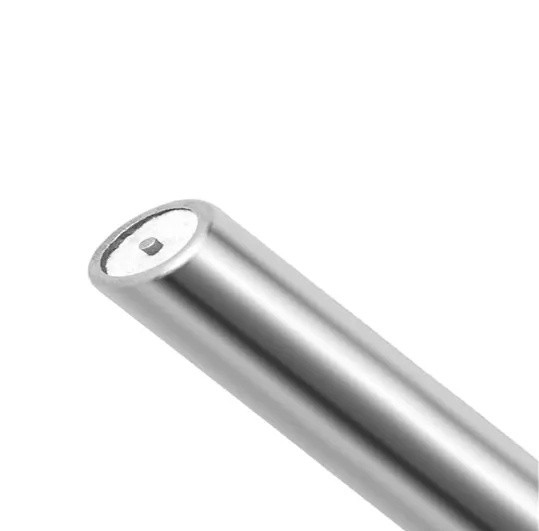

In the power system, temperature monitoring and control are crucial for ensuring equipment safety and optimizing operational efficiency. Mineral insulated cables have become an ideal choice for temperature management in the power industry due to their excellent high-temperature resistance, long-term stability, and resistance to chemical corrosion. MIC cables are made of seamless metal sheaths and magnesium oxide insulation materials, ensuring reliability and durability in extreme temperature and high voltage environments.
In the power system, mineral insulated cables are widely used in various links, including power plants, substations, and transmission lines. Its main function is to monitor the temperature and thermal management of power equipment to ensure the safe operation and efficient performance of the power system. The high temperature resistance of this cable enables it to withstand the high temperature environment of power equipment, and its structural design can effectively prevent electromagnetic interference and corrosion from the external environment. By monitoring the temperature changes of power equipment in real-time, power engineers can promptly identify potential faults or abnormal situations, and take corresponding measures to repair or adjust, thereby ensuring the stability and reliability of the power system. The application of mineral insulated cables in the power system provides important technical support for the power industry, and also provides reliable power supply guarantee for people's lives and production.
Specification
Insulator: 99.6% high purity MgO

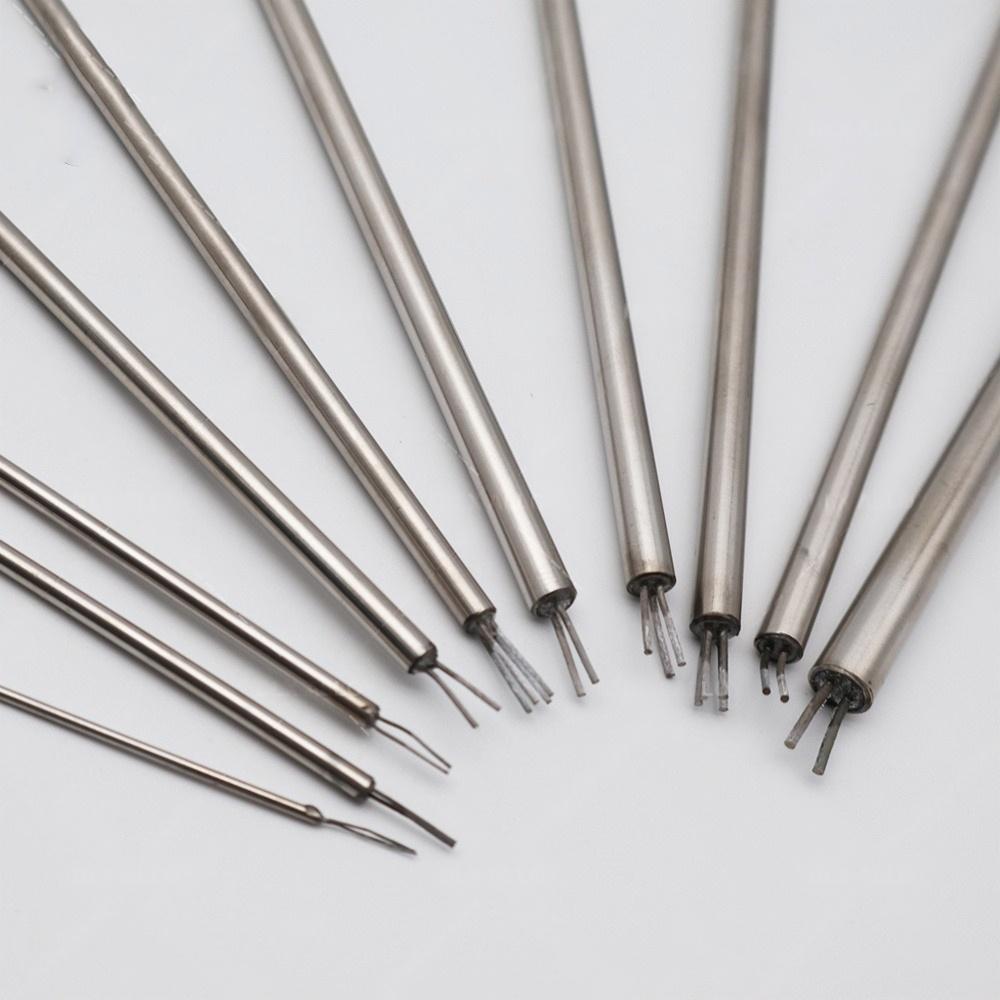

Core number: 2, 4, 6
Sheath material: SS321(SS304), SS316, SS310, INCL600, Nicrobell

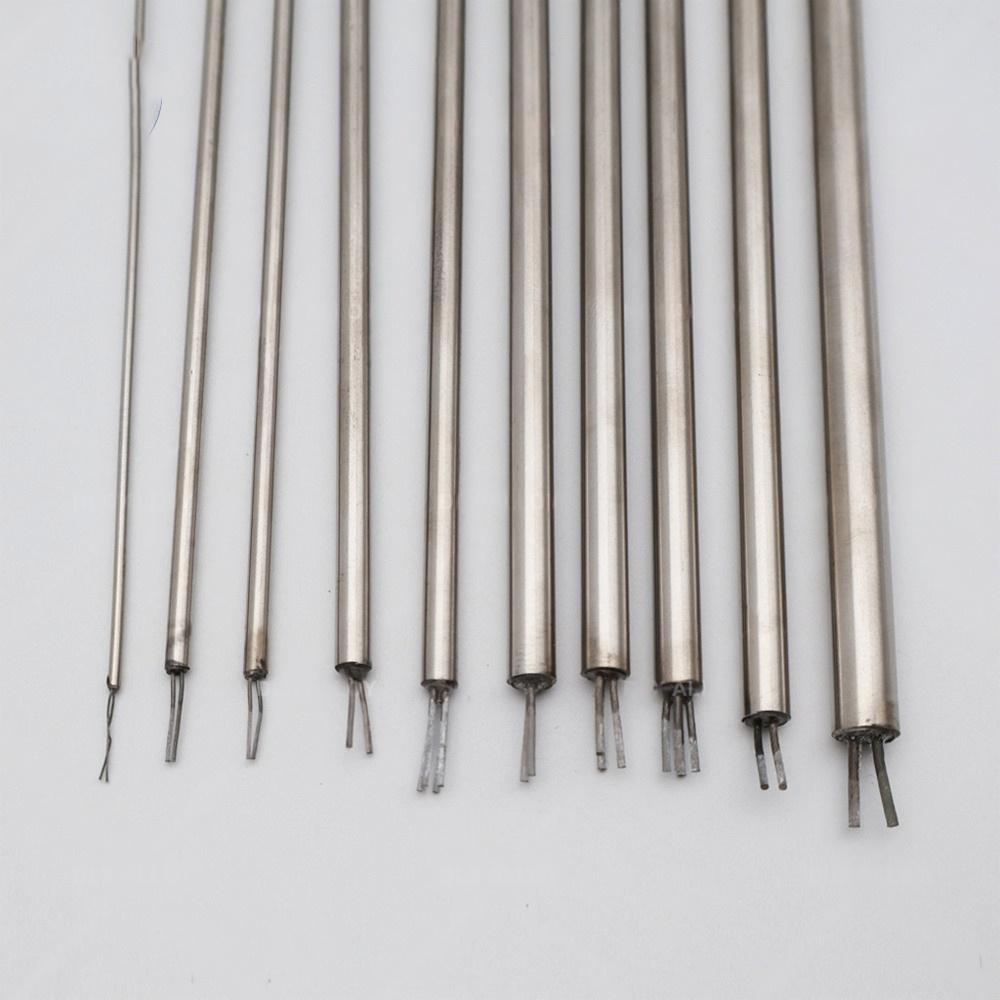

Dia (mm): from 0.25mm to 12.7mm
Application: connecting with thermocouple and instrument machine
Place of Origin: Jiangsu, China (Mainland)
MOQ: 100m
Certificate: ISO, CQC
Code | Wire Component of the thermocouple | ||
+Positive leg | - Negative Leg | ||
N | Ni-Cr-Si(NP) | Ni-Si-magnesium (NN) | |
K | Ni-Cr(KP) | Ni-Al(Si) (KN) | |
E | Ni-Cr(EP) | Cu-Ni (EN) | |
J | Iron (JP) | Cu-Ni (JN) | |
T | Copper (TP) | Cu-Ni (TN) | |
B | Platinum Rhodium-30% | Platinum Rhodium -6% | |
R | Platinum Rhodium-13% | Platinum | |
S | Platinum Rhodium -10% | Platinum | |
Material | Type | Grade | Working temperature (deg) | Tolerance | Standard | |
Long Term | Short Term | |||||
NiCr-NiSi | K | 1 | -40~1100 | -40~1300 | ±1.5 deg | GB/T 2614-1998 |
2 | ±2.5 deg | |||||
NiCr-CuNi | E | 1 | -40~800 | -40~900 | ±1.5 deg | GB/T 4993-1998 |
2 | ±2.5 deg | |||||
Fe-Constantan | J | 1 | -40~600 | -40~800 | ±1.5 deg | GB/T 4994-1998 |
2 | ±2.5 deg | |||||
Cu-CuNi | T | 1 | -200~300 | -200~400 | ±0.5 deg | GB/T 2903-1998 |
For more details, pls directly contact us.
Core features
Fire resistance performance: Maintain circuit integrity in the event of a fire, ensuring safe power supply without interruption.
High temperature tolerance: suitable for working environments up to 1000 ° C, meeting the high temperature monitoring needs in power systems.
High current carrying capacity: Compared to other cables of the same cross-section, MIC cables have a higher current carrying capacity and are suitable for high-power transmission.
Anti chemical corrosion: Resists the erosion of common chemical substances in the power system and extends its service life.
Long term stability: Inorganic materials ensure stability during long-term operation and reduce maintenance costs.
Non toxic: It does not produce harmful gases at high temperatures, ensuring the safety of the environment and personnel.
application area
Power plant boiler monitoring: Real time monitoring of boiler temperature to prevent overheating and equipment damage.
Transformer and motor temperature control: Ensure that the transformer and motor operate at the optimal temperature, extending the lifespan of the equipment.
Power grid environmental monitoring: Monitor the temperature of the surrounding environment of power facilities to ensure compliance with safety standards.
Hot spot detection of cables and joints: timely detection and handling of hot spot issues in the power grid.
User benefits
Improve equipment safety: prevent equipment overheating and malfunctions through precise temperature monitoring.
Enhance system stability: fire resistance and chemical corrosion resistance to ensure the stable operation of the power system.
Reduce maintenance costs: Long term stability reduces the frequency of maintenance and replacement.
epilogue
Mineral insulated cables are indispensable partners in the power system, providing strong support for power production and transmission due to their high temperature resistance, stability, and safety. Choose MIC cables to bring a reliable, safe, and efficient temperature management solution to your power system.
Related Q&A
Q: What are the main advantages of mineral insulated cables in power systems?
Answer: The main advantages of mineral insulated cables include high temperature resistance, fire resistance, chemical corrosion resistance, long-term stability, and high current carrying capacity, which make them very suitable for the harsh environment of power systems.
Q: How to ensure the long-term stability of mineral insulated cables in the power system?
Answer: By using high-quality seamless metal sheaths and magnesium oxide insulation materials, mineral insulated cables can maintain long-term stability in the power system while reducing the need for maintenance and replacement.
Q: Are mineral insulated cables suitable for all types of power environments?
Answer: Yes, mineral insulated cables are suitable for various power environments, including power plants, substations, power grid facilities, and high-voltage transmission lines, due to their high temperature resistance, chemical corrosion resistance, and halogen-free and non-toxic properties.
