Product name: Thermocouple Extension Wire Size: Customized Size Conductor:nice,nisi Insulation:XLPE PE PVC Core:1/2/3/4/5 Cores Usage:Temperature Testing
0
Products Description

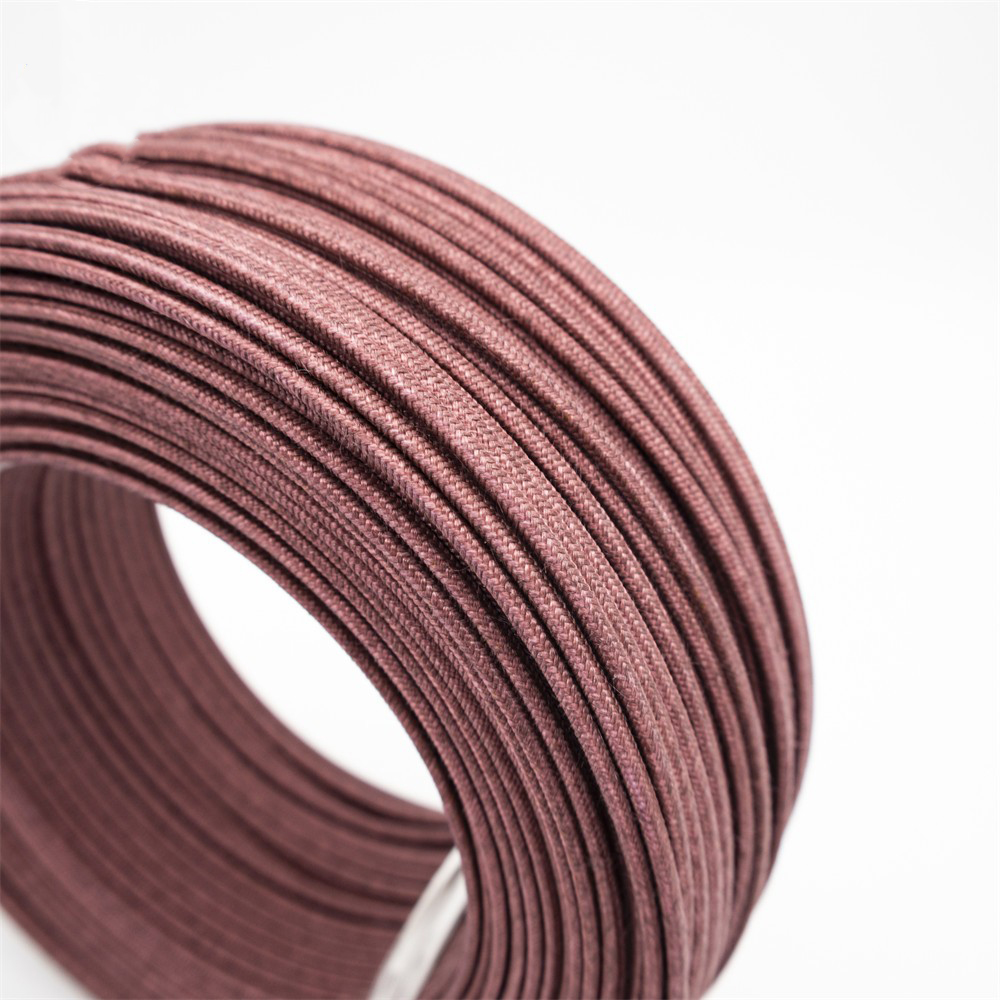

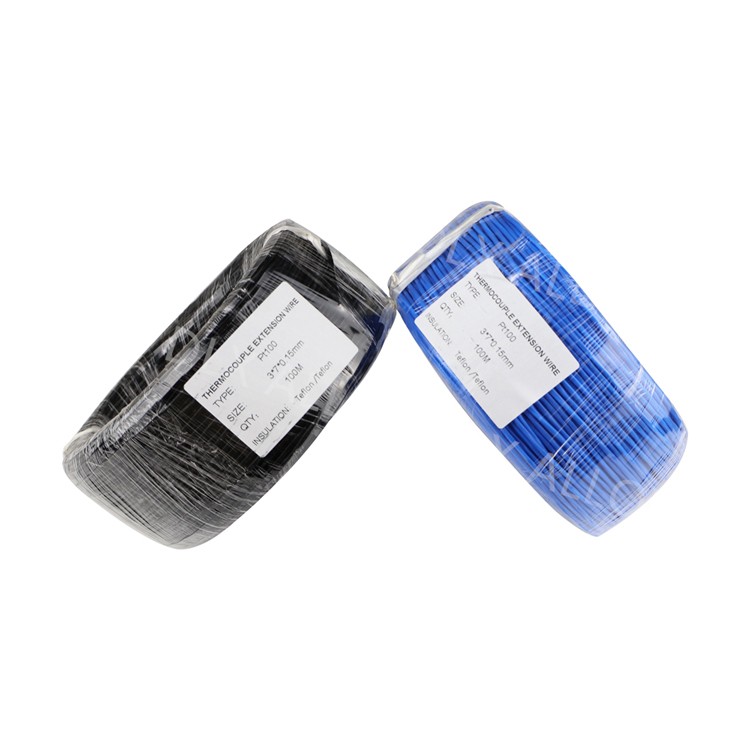

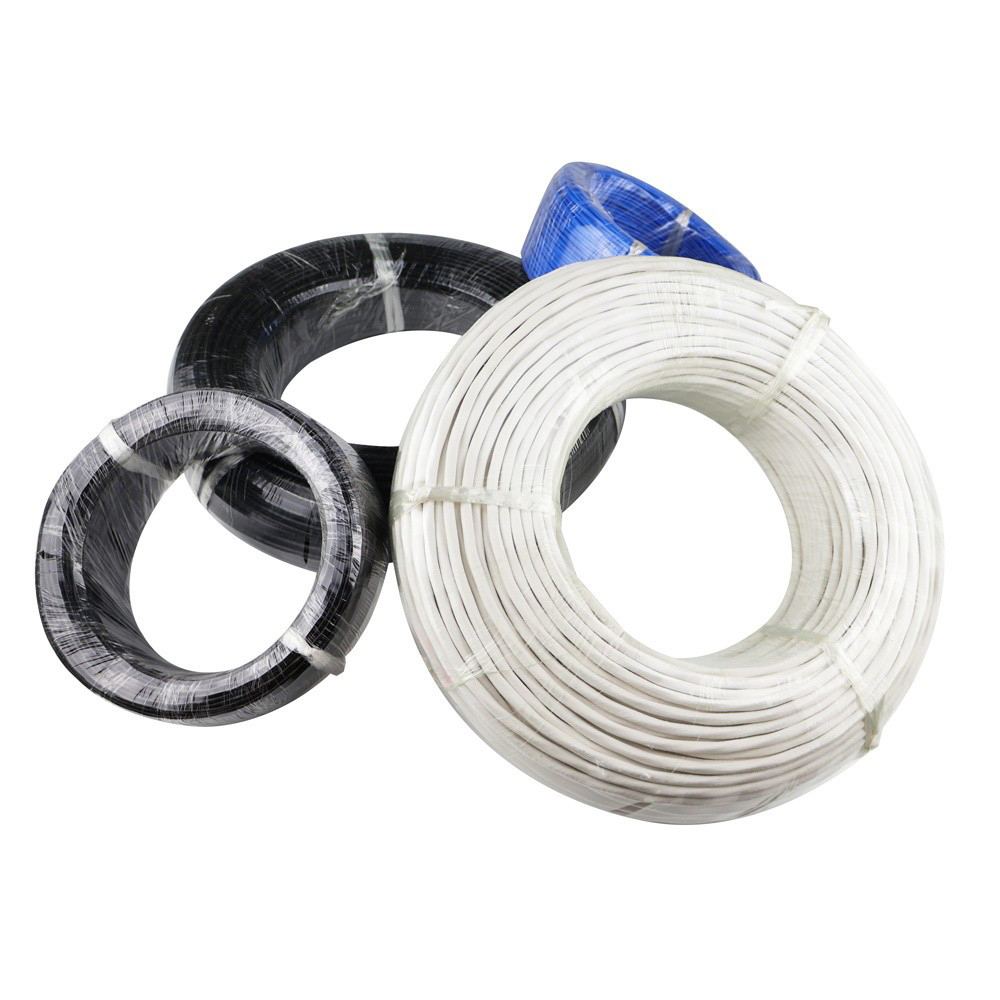

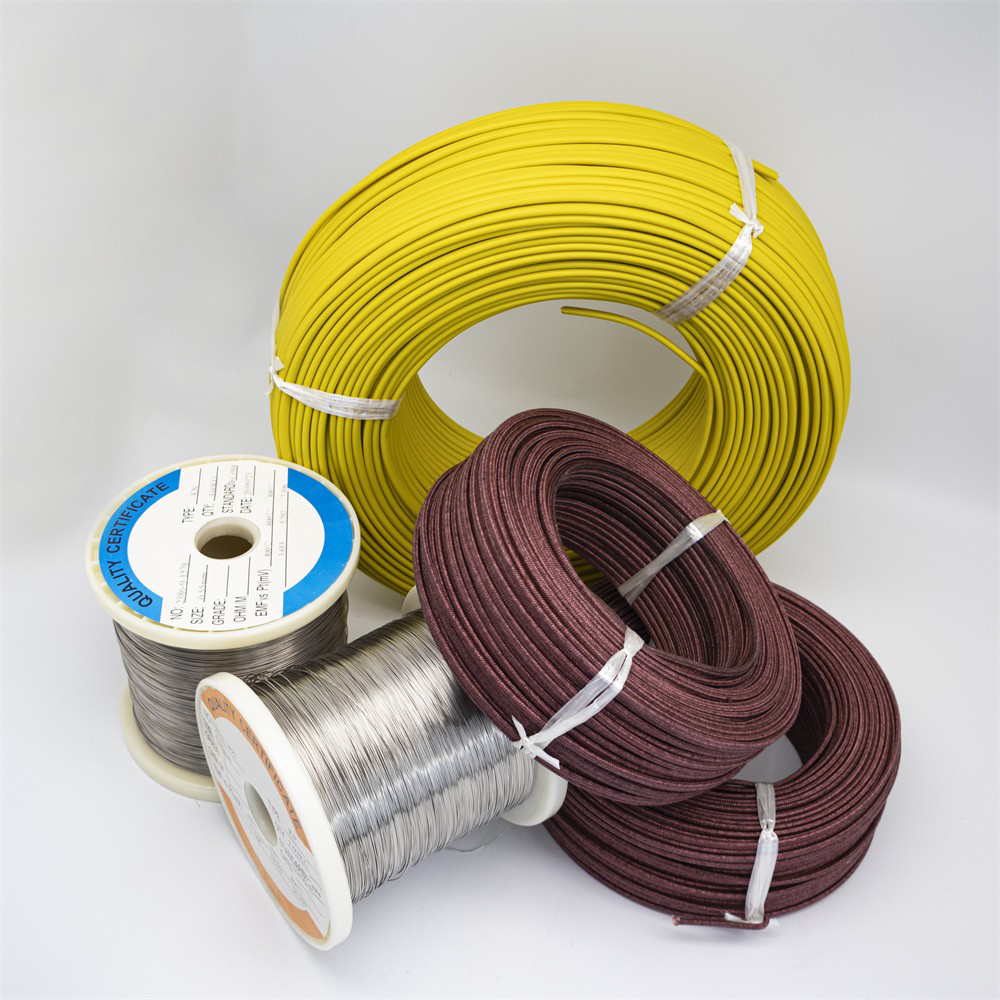

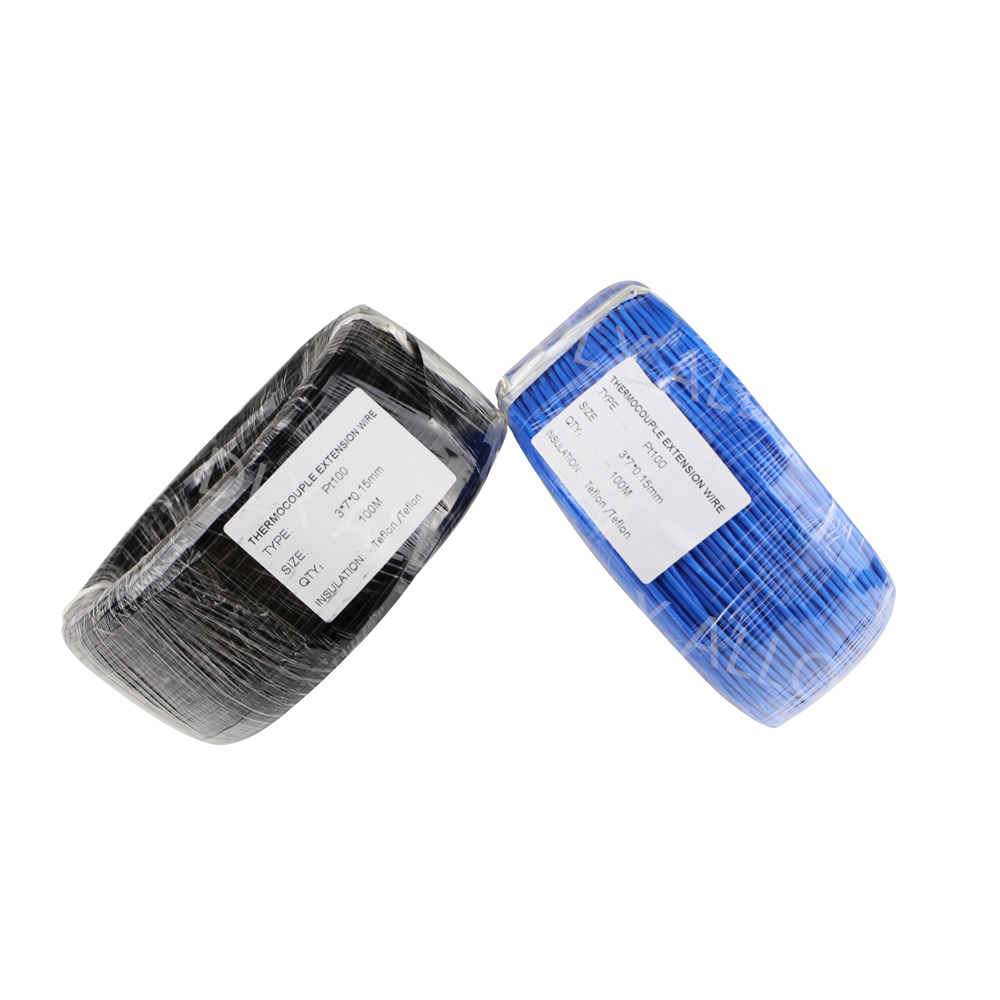

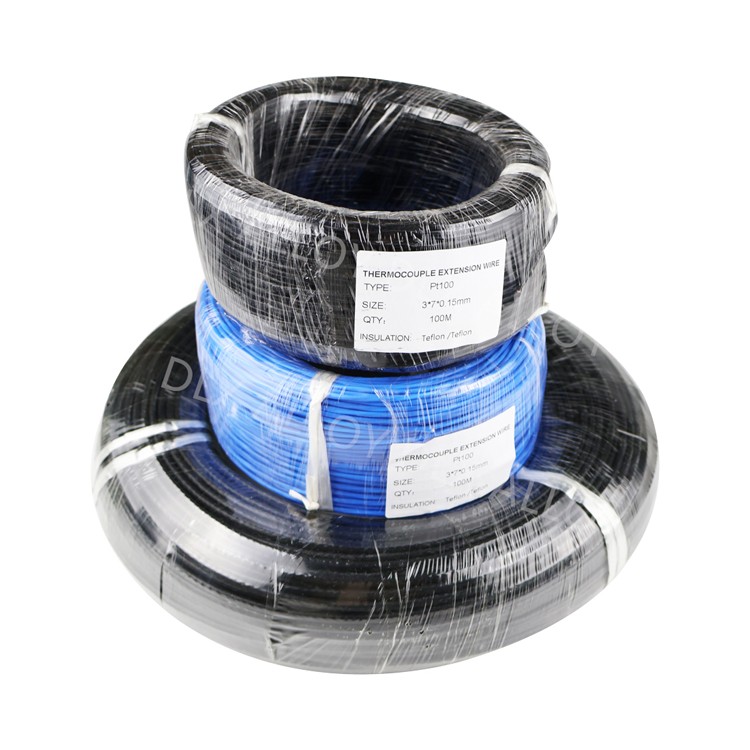

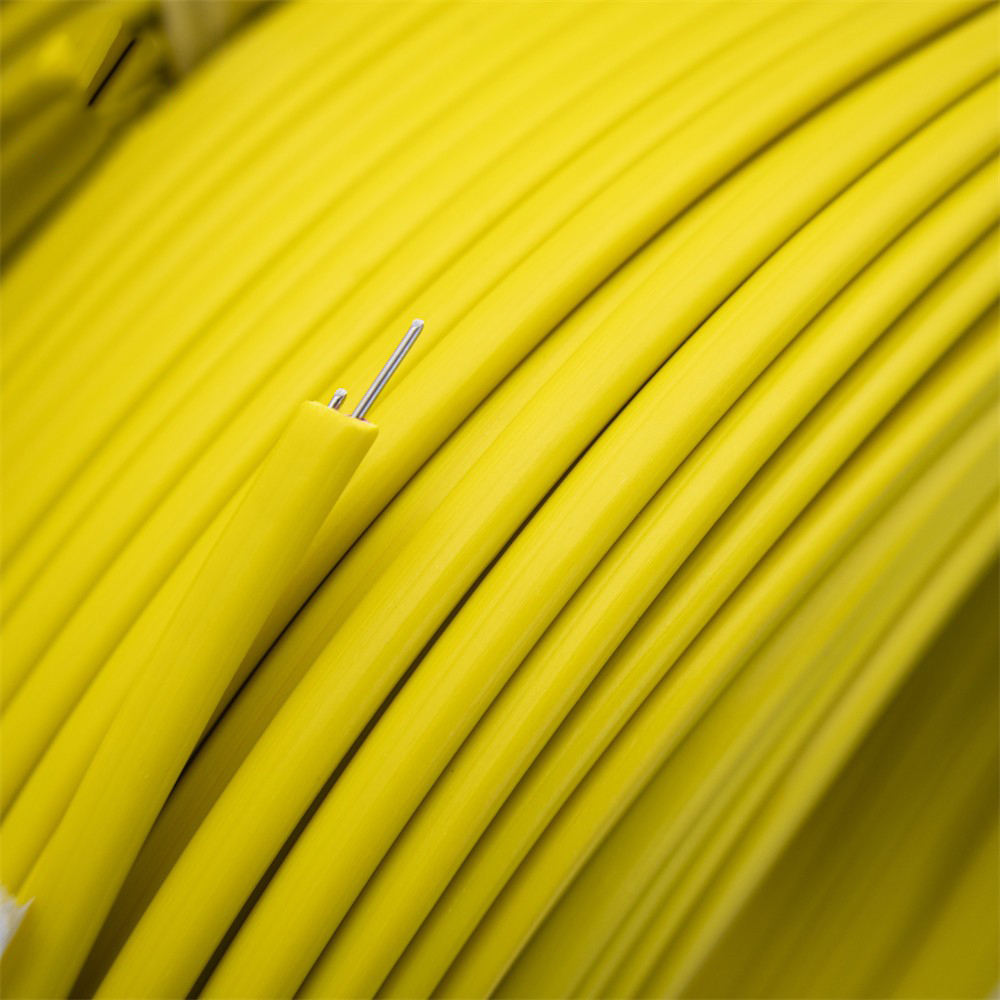

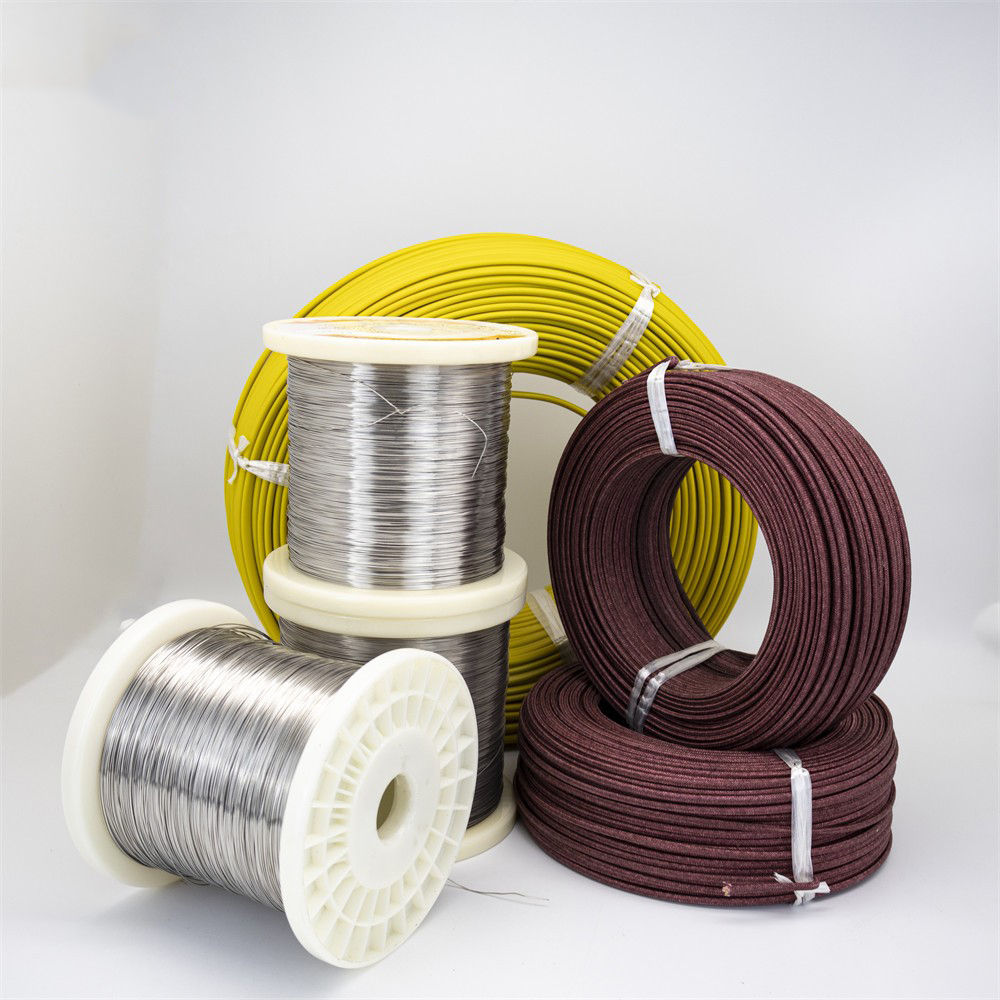

Type K Thermocouple Extension Wire
Description
Name: Shield thermocouple cable J type thermocouple compensation wire
Model: KPX KNX
Structure
Conductor: Positive Iron Negative: constantan

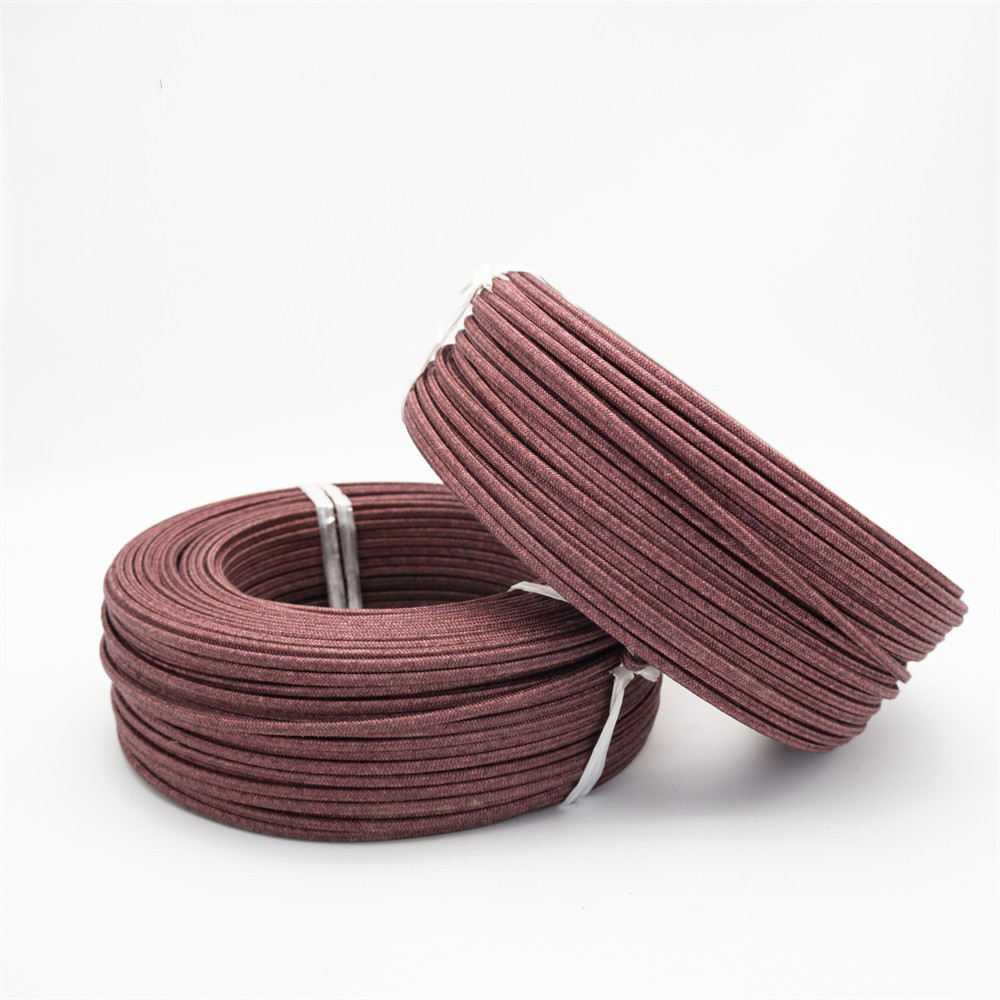

Insulation: fiberglass
Jacket: Fiberglass
Shied: Optional
Using for: K type thermocouple
Code | Wire Component of the thermocouple | ||
+Positive leg | - Negative Leg | ||
N | Ni-Cr-Si(NP) | Ni-Si-magnesium (NN) | |
K | Ni-Cr(KP) | Ni-Al(Si) (KN) | |
E | Ni-Cr(EP) | Cu-Ni (EN) | |
J | Iron (JP) | Cu-Ni (JN) | |
T | Copper (TP) | Cu-Ni (TN) | |
B | Platinum Rhodium-30% | Platinum Rhodium -6% | |
R | Platinum Rhodium-13% | Platinum | |
S | Platinum Rhodium -10% | Platinum | |
Calibration of thermocouple | Model number of Compensation cable | Alloy wire name of Compensation cable |
S or R | SC or RC | Cu-CuNi |
K | KC | Cu-CuNi |
KX | NiCr-NiSi | |
N | NC | Fe-CuNi |
NX | NiCrSi-NiSiMg | |
E | EX | NiCr-CuNi |
J | JX | Fe-CuNi |
T | TX | Cu-CuNi |
Isulation | PTFE | PFA | TEF | FEP | PVC | FG | Silicone | Quartz Fiber |
Max temp (℃) | 260 | 260 | 200 | 200 | 108 | 400 | 200 | 800 |
