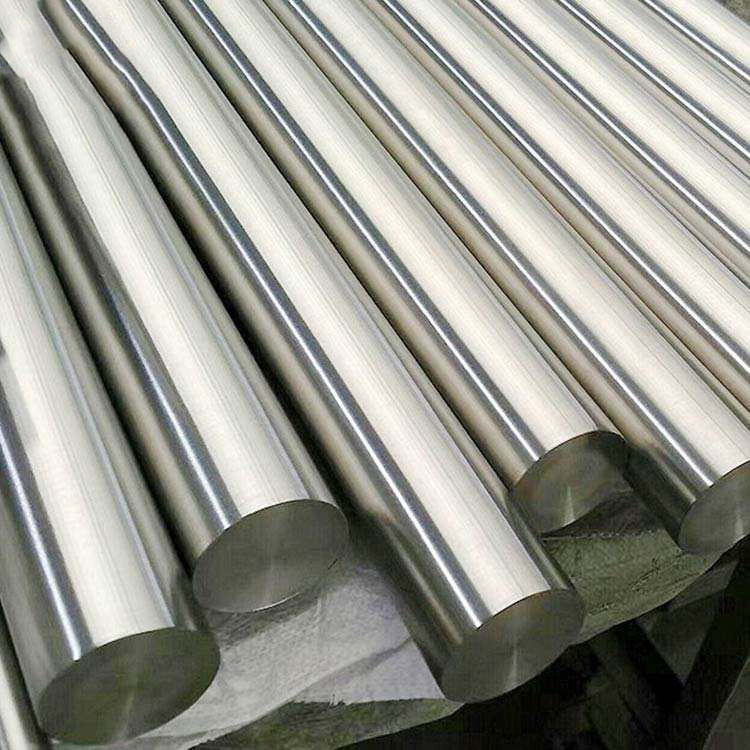

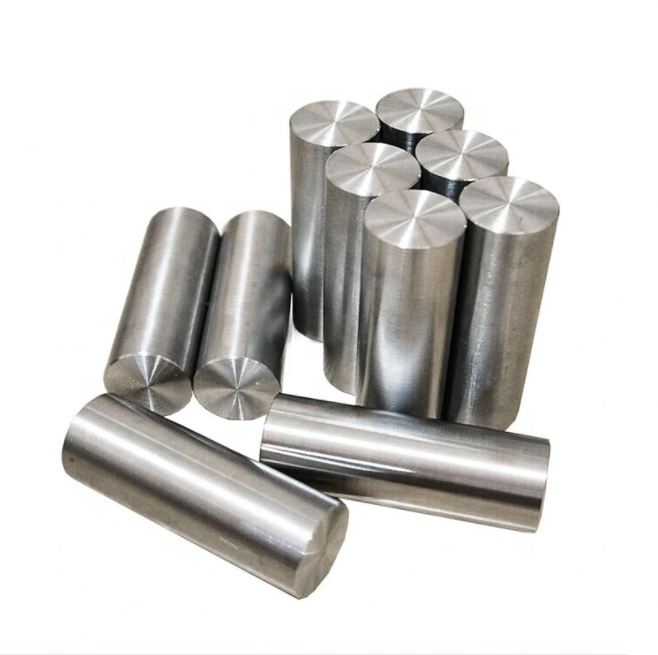

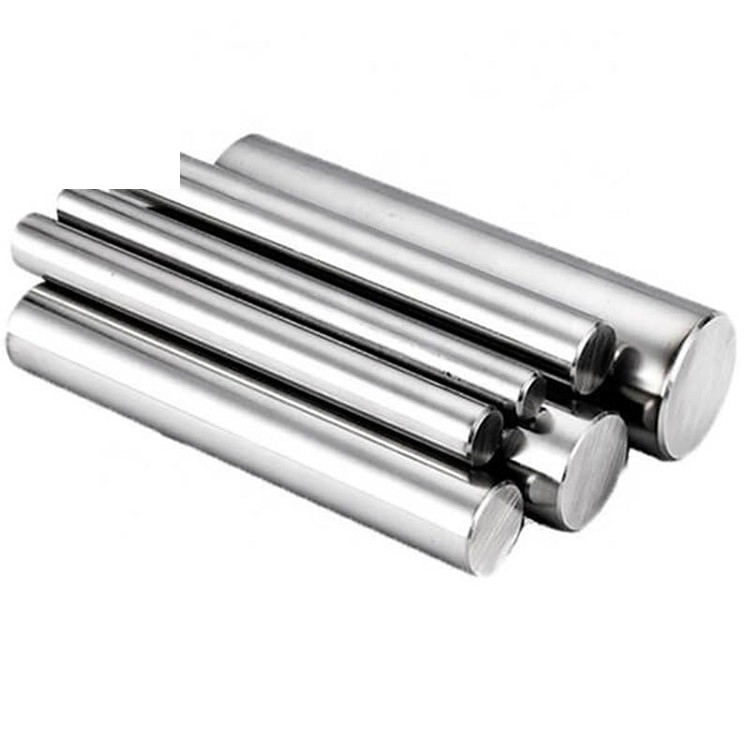

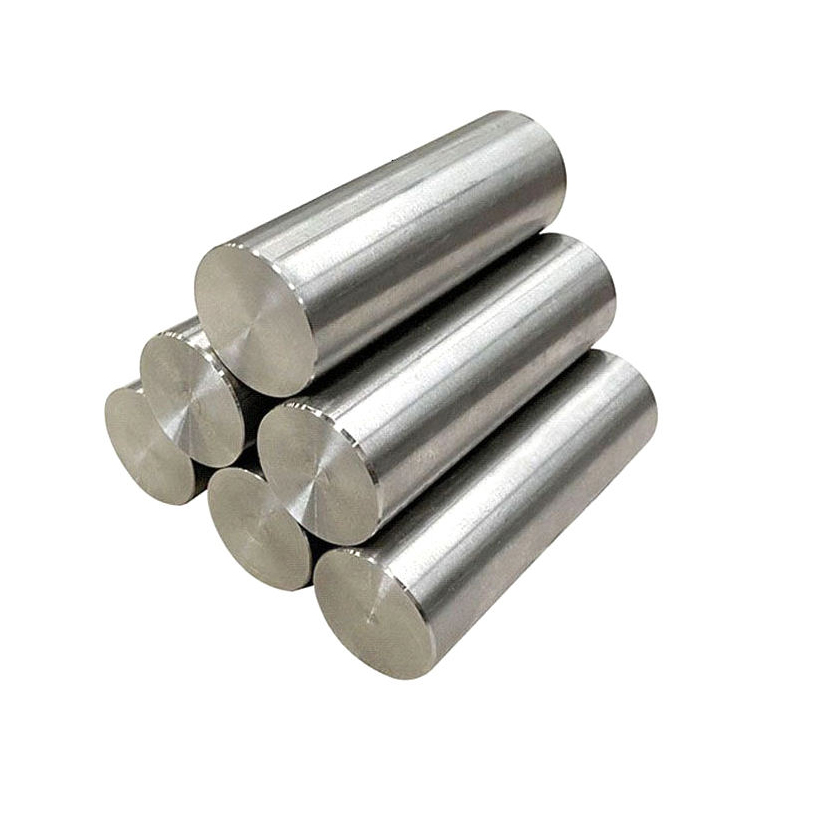

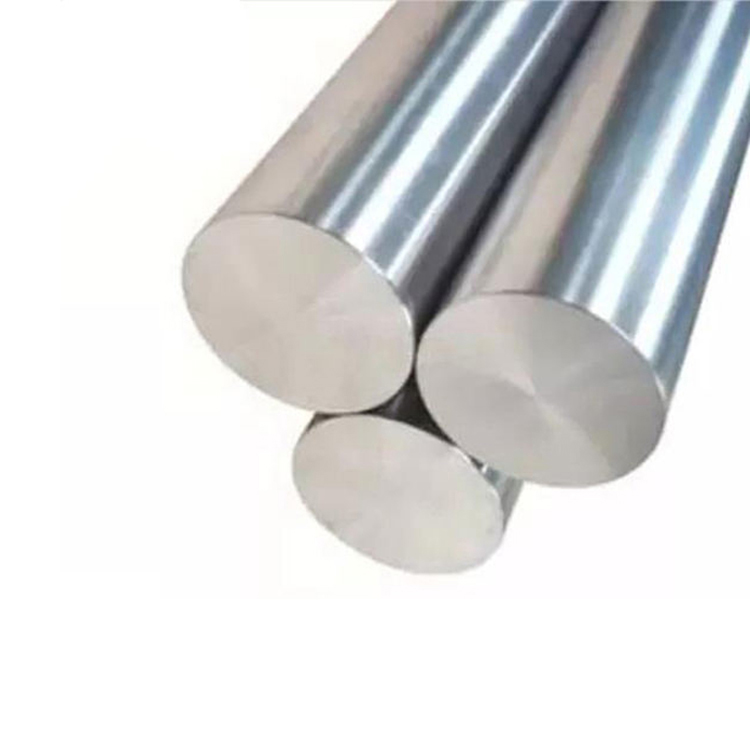

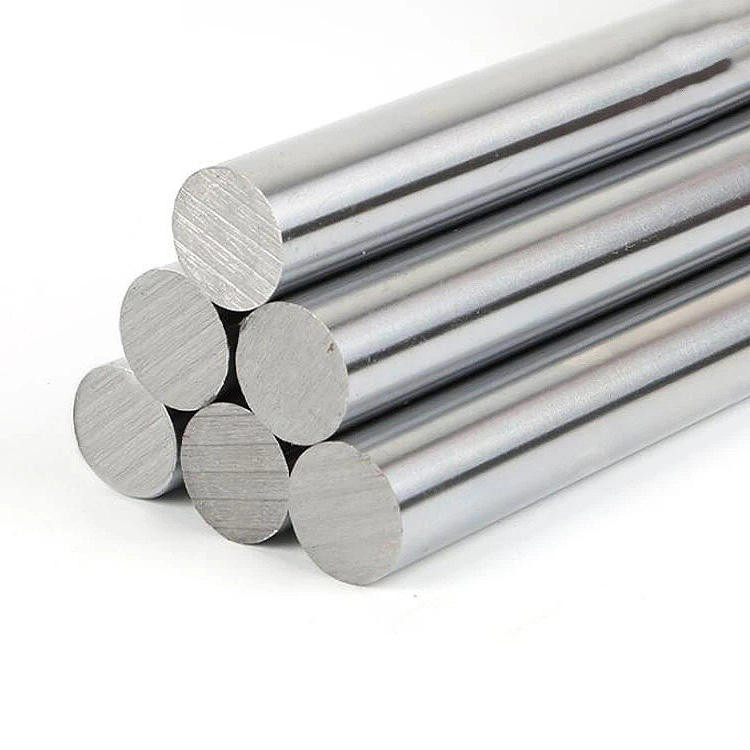

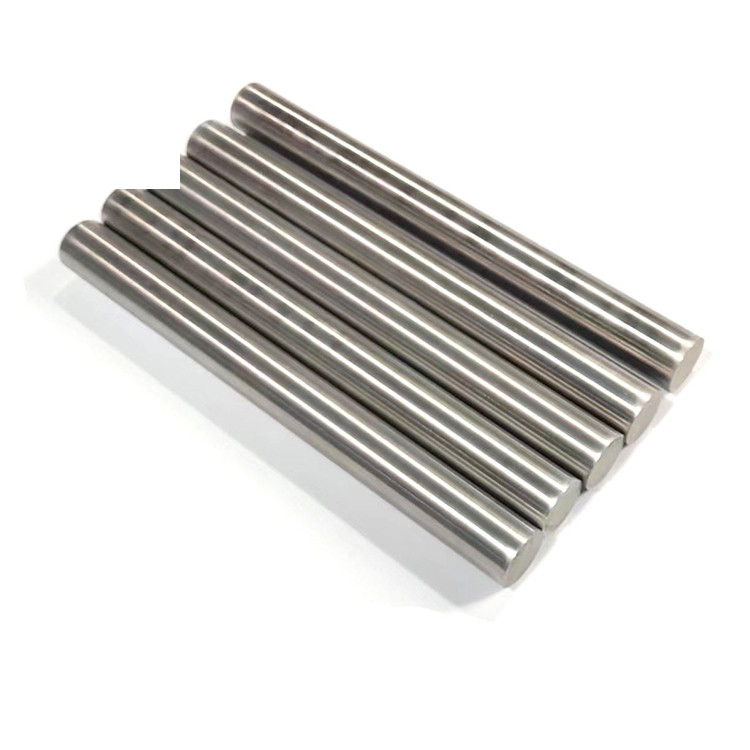

Productname：pure nickel bar Grade：pure nickel Ni (Min)：more than 99.6% Size：customzied size Resistance (μΩ.m): stable Ultimate Strength (≥ MPa)：450-830 Elongation (≥ %)：43% Density：8.9g/cm³
0
Products Description
Nickel 200 is commercially pure wrought nickel. It is highly resistant to various reducing chemicals. It can also be used in oxidizing conditions that cause the formation of a passive oxide film, for instance its unexcelled resistance to caustic alkalis. Nickel 200 is limited to service at temperatures below 315ºC, because at higher temperatures it suffers from graphitization which results in severely compromised properties. In that circumstance, Nickel 201 is used instead. It has a high Curietemperature and good magnetostrictive properties. Its thermal and electrical conductivities are higher than nickel alloys.
Nickel 201
is the low-carbon version of Nickel 200. Because of its low carbon content, Nickel 201 is not subject to embrittlement by intergranularly precipitated carbon or graphite when exposed to temperatures of 315 to 760ºC for prolonged time if carbonaceous materials are not in contact with it. Therefore, it is a substitute for Nickel 200 in Applications above 315ºC. However it does suffer from intergranular embrittlement by sulfur compounds at temperatures above 315ºC. Sodium peroxide can be used to change them to sulfates to counteract their effect.
Features:
(1)Low Density and High Specification Strength
(2)Excellent Corrosion Resistance
(3)Good resistance to effect of heat
(4)Excellent Bearing to cryogenic property
(5)Nonmagnetic and Non-toxic
Size Range | |
Wire | dia 0.025-10mm |
Ribbon | (0.05-0.2)*(0.5-6.0)mm |
Strip | (0.05-0.5)*(5-200)mm |
Plate | custom made |
Density | 8.89 g/cm3 |
Tensile Strength ksi (min) | 462 |
Yield Strength 0.2% ksi (min) | 148 |
Elongation δ5 (%) | 40 |
Melting point | 1435-1446°C |
Specification
Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
N4 | 99.9 | ≤0.015 | ≤0.03 | ≤0.002 | ≤0.01 | ≤0.01 | ≤0.001 | ≤0.001 | ≤0.04 |
N6 | 99.5 | 0.10 | 0.10 | 0.05 | 0.10 | 0.10 | 0.005 | 0.002 | 0.10 |
Ni201 | ≥99.9 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / | ≤0.40 |
Ni200 | ≥99.6 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.15 | / | ≤0.01 | / | ≤0.40 |
For more details, pls directly contact us.
