Products Description

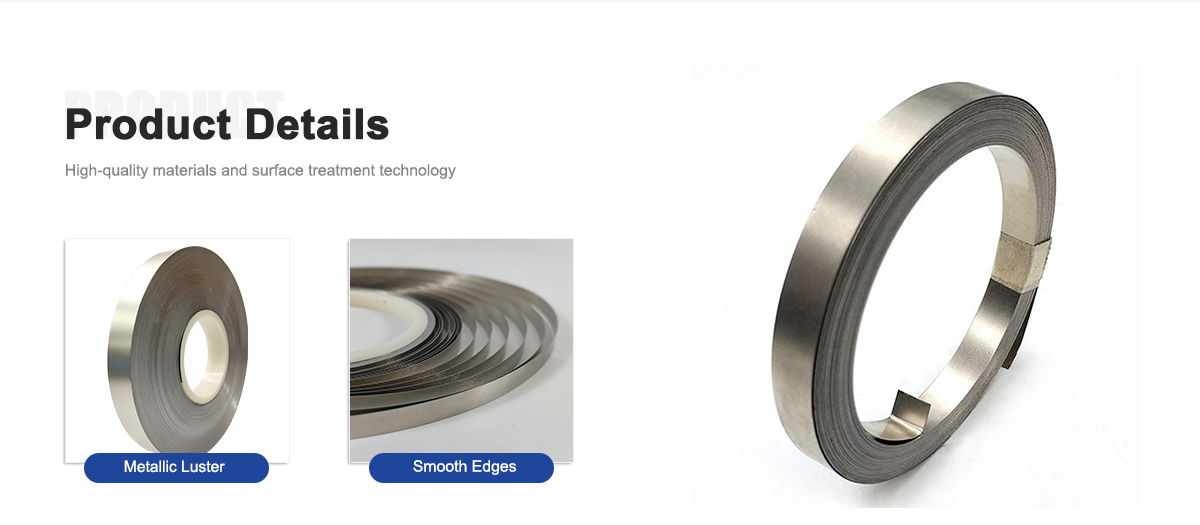

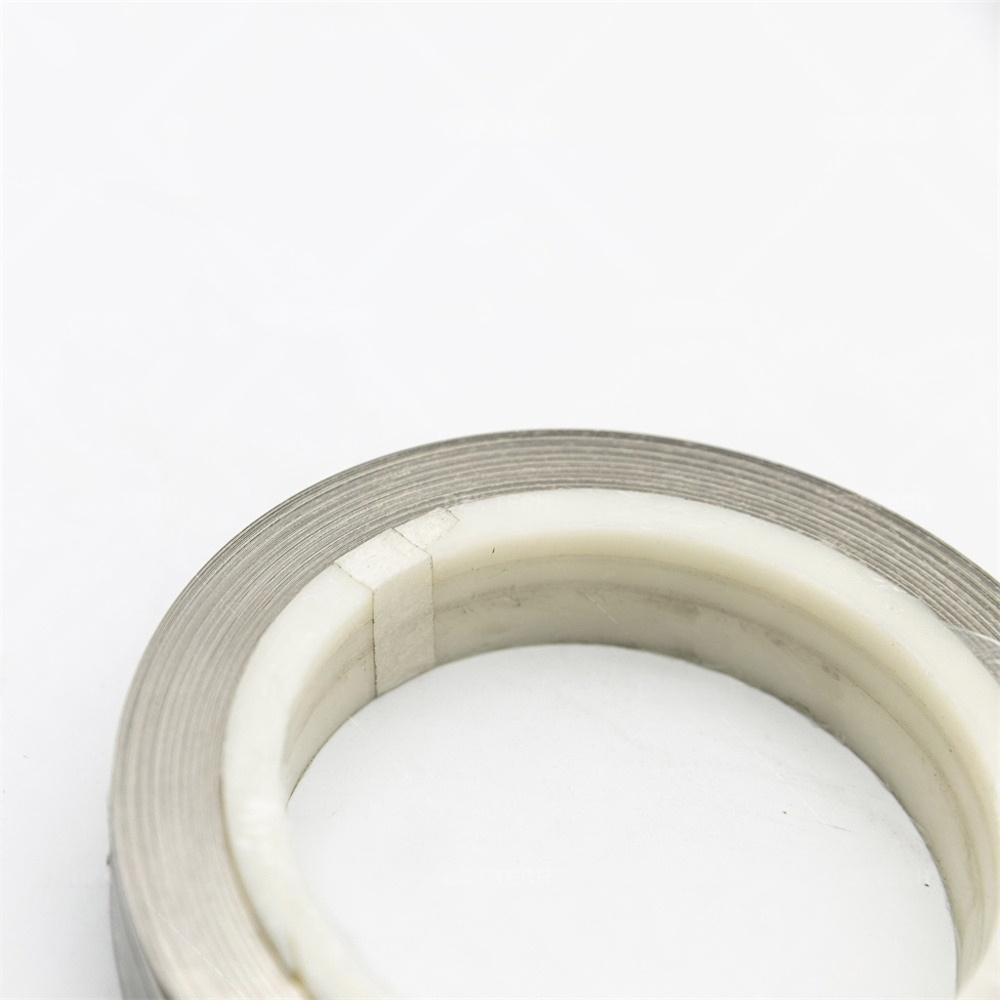

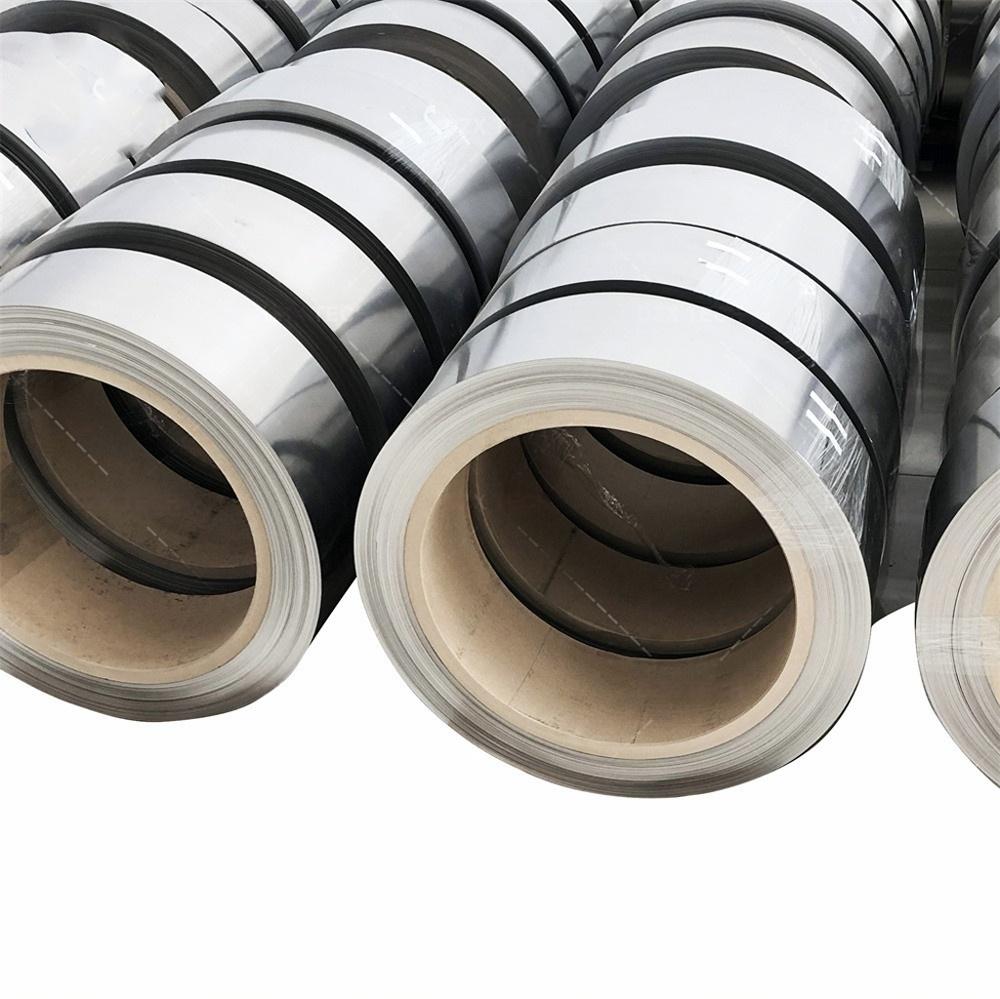

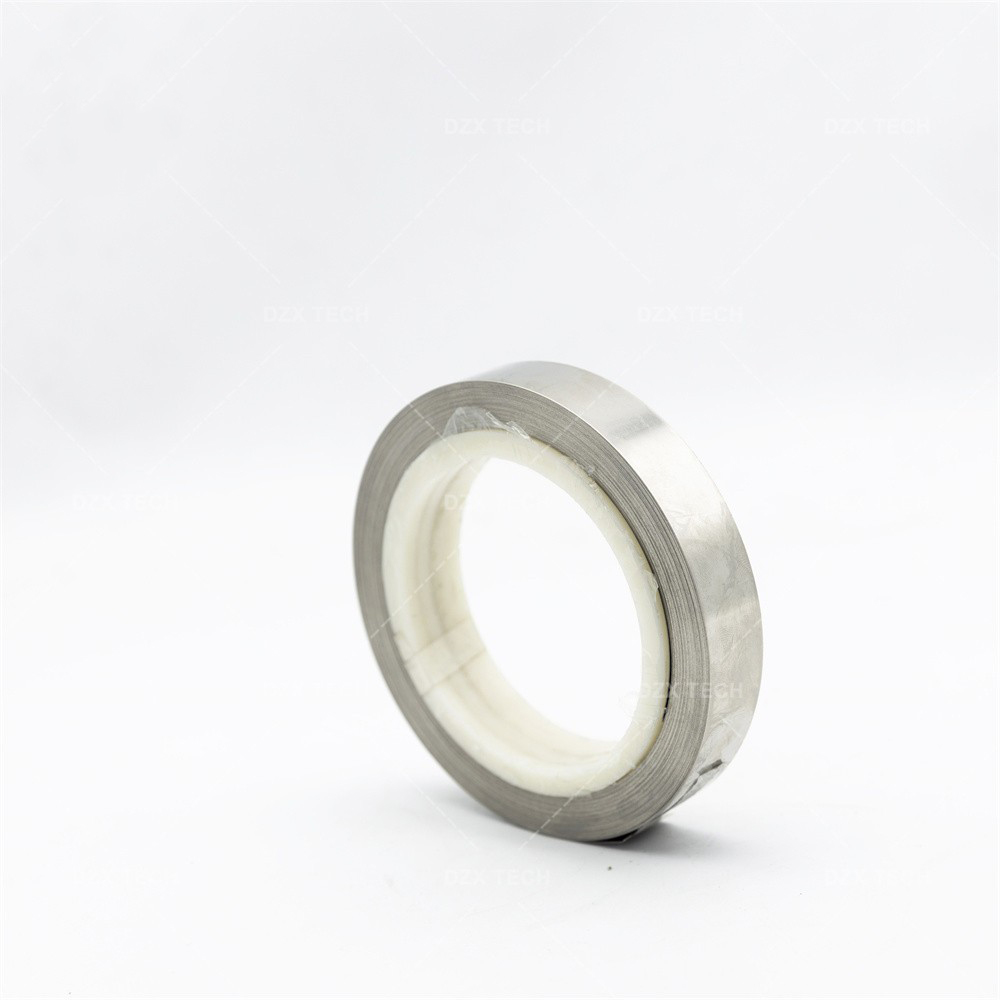

Nichrome NiCr 80/20 Heating Resistance Foil Strip For Loadbank Resistor
Nickel chromium strip is an important resistance alloy material, with commonly used grades including NiCr80/20 and NiCr70/30. Among them, NiCr80/20 represents the proportion of nickel and chromium in the alloy as 80% and 20%, respectively, while NiCr70/30 represents the proportion of nickel and chromium as 70% and 30%. These nickel chromium strips typically have excellent high-temperature resistance and stable resistance characteristics. Typical parameters include widths ranging from 0.2 millimeters to 5 millimeters and thicknesses ranging from 0.02 millimeters to 0.5 millimeters, which can be customized according to specific needs. These strips are widely used in industrial heating equipment, electric heaters, thermocouples, and other applications that require stable resistance, providing reliable solutions for various heating and temperature measurement needs.
Parameter
Nichrome series: Cr10Ni90, Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni30, Cr20Ni35
Performance / material | Cr10Ni90 | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
Composition | Ni | 90 | Rest | Rest | 55.0~61.0 | 34.0~37.0 | 30.0~34.0 |
Cr | 10 | 20.0~23.0 | 28.0~31.0 | 15.0~18.0 | 18.0~21.0 | 18.0~21.0 | |
Fe | -- | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
Maximum temperature℃ | 1300 | 1200 | 1250 | 1150 | 1100 | 1100 | |
Meltiing point ℃ | 1400 | 1400 | 1380 | 1390 | 1390 | 1390 | |
Density g/cm3 | 8.7 | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
Resistivity at 20℃ (μΩ·m) | -- | 1.09±0.05 | 1.18±0.05 | 1.12±0.05 | 1.00±0.05 | 1.04±0.05 | |
Elongation at rupture | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | |
Specific heat (J/g.℃) | -- | 0.44 | 0.461 | 0.494 | 0.5 | 0.5 | |
Thermal conductivity (KJ/m.h℃) | -- | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
Coefficient of lines expansion a×10-6/(20~1000℃) | -- | 18 | 17 | 17 | 19 | 19 | |
Micrographic structure | -- | Austenite | Austenite | Austenite | Austenite | Austenite | |
Magnetic properties | -- | Non-magnetic | Non-magnetic | Non-magnetic | Weak magnetic | Weak magnetic | |
Shape | Size (mm) |
Wire | 0.05-7.5 |
Rod | 8-50 |
Ribbon | (0.05-0.35)*(0.5-6.0) |
Strip | (0.5-2.5)*(5-40) |
For more details, pls directly contact us.
Feature
Good high-temperature resistance: able to maintain stable performance in high-temperature environments and not easily oxidize or embrittle.
Stable resistance characteristics: The resistance value changes less with temperature and can provide stable resistance output.
Good processing performance: easy to cut, bend, and weld, suitable for various processing needs.
Long lifespan and corrosion resistance: With a long service life, it is not easily affected by chemical corrosion.
Application
Industrial heating equipment: used for manufacturing heating elements, furnace heaters, hot air dryers and other industrial heating equipment.
Electric heater: Used as a heating element in household appliances such as electric kettles, electric heating tubes, and electric blankets.
Temperature sensor: used for manufacturing temperature measurement equipment such as thermocouples and resistance thermometers.
Q&A
Q: What is the high temperature tolerance of nickel chromium strips?
Answer: Nickel chromium strip has excellent high-temperature resistance and can work stably for a long time in high temperature environments above 1000 degrees Celsius.
Q: What is the role of nickel chromium strips in heating equipment?
Answer: Nickel chromium strips can serve as heating elements, converting electrical energy into thermal energy for heating objects or air.
Q: Does the resistance value of nickel chromium strip change with temperature?
Answer: The resistance value of nickel chromium strip varies less with temperature and has stable resistance characteristics. It is widely used in temperature measurement and control.
