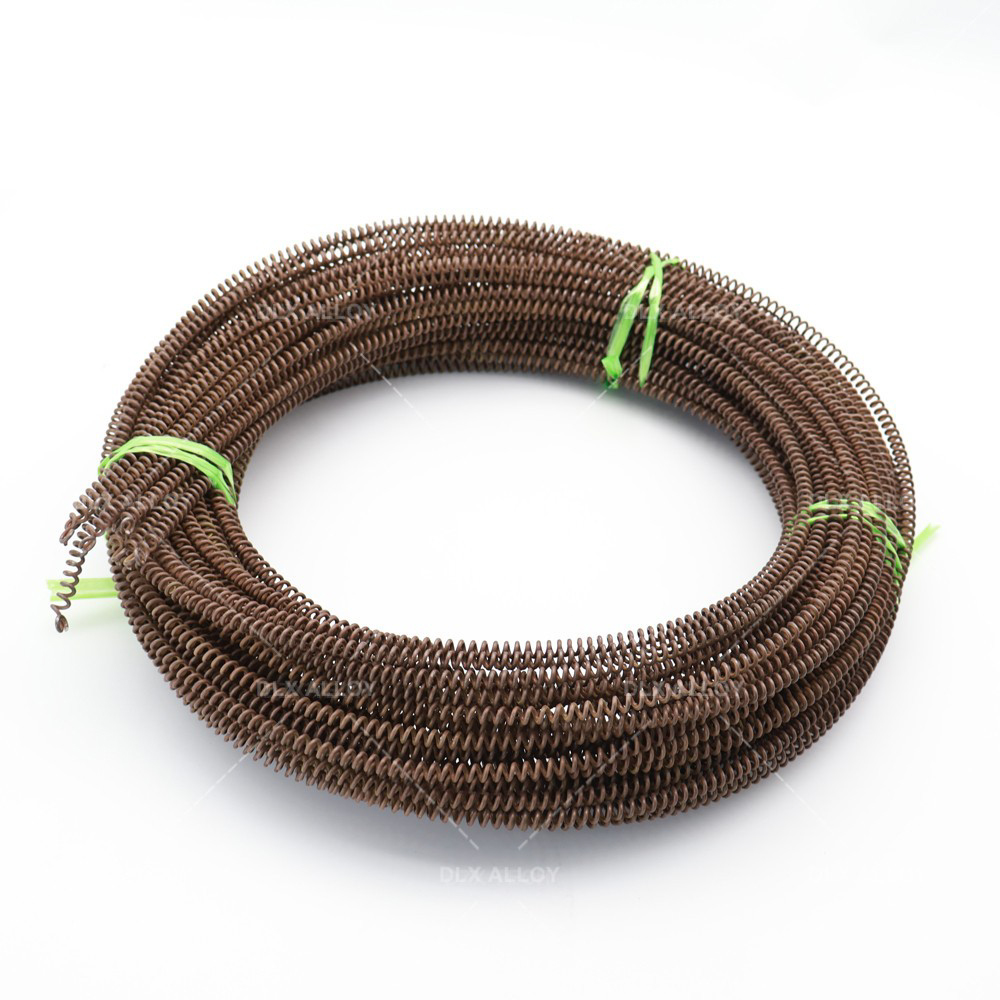

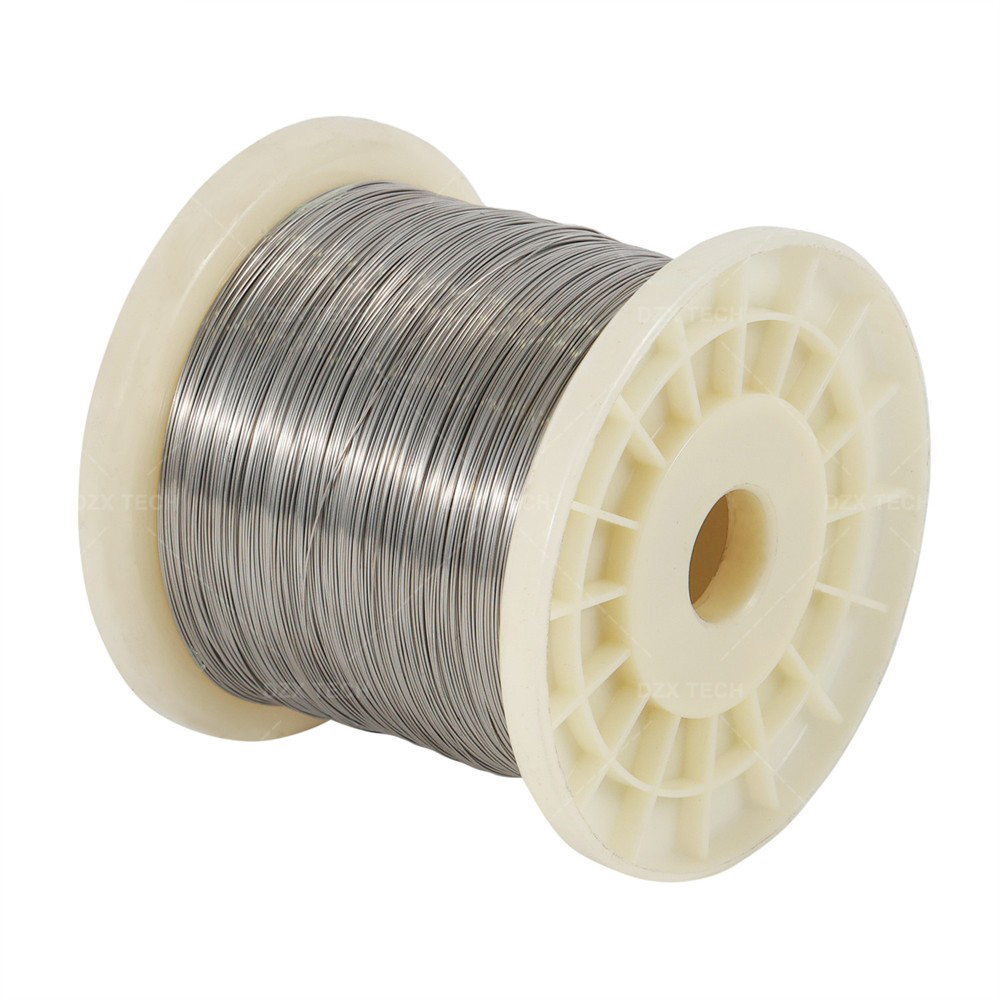

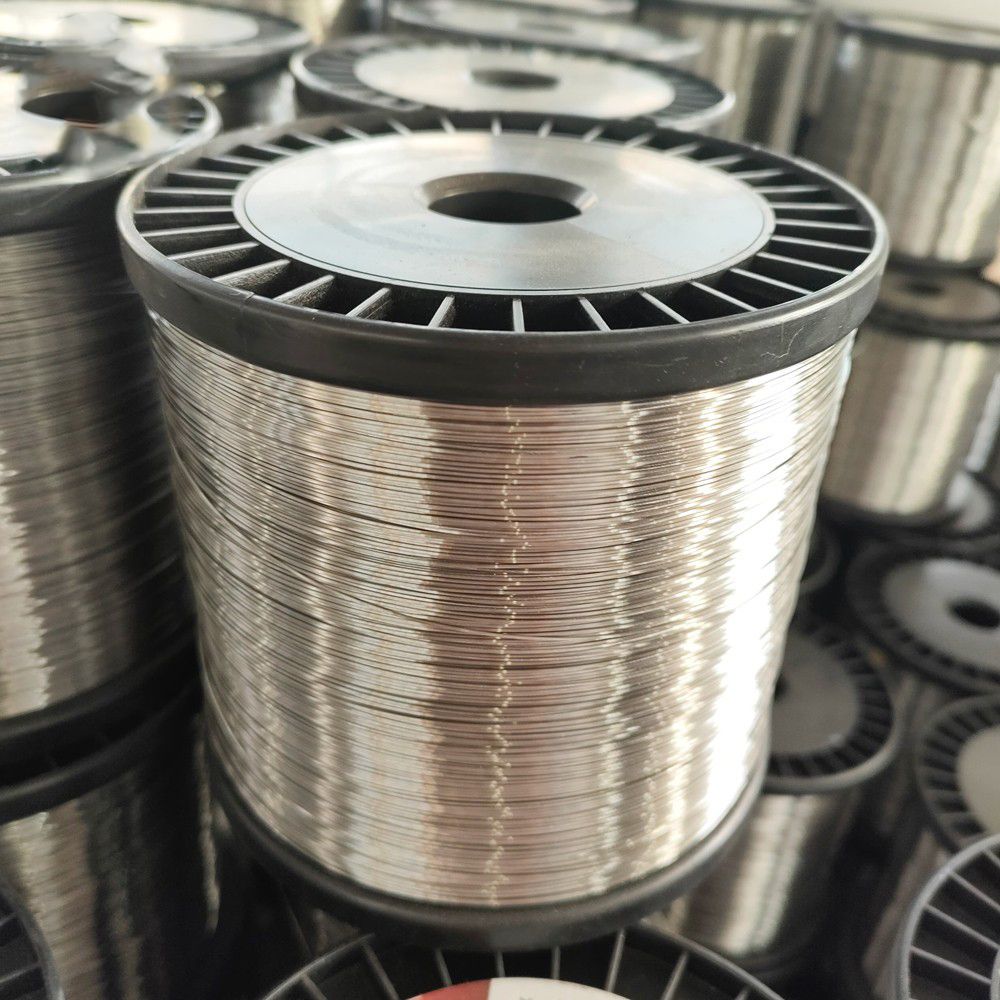

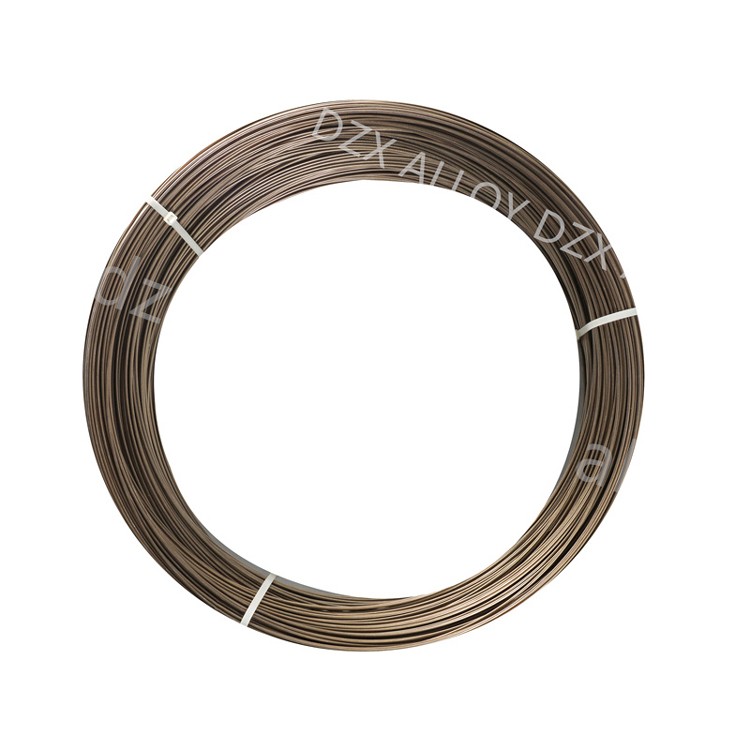

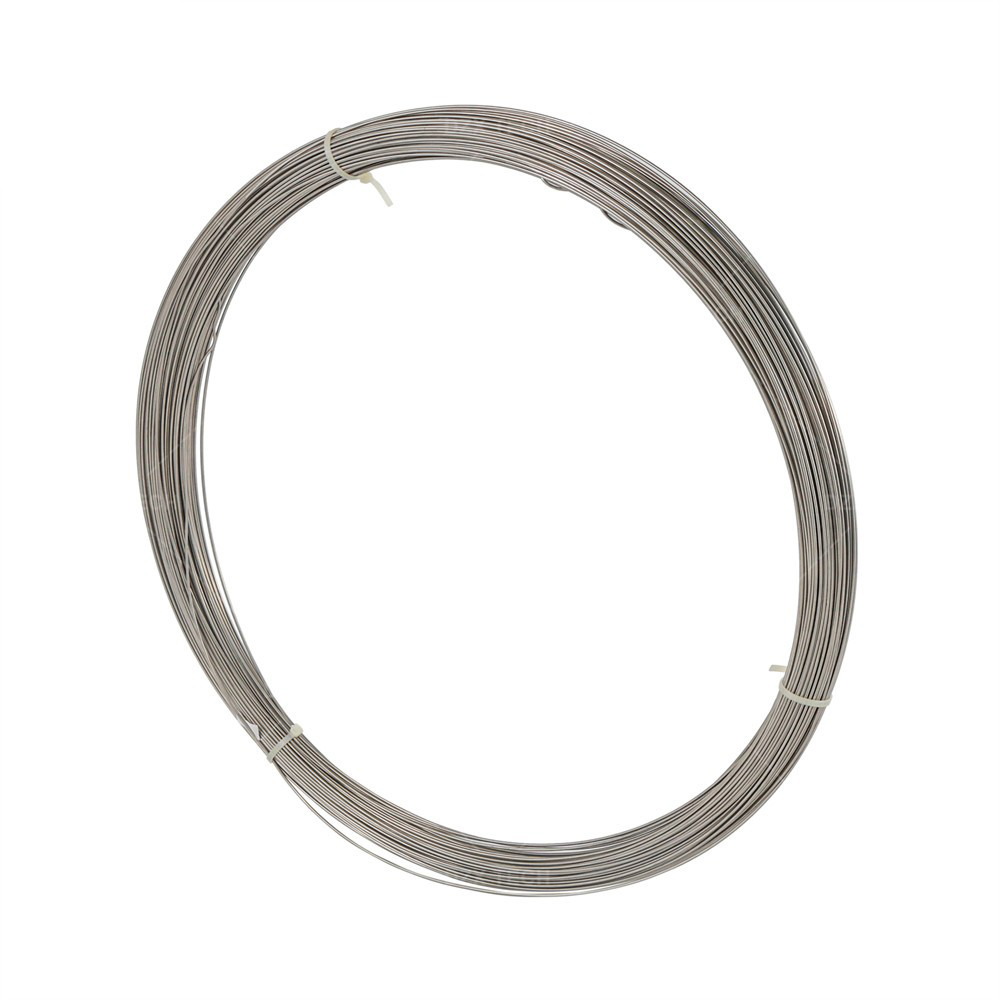

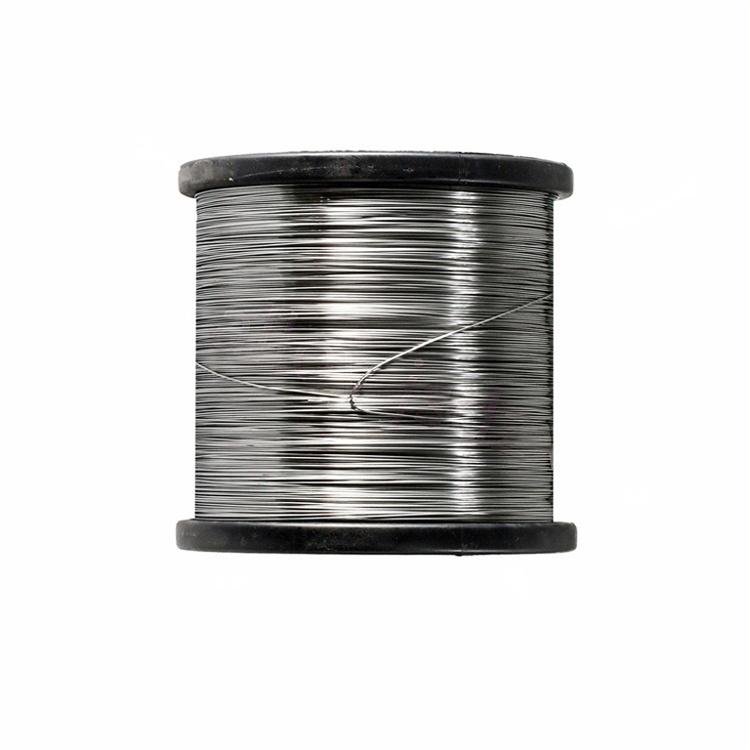

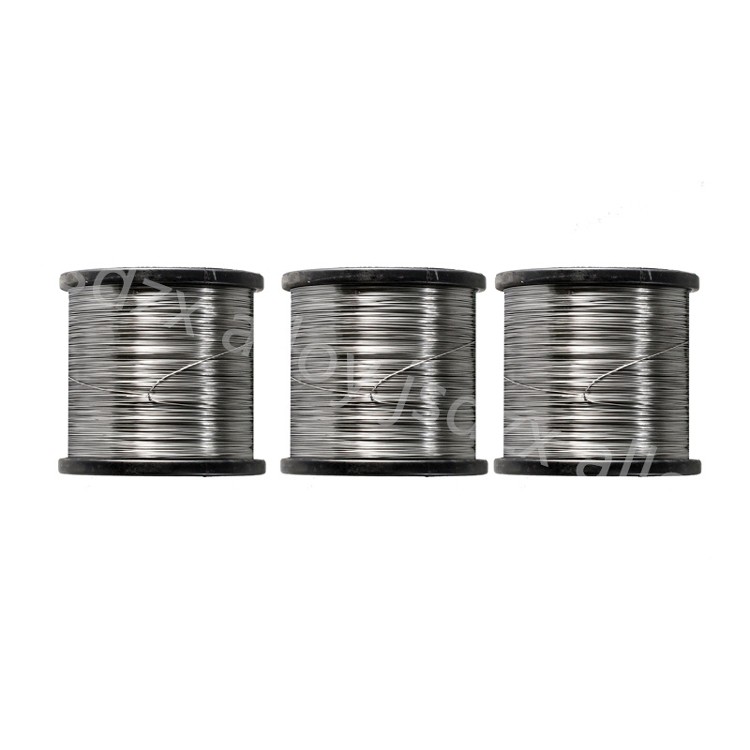

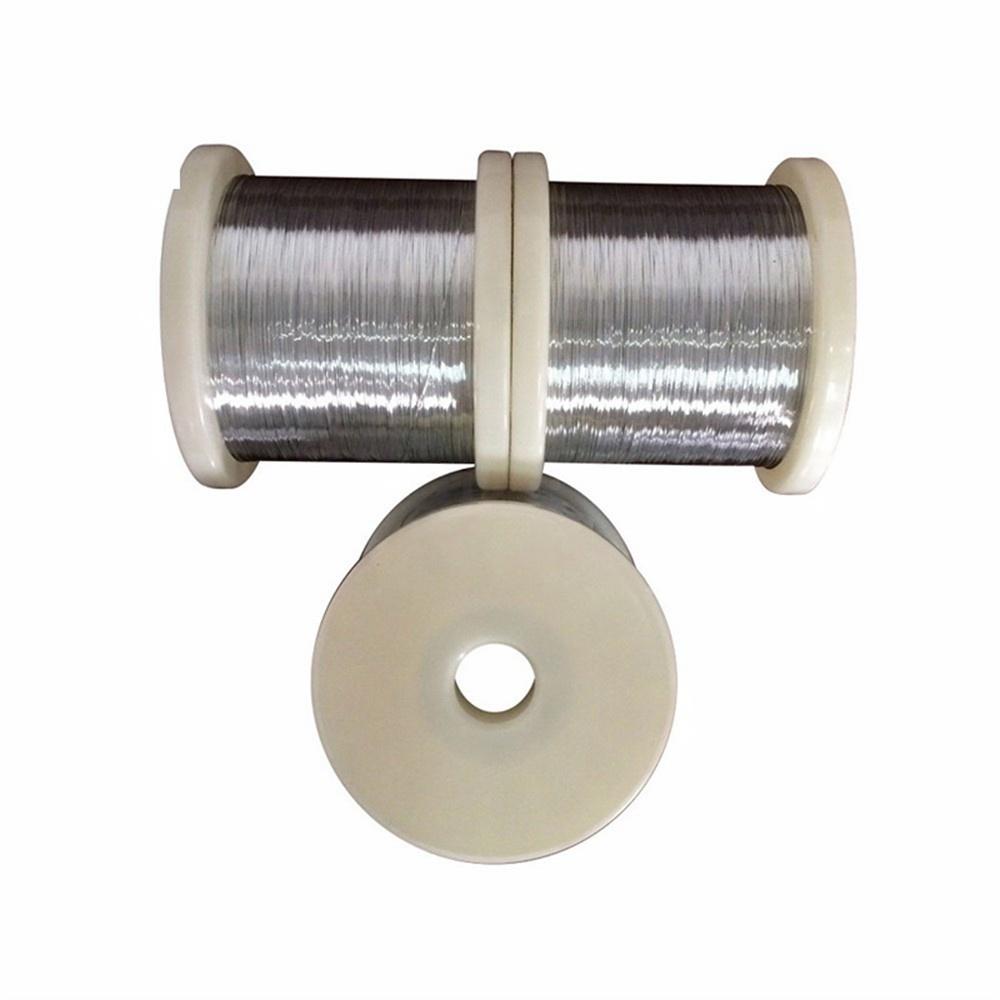

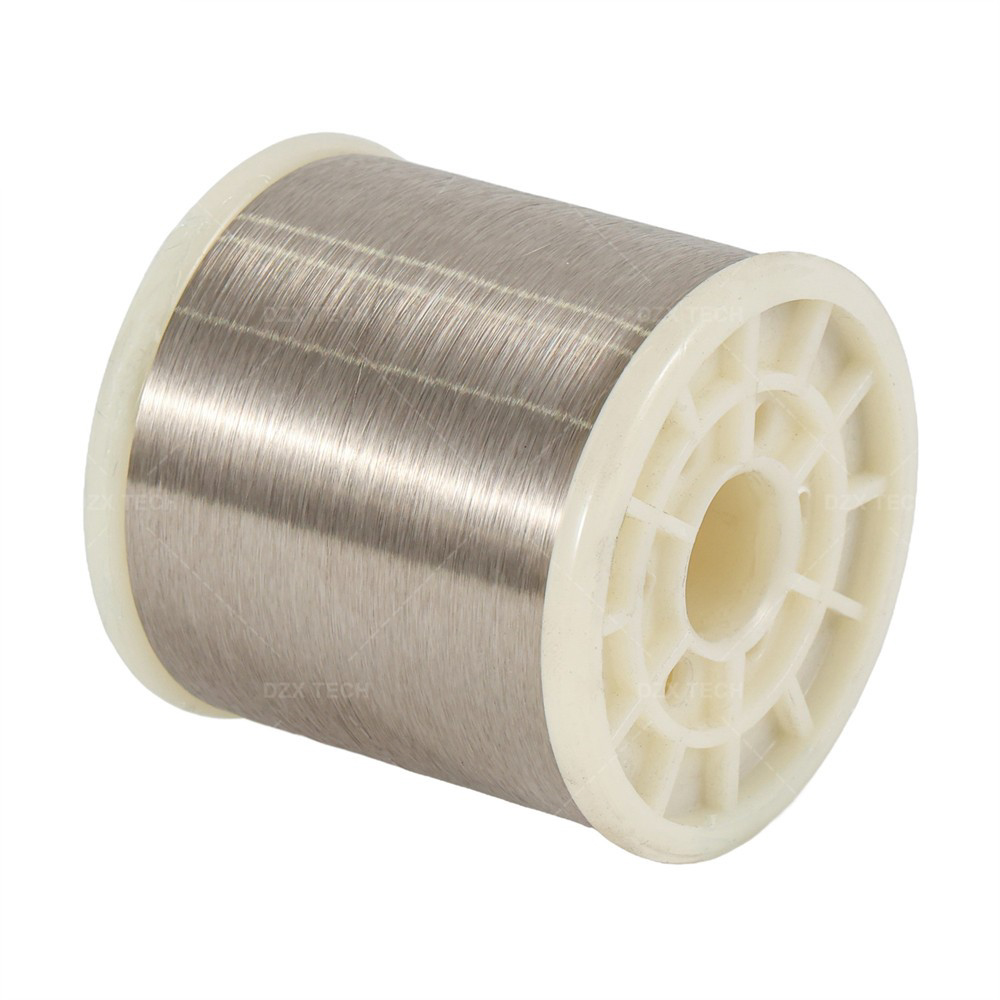

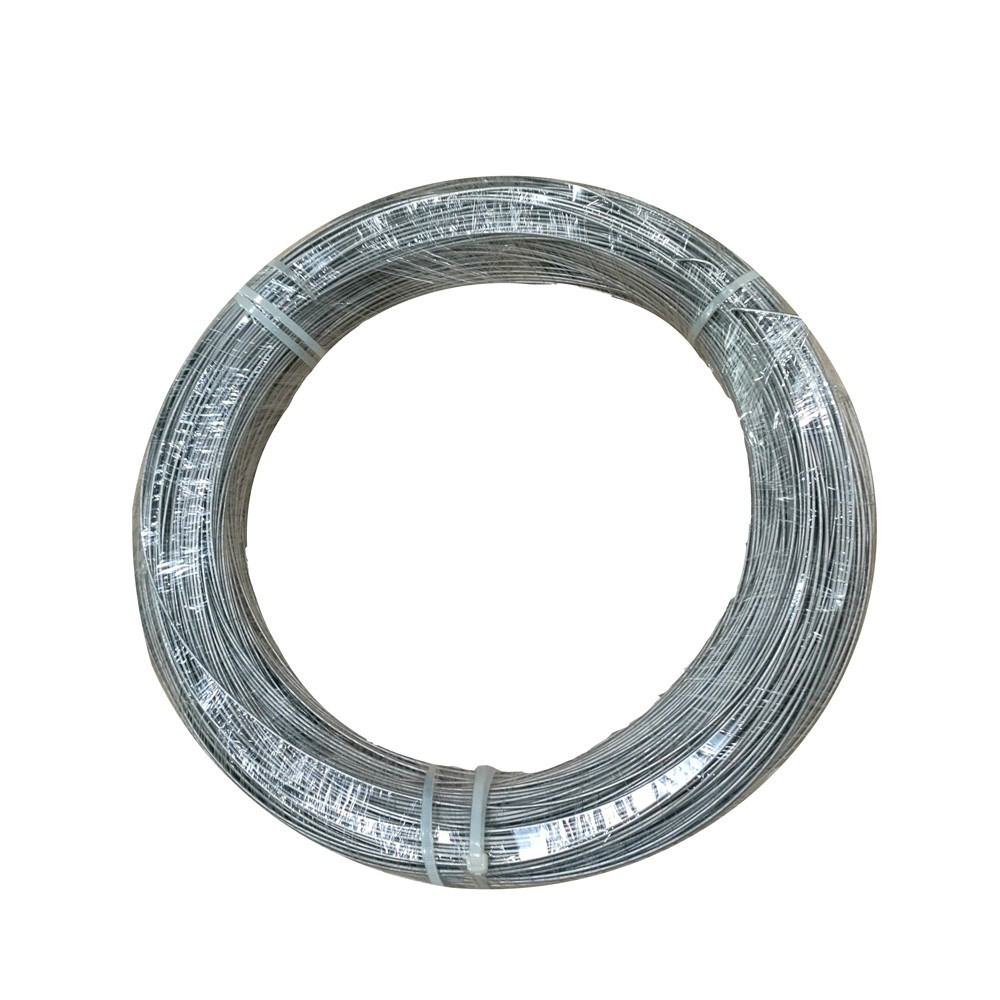

Product Name: FeCrAl resistance wire Size: Customized Size Surface：Acid Pickling/Bright Chemical composition：Fe,Cr,Al Resistivity：1.45 x 10 ^ -6Ω·m Maximum operating temperature：1200 ° C - 1400 ° C Tensile strength: 500-1000 MPa Density：7.16g/cm³
0
Products Description
Product introduction:
FeCrAl (iron chromium aluminum) resistance wire is a high-temperature resistance alloy composed of elements such as iron, chromium, and aluminum. It has excellent high-temperature stability and oxidation resistance, and is commonly used in the manufacturing of high-temperature heating devices and electric heating products. Common FeCrAl resistance wire grades include Kanthal series, Resistohm series, etc. Specific parameters include resistivity, diameter, tensile strength, maximum operating temperature, etc.
A typical FeCrAl resistance wire has a resistivity of approximately 1.1 x 10 ^ -6 Ω· m to 1.45 x 10 ^ -6 Ω· m at 20 ° C, with diameters ranging from 0.05 millimeters to 2.5 millimeters. Its maximum operating temperature can usually reach 1200 ° C to 1400 ° C, with high tensile strength and the ability to withstand tension in high-temperature environments. In addition, FeCrAl resistance wire also has good corrosion resistance and mechanical properties, and performs well in various high-temperature heating applications.
FeCrAl resistance wires are widely used in household appliances, industrial heating equipment, laboratory instruments, and other fields, providing reliable solutions for various heating needs. Choosing the appropriate FeCrAl resistance wire brand and parameters can be adjusted according to specific heating requirements and working environment to ensure the stability and performance of the heating device.
Application Area: It is widely used in industrial furnace, household appliances, industry furnace, metallurgy, machinery, aircraft, automotive, military and other industries producing heating elements and resistance elements.
Product introduction: FeCrAl Electrictrical Resistance Heating alloys with high electrical resistivity, temperature coefficient of resistance is small, high operating temperature. good corrosion resistance under high temperature, and particularly suitable for use in a gas containing sulfur and sulfides, low price.
Application Area: It is widely used in industrial furnace, household appliances, industry furnace, metallurgy, machinery, aircraft, automotive, military and other industries producing heating elements and resistance elements.
SIze dimension range:
Wire: 0.01-10mm

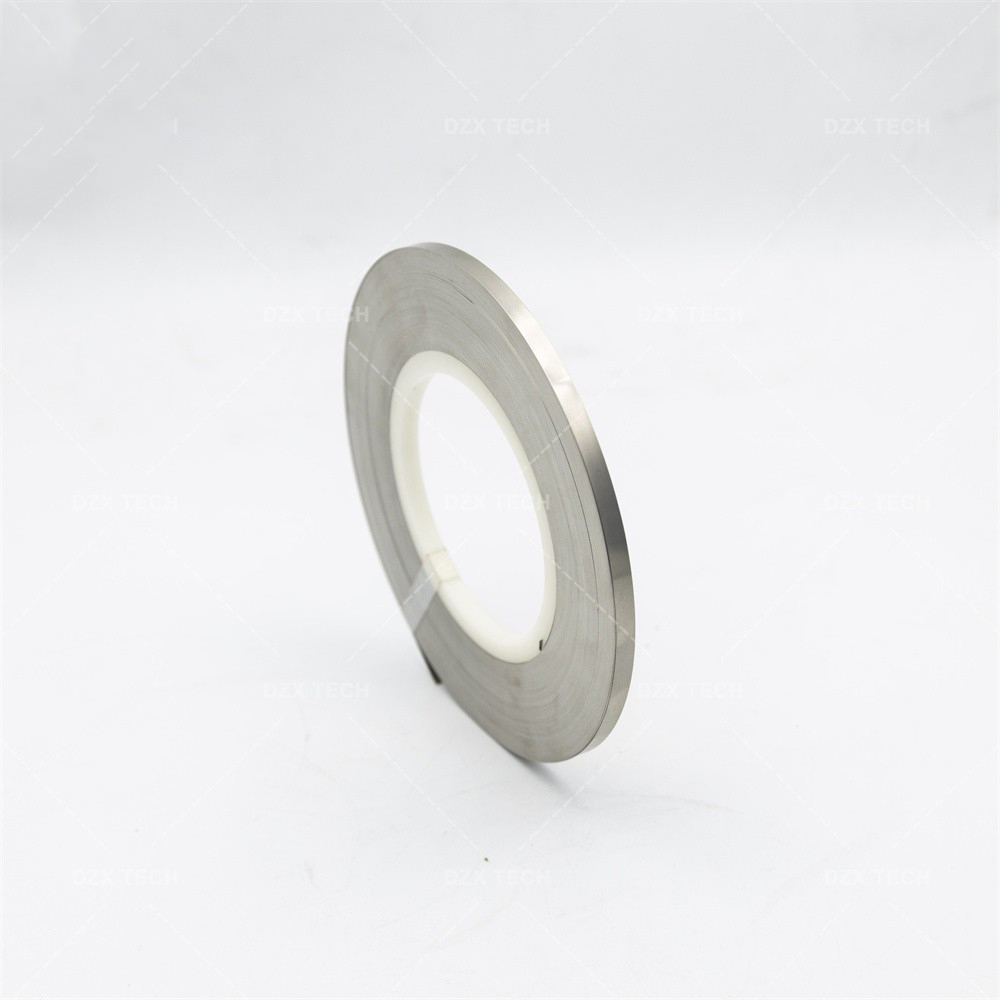

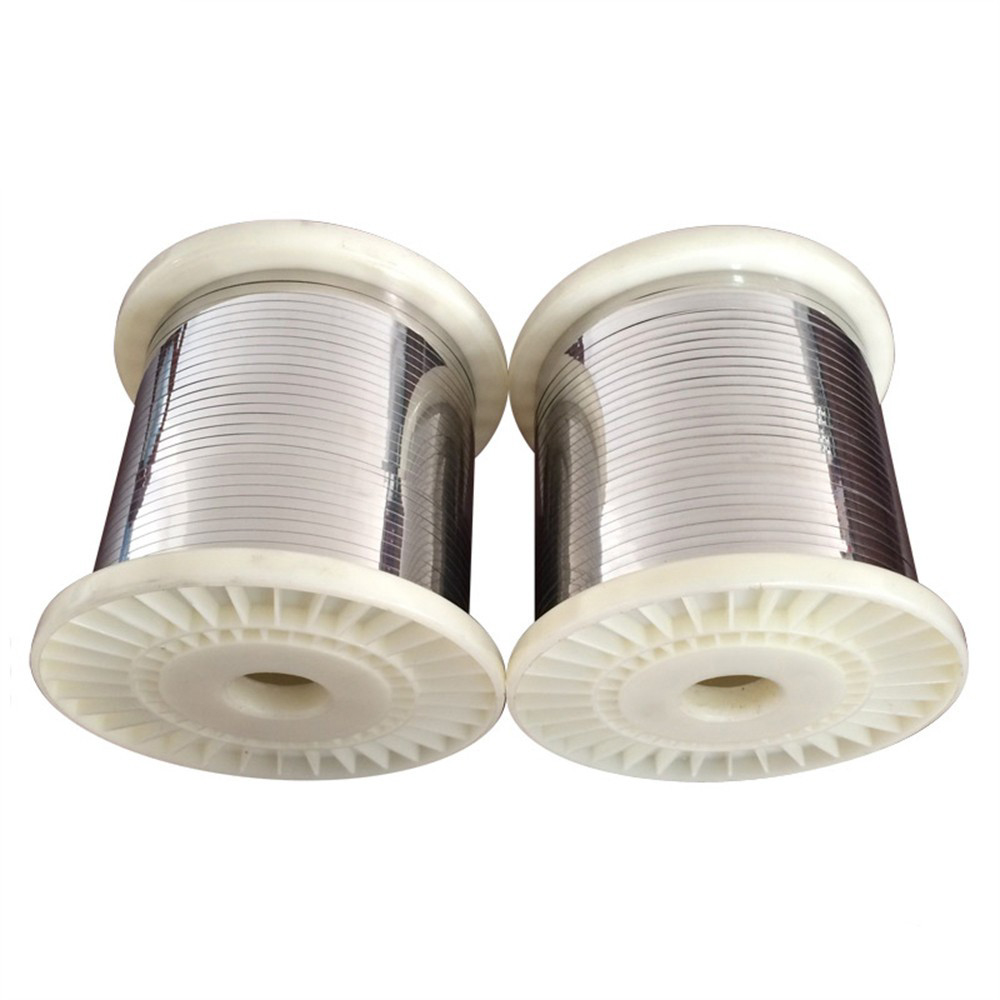

Ribbon: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
Bar: 10-50mm
FeCrAl alloy series: 0Cr15Al5, 1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr23Al5, 0Cr25Al5, 0Cr21Al6Nb, 0Cr27Al7Mo2, and etc.
Alloy Nomenclature Performance | 1Cr13Al4 | 0Cr25Al5 | 0Cr21Al6 | 0Cr23Al5 | 0Cr21Al4 | 0Cr21Al6Nb | 0Cr27Al7Mo2 | |
Chemical Compostion (%) | Cr | 12.0-15.0 | 23.0-26.0 | 19.0-22.0 | 20.5-23.5 | 18.0-21.0 | 21.0-23.0 | 26.5-27.8 |
Al | 4.0-6.0 | 4.5-6.5 | 5.0-7.0 | 4.2-5.3 | 3.0-4.2 | 5.0-7.0 | 6.0-7.0 | |
Re | Opportune | Opportune | Opportune | Opportune | Opportune | Opportune | Opportune | |
Fe | Rest | Rest | Rest | Rest | Rest | Rest | Rest | |
-- | -- | -- | -- | -- | -- | -- | ||
Max.Continuous service temp. of element | 950 | 1250 | 1250 | 1250 | 1100 | 1350 | 1400 | |
Resistivity at 20C(μΩ.m) | 1.25 | 1.42 | 1.42 | 1.35 | 1.23 | 1.45 | 1.53 | |
Density(g/cm) | 7.4 | 7.1 | 7.16 | 7.25 | 7.35 | 7.1 | 7.1 | |
Thermal Conductivity(KJ/m.h) | 52.7 | 46.1 | 63.2 | 60.2 | 46.9 | 46.1 | -- | |
Coefficient of lines expansion(αx10-6/℃) | 15.4 | 16 | 14.7 | 15 | 13.5 | 16 | 16 | |
Melting Point Approx(degree) | 1450 | 1500 | 1500 | 1500 | 1500 | 1510 | 1520 | |
Tensile Strength(N/mm) | 580-680 | 630-780 | 630-780 | 630-780 | 600-700 | 650-800 | 680-830 | |
Elongation at rupture(%) | >16 | >12 | >12 | >12 | >12 | >12 | >10 | |
Variation of area(%) | 65-75 | 60-75 | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 | |
Repeat Bending frequency(F/R) | >5 | >5 | >5 | >5 | >5 | >5 | >5 | |
Hardness(H.B.) | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | |
continuous service time(Hours/ ºC) | -- | ≥80/1300 | ≥80/1300 | ≥80/1300 | ≥80/1250 | ≥80/1350 | ≥80/1350 | |
Micrographic structure | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | |
Magnetic properties | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | |
Shape | Size (mm) |
Wire | 0.05-7.5 |
Rod | 8-50 |
Ribbon | (0.05-0.35)*(0.5-6.0) |
Strip | (0.5-2.5)*(5-180) |
