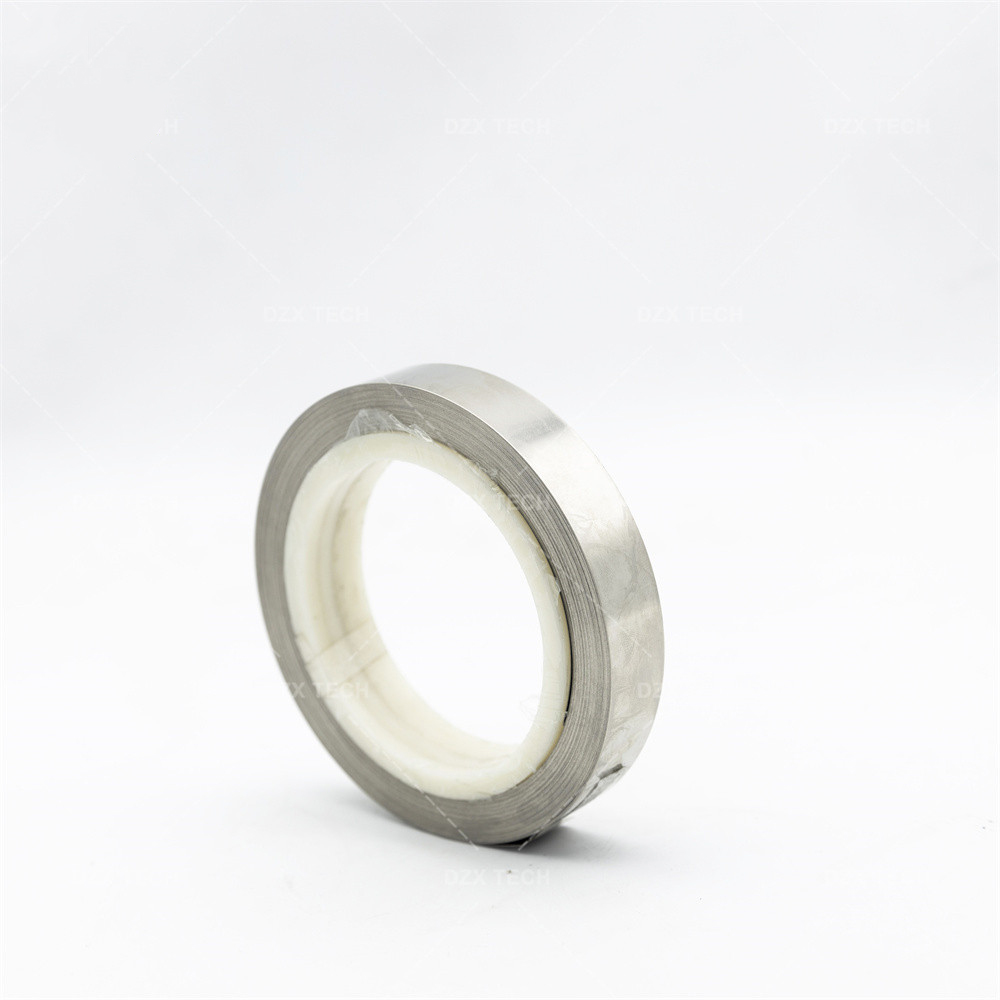

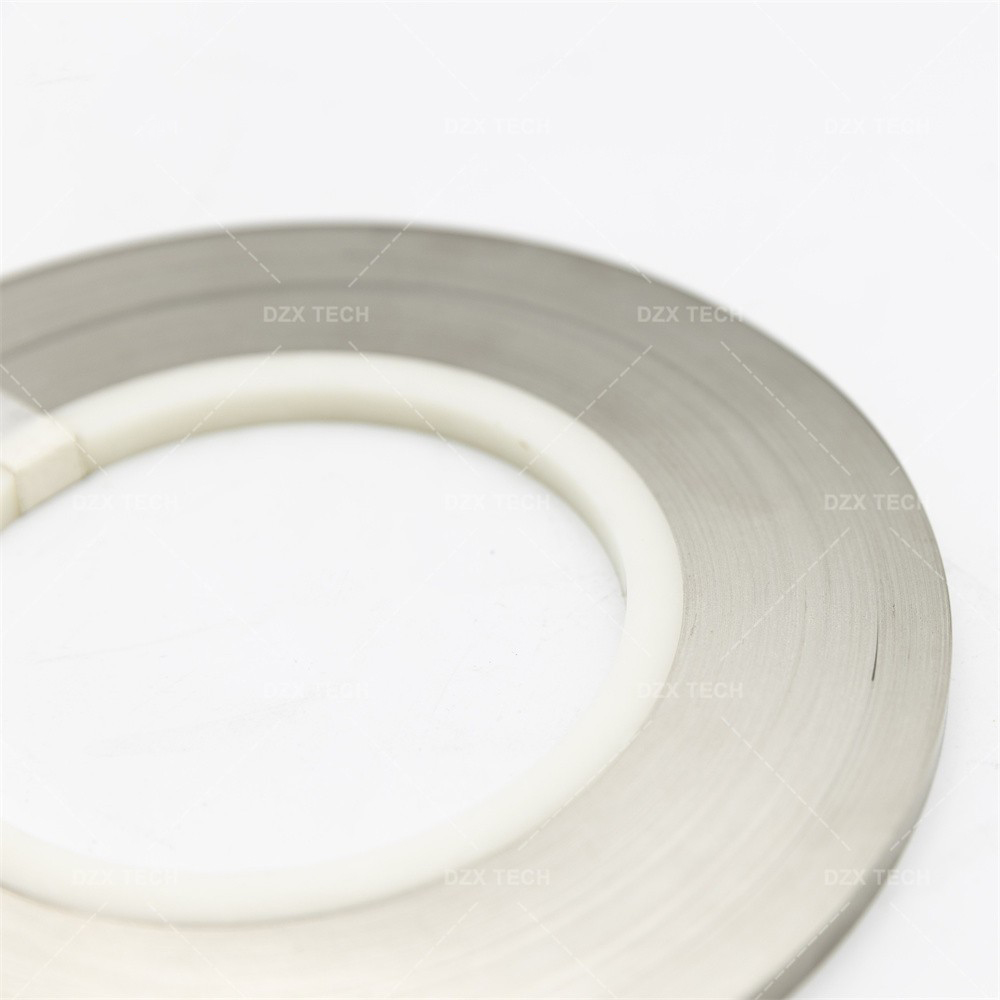

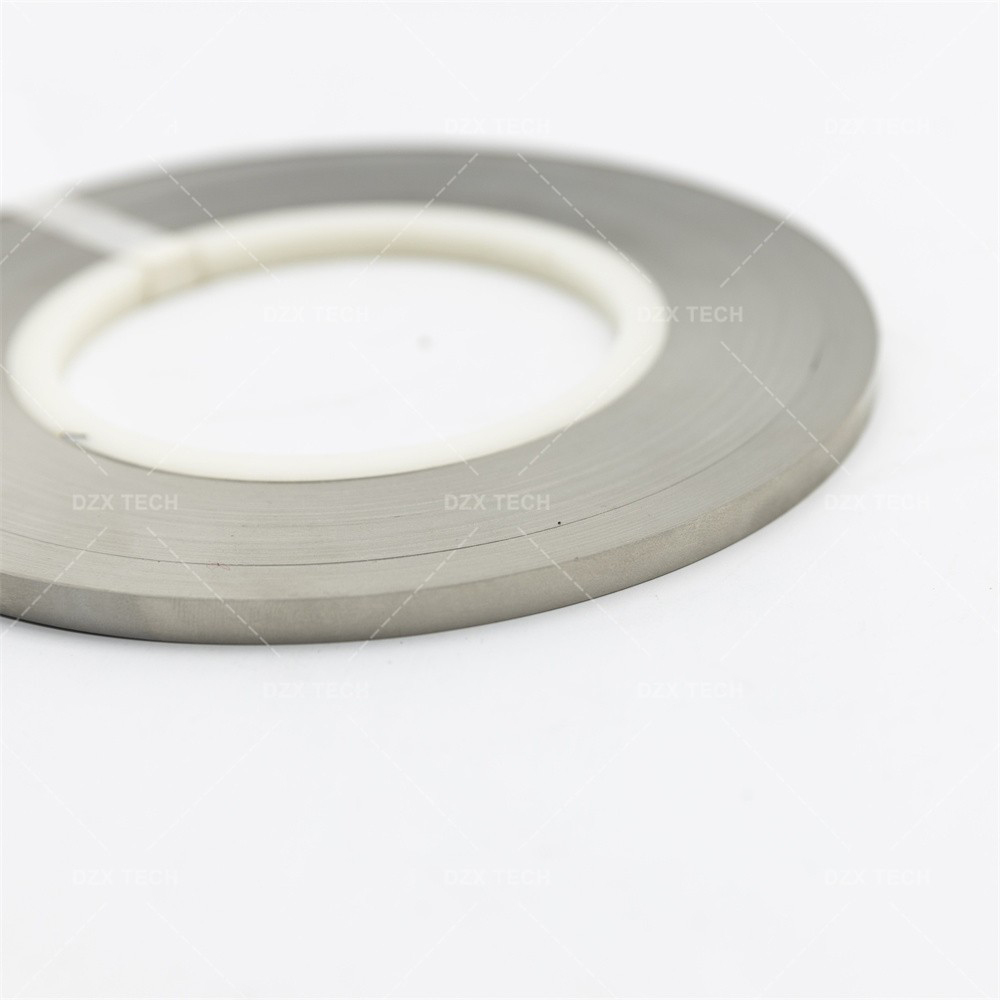

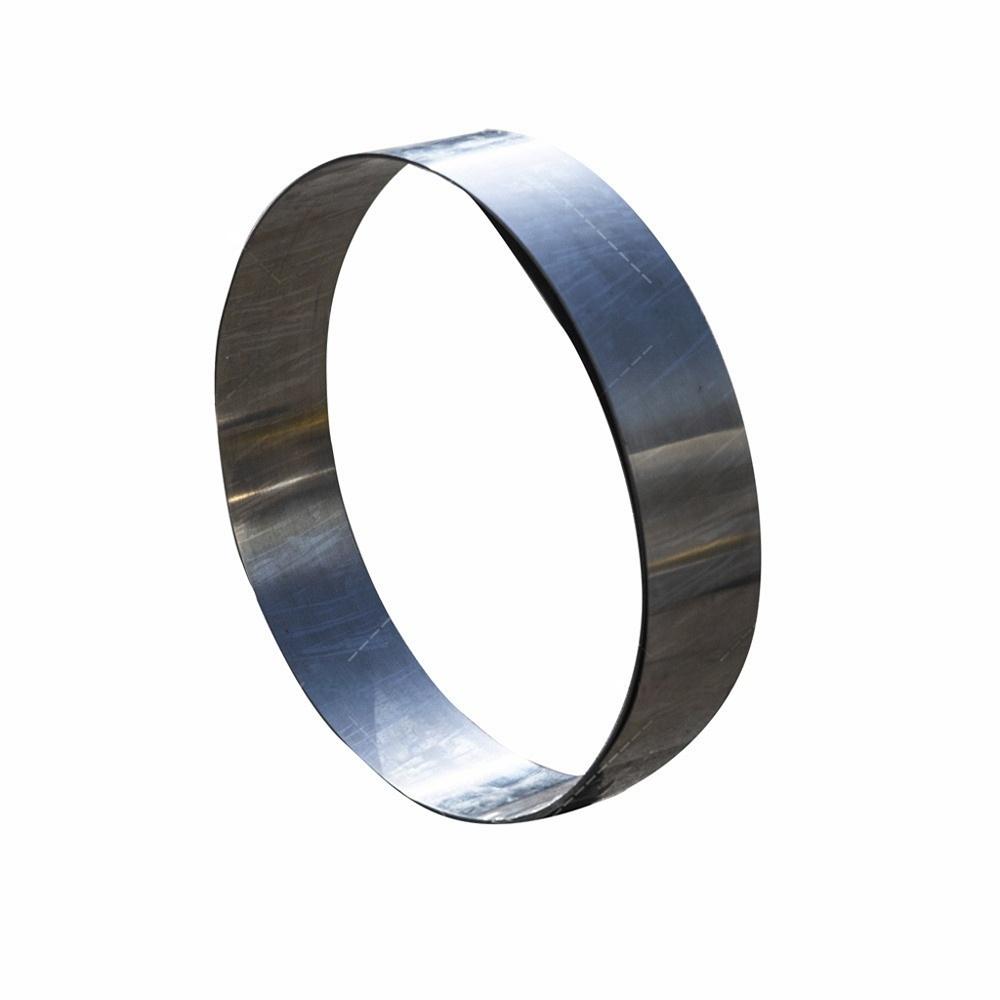

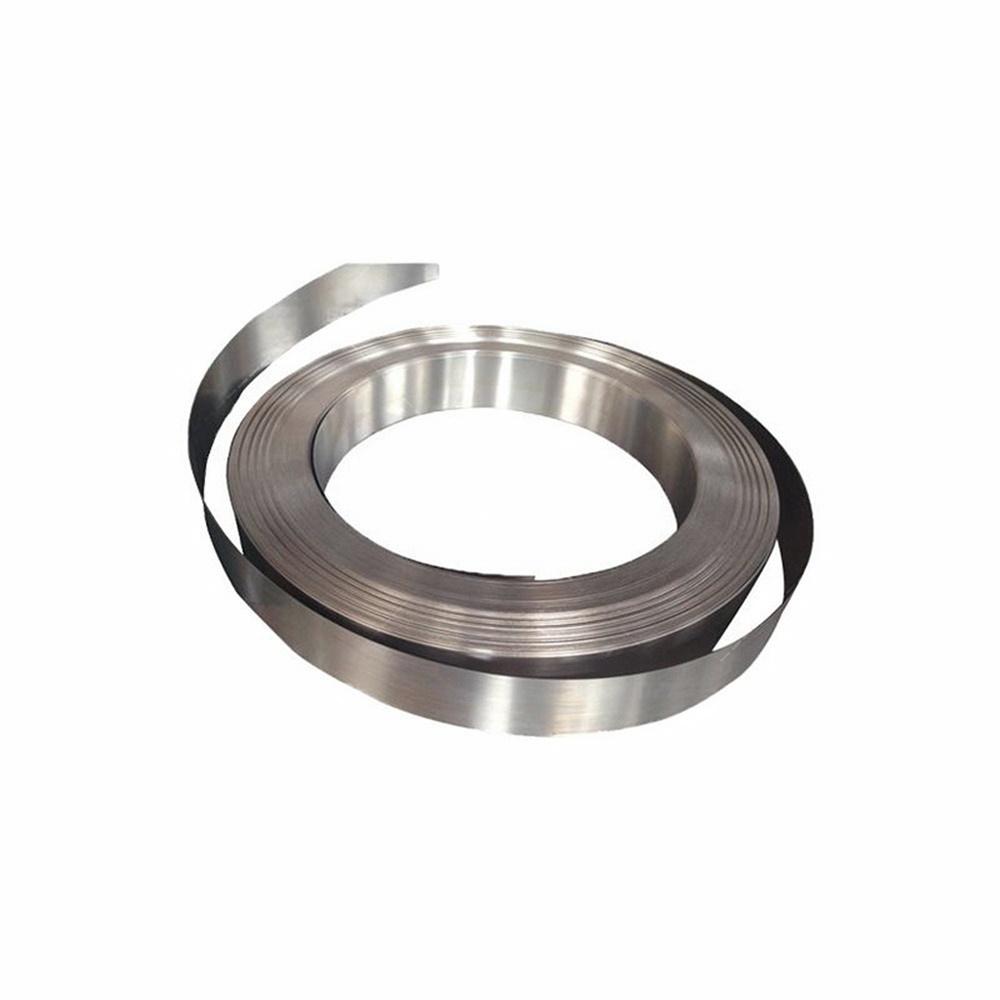

Product Name: FeCrAl strip Size: Customized Size Surface：Acid Pickling/Bright Chemical composition：Fe,Cr,Al Resistivity：1.45 x 10 ^ -6Ω·m Maximum operating temperature：1200 ° C - 1400 ° C Tensile strength: 500-1000 MPa Density：7.16g/cm³
0
Products Description
FeCrAl strip is an important type of high-temperature alloy material, which includes a series of different grades of alloy strips, such as 1Cr13Al4, 0Cr15Al5, 0Cr19Al3, 0Cr21Al4, 0Cr21Al6, 0Cr23Al5, 0Cr25Al5, 0Cr21Al6Nb, etc. These alloy strips have slight differences in parameters and composition, but they are mainly composed of iron (Fe), chromium (Cr), and aluminum (Al), with different contents of Cr and Al. These alloy strips have high electrical resistivity, good high-temperature stability, and oxidation resistance, and can maintain stable performance in high-temperature environments. They are widely used in heat treatment furnaces, industrial heating equipment, household appliances, and other fields as heating elements, which can provide stable and efficient heating effects.
Parameter：
Alloy Nomenclature Performance | 1Cr13Al4 | 0Cr25Al5 | 0Cr21Al6 | 0Cr23Al5 | 0Cr21Al4 | 0Cr21Al6Nb | 0Cr27Al7Mo2 | |
Chemical Compostion (%) | Cr | 12.0-15.0 | 23.0-26.0 | 19.0-22.0 | 20.5-23.5 | 18.0-21.0 | 21.0-23.0 | 26.5-27.8 |
Al | 4.0-6.0 | 4.5-6.5 | 5.0-7.0 | 4.2-5.3 | 3.0-4.2 | 5.0-7.0 | 6.0-7.0 | |
Re | Opportune | Opportune | Opportune | Opportune | Opportune | Opportune | Opportune | |
Fe | Rest | Rest | Rest | Rest | Rest | Rest | Rest | |
-- | -- | -- | -- | -- | -- | -- | ||
Max.Continuous service temp. of element | 950 | 1250 | 1250 | 1250 | 1100 | 1350 | 1400 | |
Resistivity at 20C(μΩ.m) | 1.25 | 1.42 | 1.42 | 1.35 | 1.23 | 1.45 | 1.53 | |
Density(g/cm) | 7.4 | 7.1 | 7.16 | 7.25 | 7.35 | 7.1 | 7.1 | |
Thermal Conductivity(KJ/m.h) | 52.7 | 46.1 | 63.2 | 60.2 | 46.9 | 46.1 | -- | |
Coefficient of lines expansion(αx10-6/℃) | 15.4 | 16 | 14.7 | 15 | 13.5 | 16 | 16 | |
Melting Point Approx(degree) | 1450 | 1500 | 1500 | 1500 | 1500 | 1510 | 1520 | |
Tensile Strength(N/mm) | 580-680 | 630-780 | 630-780 | 630-780 | 600-700 | 650-800 | 680-830 | |
Elongation at rupture(%) | >16 | >12 | >12 | >12 | >12 | >12 | >10 | |
Variation of area(%) | 65-75 | 60-75 | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 | |
Repeat Bending frequency(F/R) | >5 | >5 | >5 | >5 | >5 | >5 | >5 | |
Hardness(H.B.) | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | |
continuous service time(Hours/ ºC) | -- | ≥80/1300 | ≥80/1300 | ≥80/1300 | ≥80/1250 | ≥80/1350 | ≥80/1350 | |
Micrographic structure | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | |
Magnetic properties | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | |
Shape | Size (mm) |
Wire | 0.05-7.5 |
Rod | 8-50 |
Ribbon | (0.05-0.35)*(0.5-6.0) |
Strip | (0.5-2.5)*(5-180) |
For more details, pls directly contact us.
Feature：
High resistivity: FeCrAl strips have high resistivity and are suitable for various high-temperature heating scenarios.
Good high-temperature stability: In high-temperature environments, the alloy strip exhibits good stability and is not prone to deformation or oxidation.
Excellent antioxidant performance: With antioxidant properties, it can work for a long time in high temperature environments without being prone to oxidation or failure.
Application：
Industrial heating equipment: commonly used in industrial heating equipment such as heat treatment furnaces and furnaces, providing stable heating effects.
Household appliances: widely used in household appliances such as ovens and water heaters as heating elements, providing reliable heating functions.
Automotive industry: providing efficient heating function in applications such as automotive engine preheating systems.
Q&A：
What are the main components of FeCrAl strip?
The main components of FeCrAl strip include elements such as iron (Fe), chromium (Cr), and aluminum (Al).
Why is FeCrAl strip widely used in industrial heating equipment?
Due to its high electrical resistivity, high temperature stability, and excellent oxidation resistance, FeCrAl strips can provide stable and efficient heating effects, making them widely used in industrial heating equipment.
What is the maximum operating temperature for FeCrAl strip?
The maximum operating temperature of FeCrAl strip is usually above 1200 ° C, indicating good high-temperature performance.
