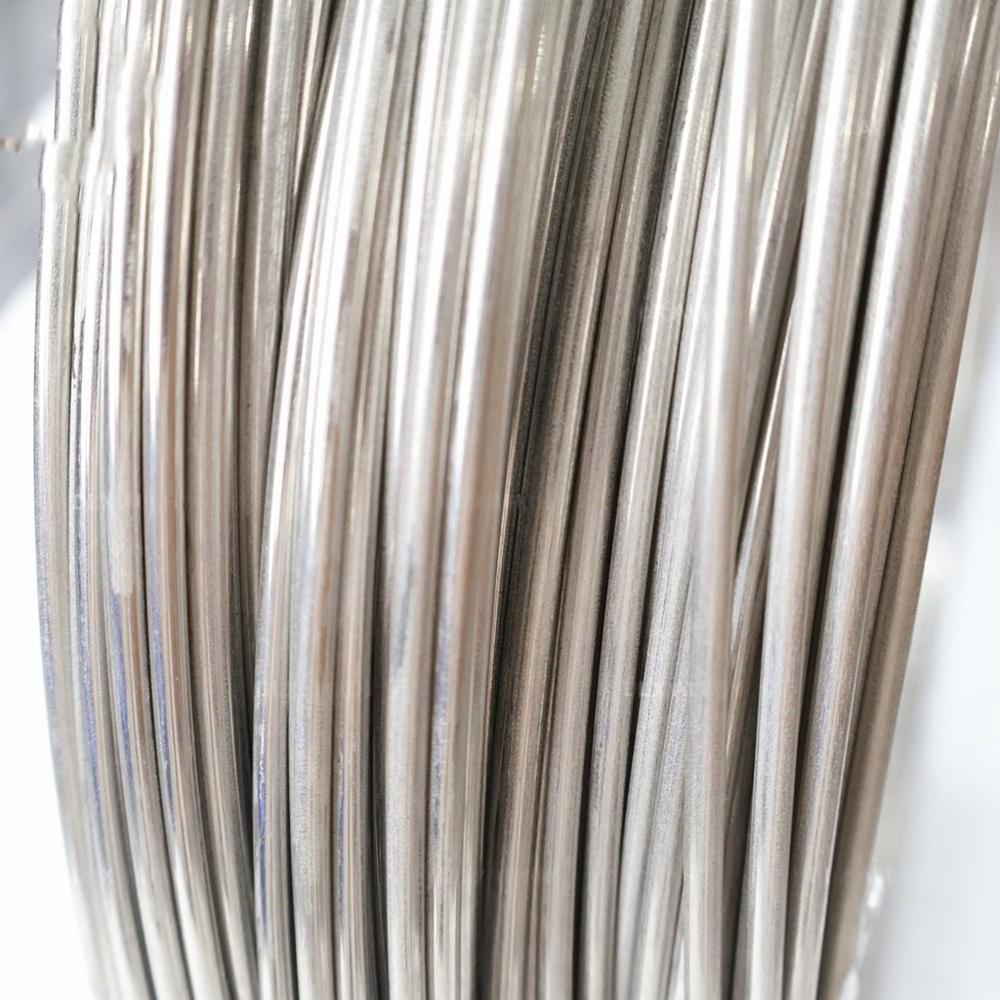

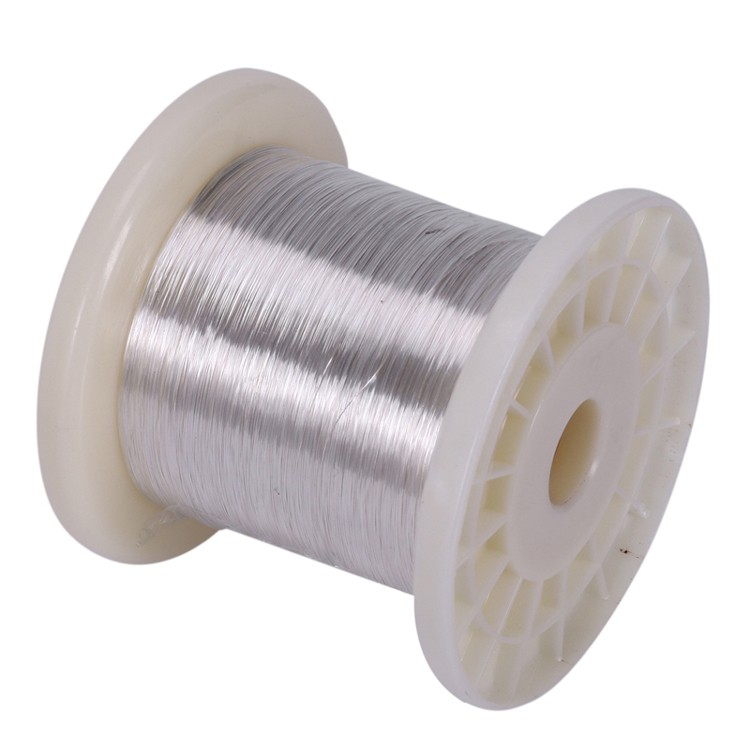

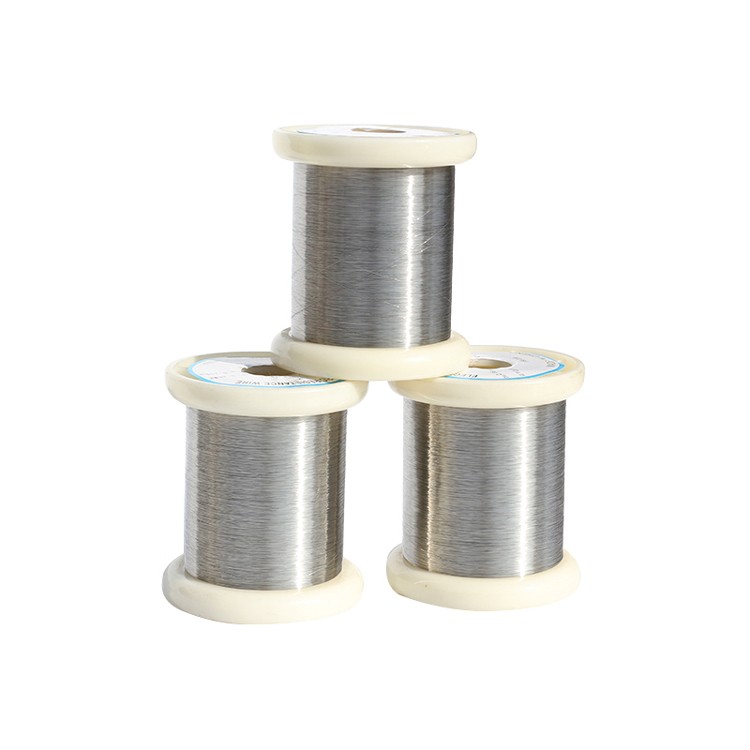

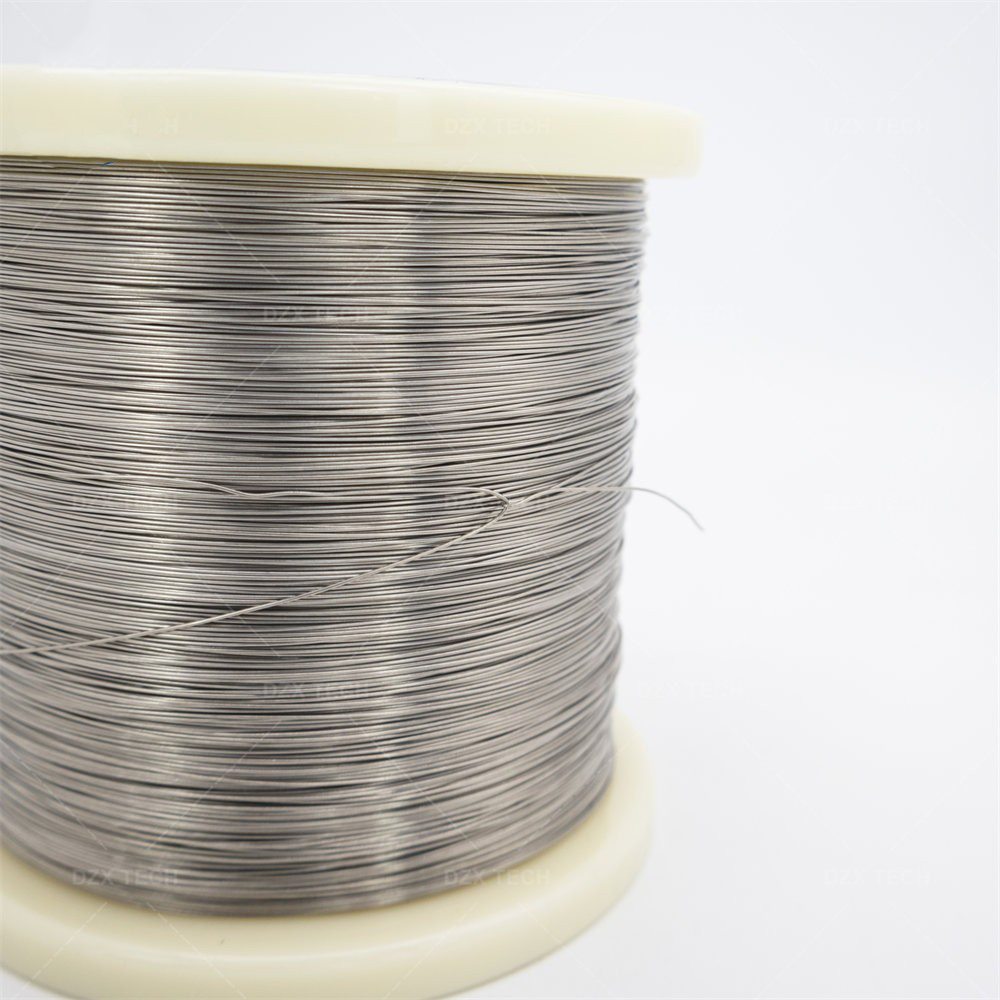

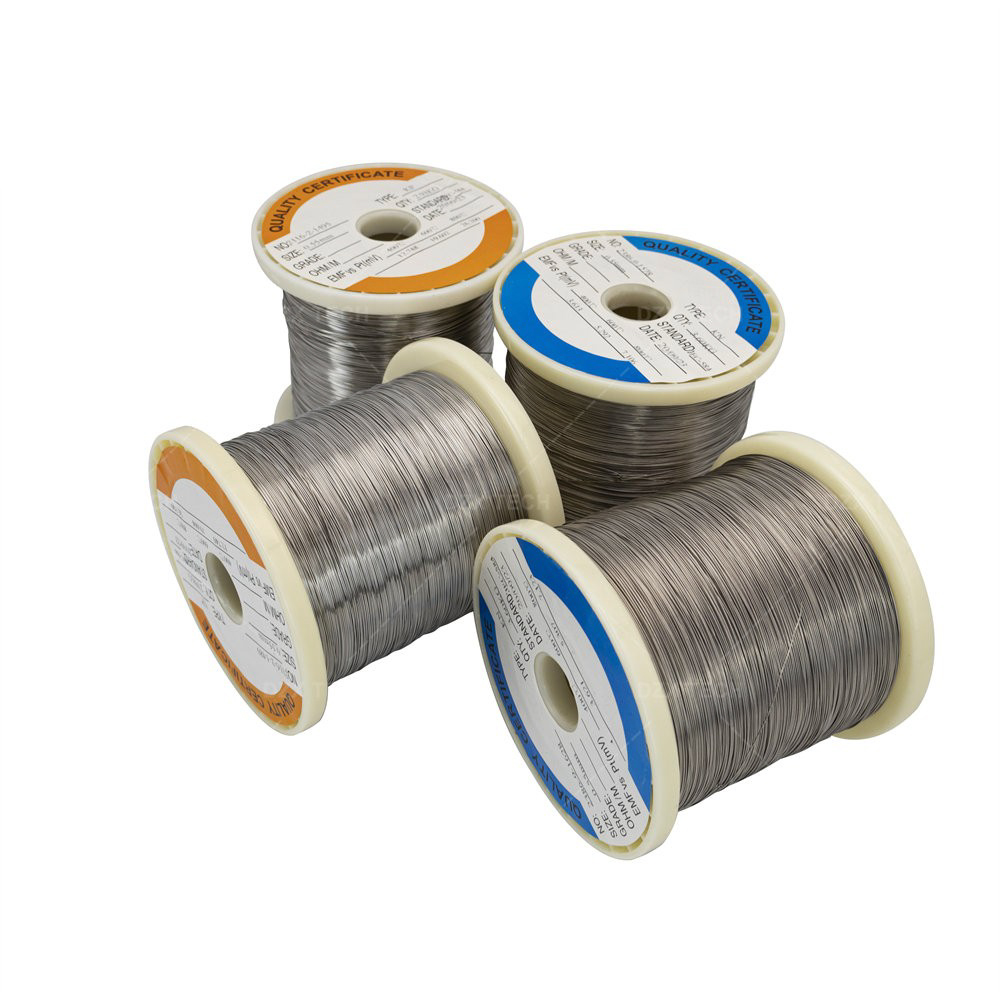

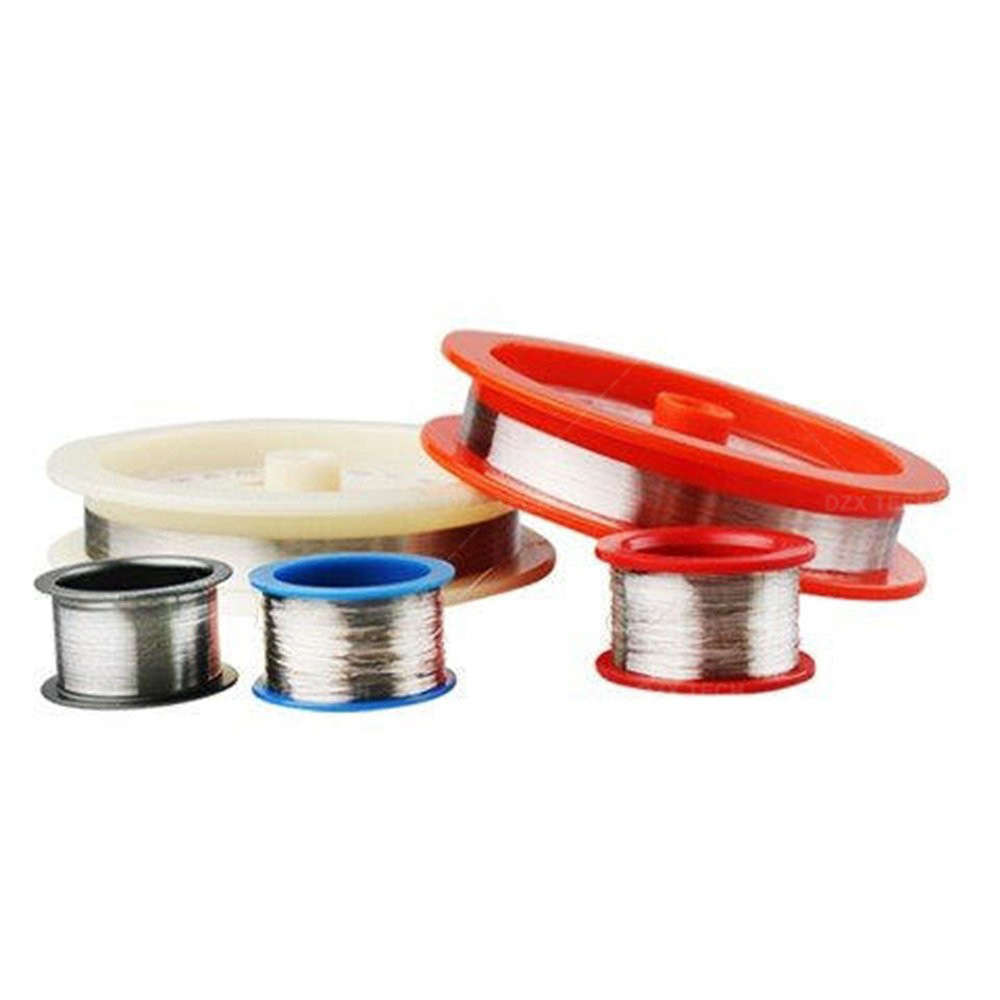

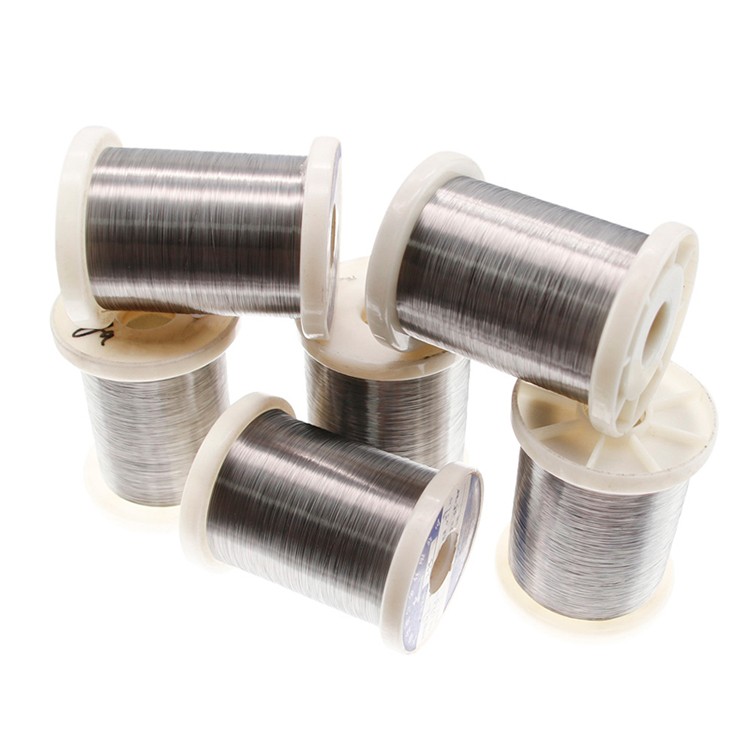

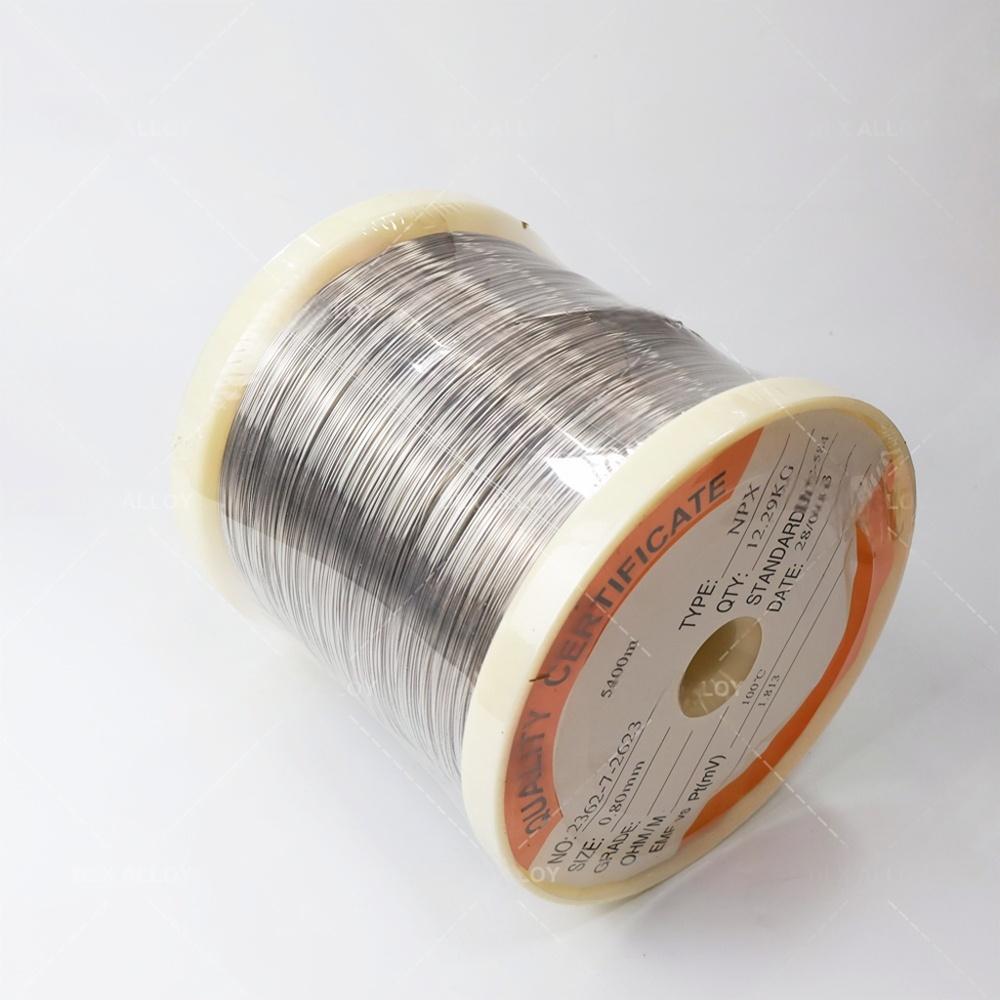

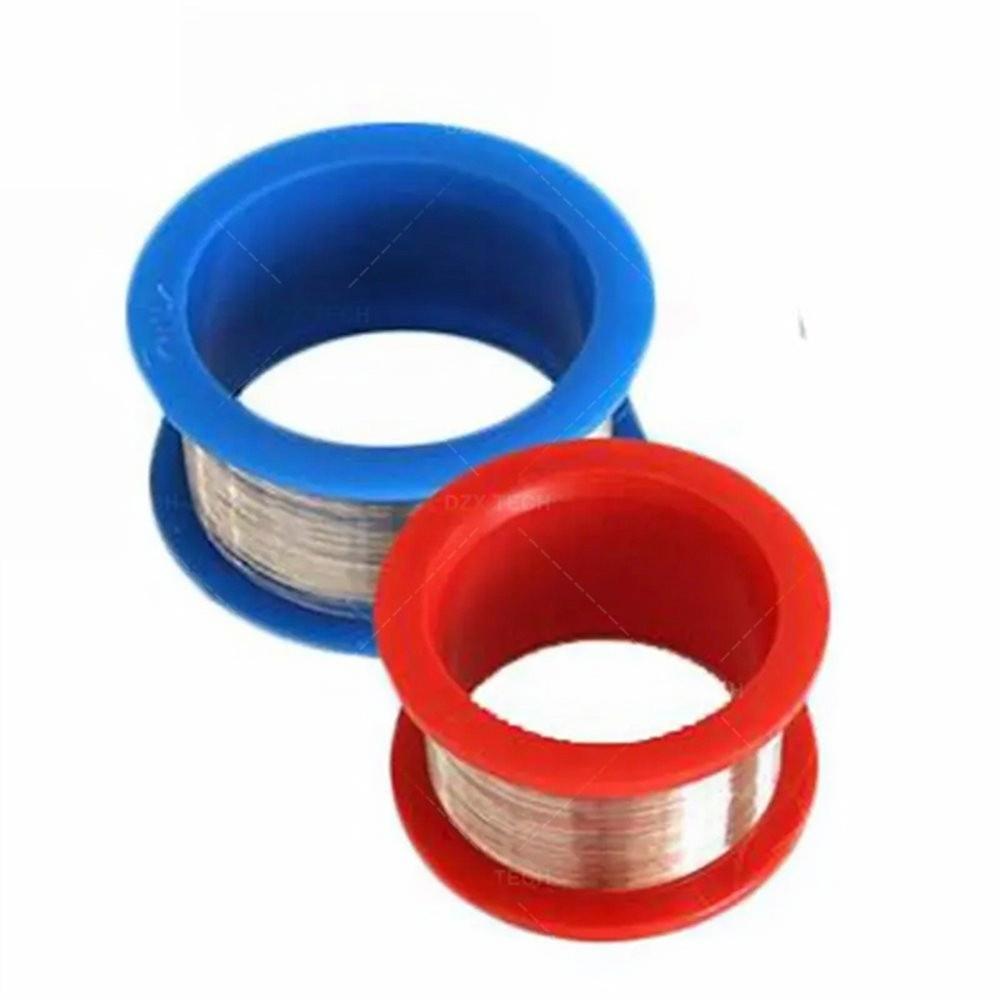

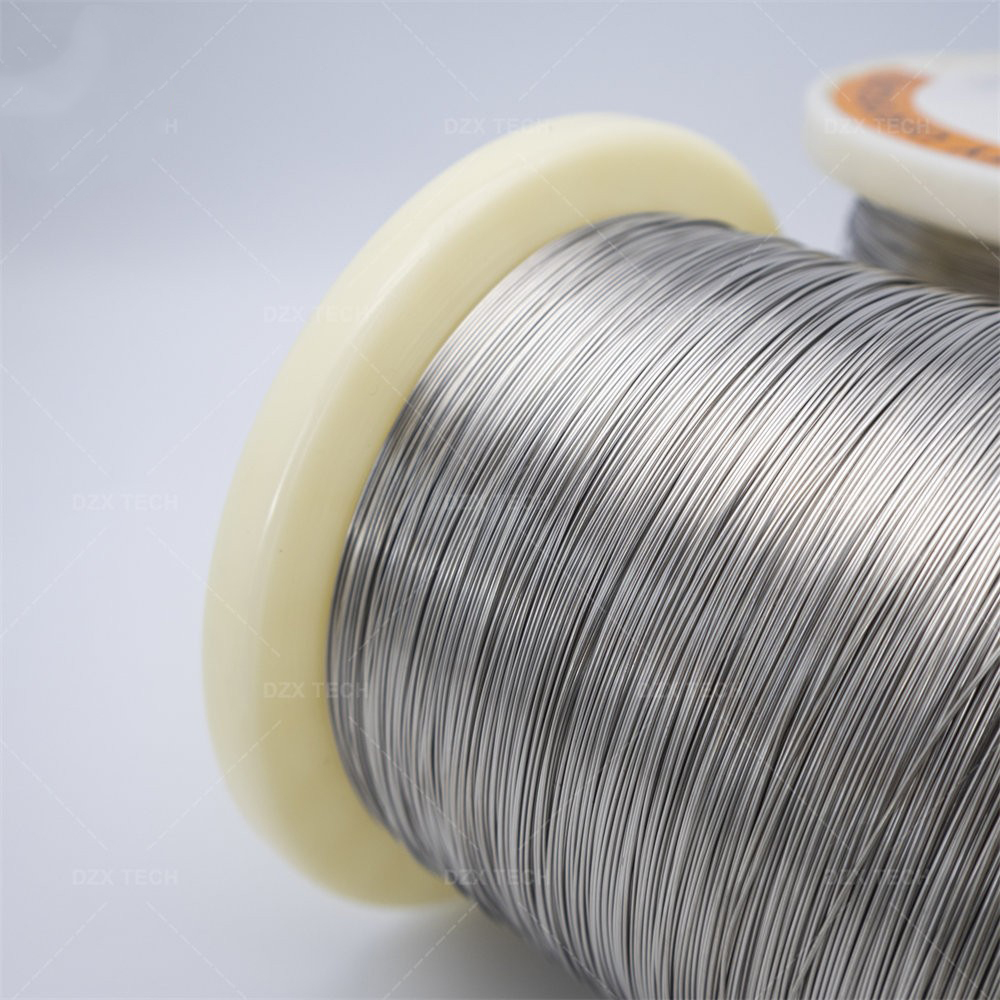

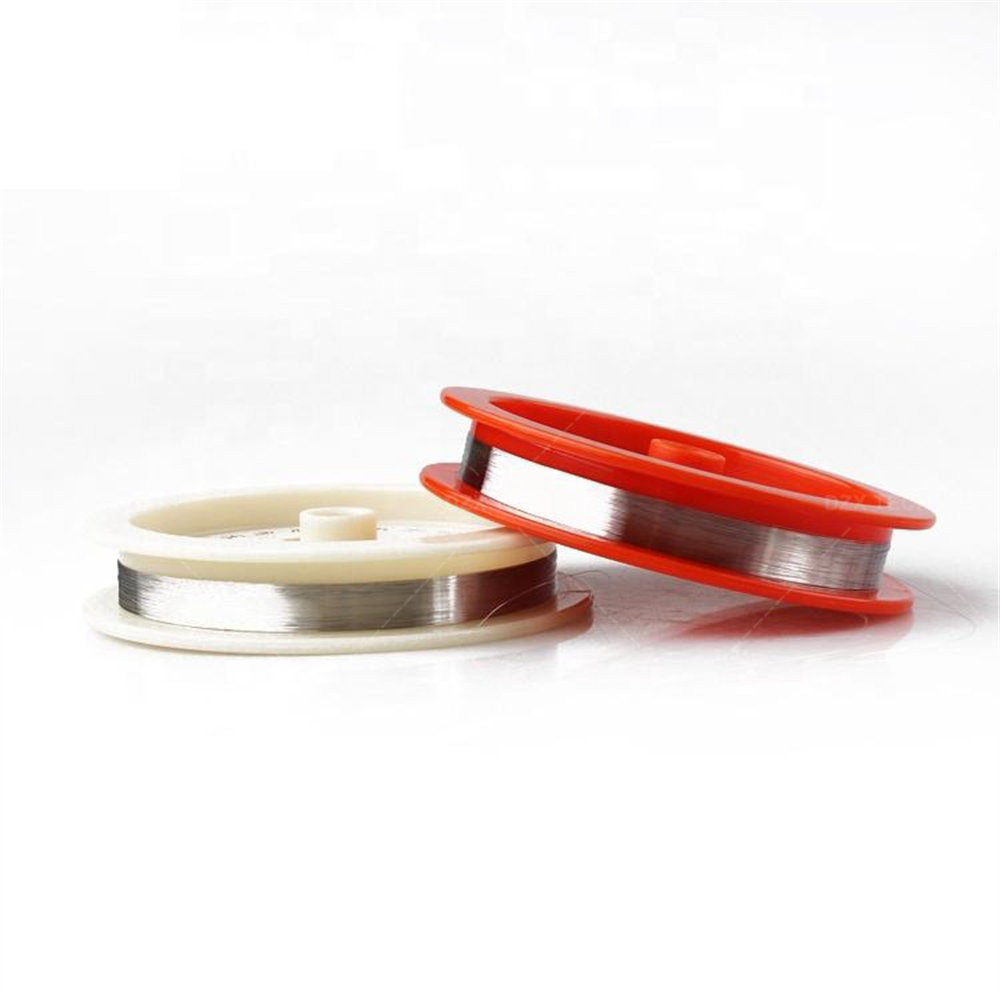

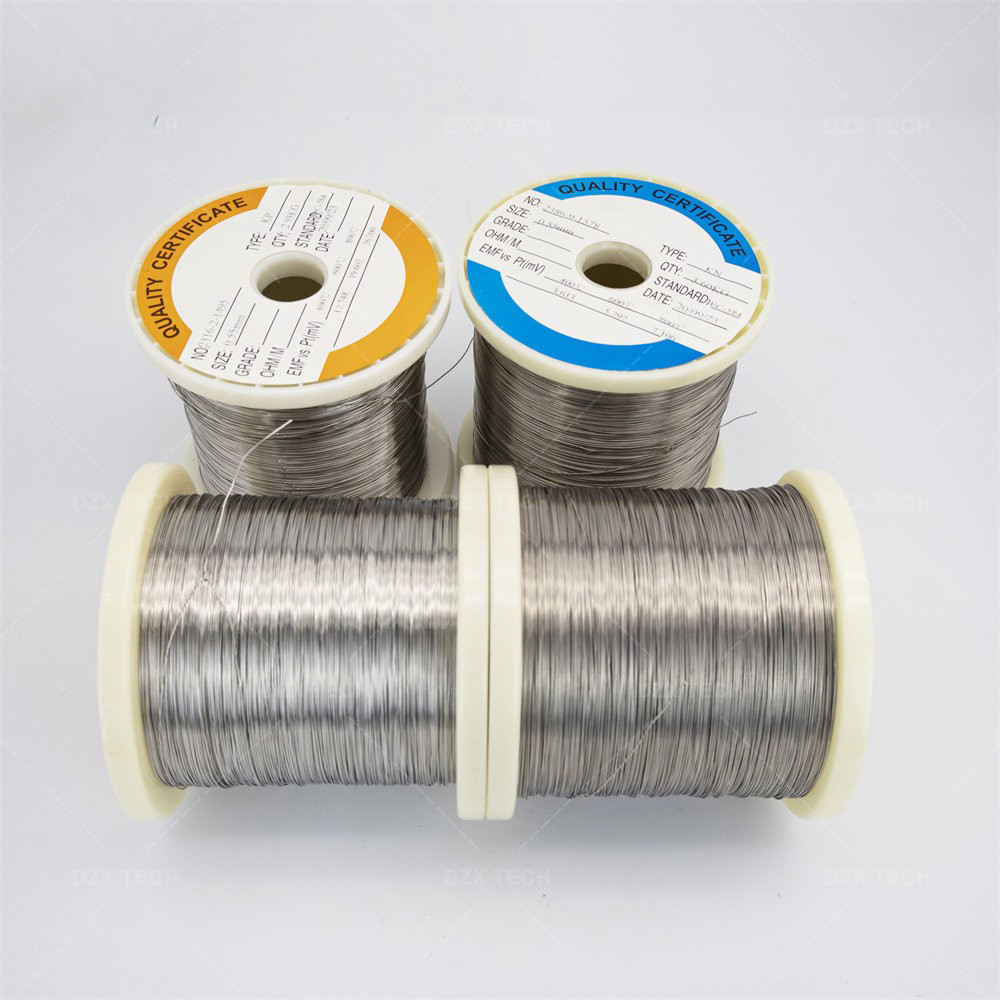

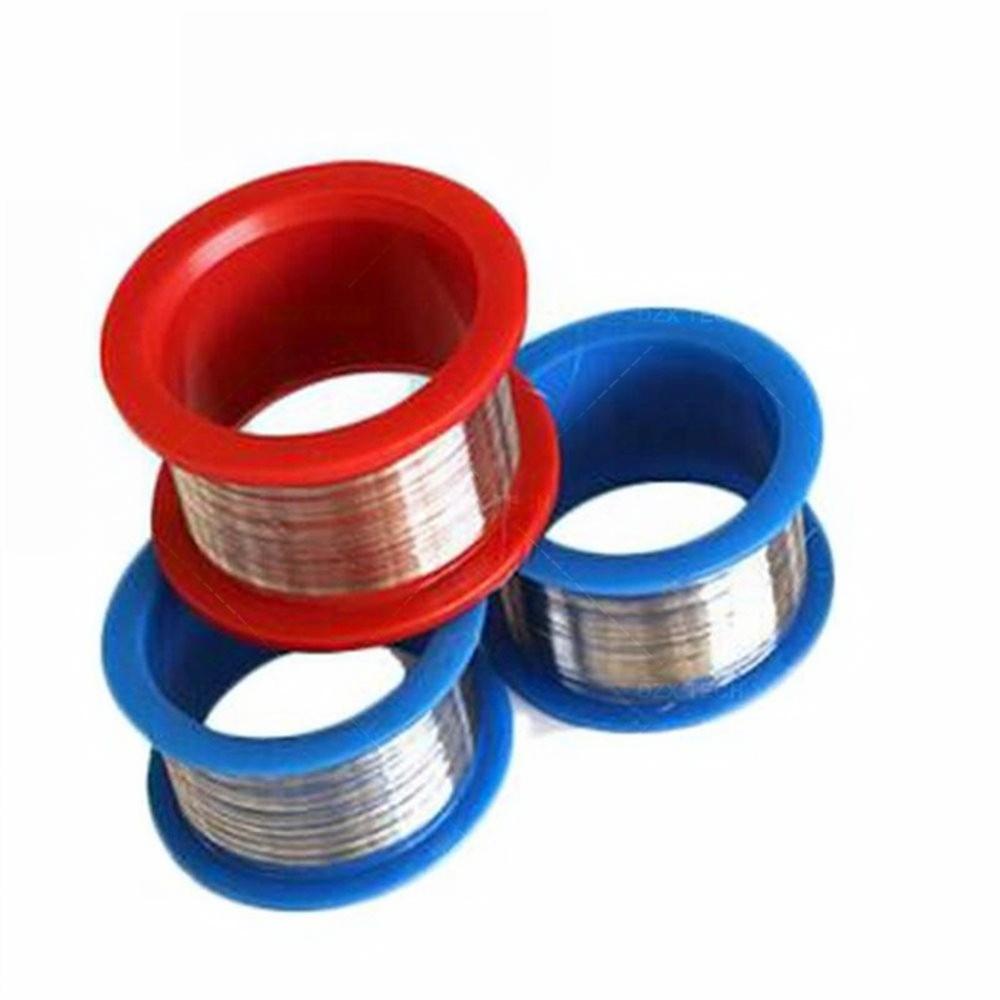

High Quality Thermocouple Bare Wire Type K Constantan T Type Wire Thermocouple Bares Wire
Product name: Thermocouple Bares Wire Size: Customized Size Application:Temperature Sensors, temperature inspector Conductor Type:Solid Insulation Material:None Temperature range: -200 °C-1260 °C Thermoelectric potential: -6.458-54.886 mV
High Quality Thermocouple Bare Wire Type K Constantan T Type Wire Thermocouple Bares Wire
High Quality Thermocouple Bare Wire Type K Constantan T Type Wire Thermocouple Bares Wire
High Quality Thermocouple Bare Wire Type K Constantan T Type Wire Thermocouple Bares Wire
High Quality Thermocouple Bare Wire Type K Constantan T Type Wire Thermocouple Bares Wire
High Quality Thermocouple Bare Wire Type K Constantan T Type Wire Thermocouple Bares Wire
Inquire Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
High Quality Thermocouple Bare Wire Type K Constantan T Type Wire Thermocouple Bares Wire
High Quality Thermocouple Bare Wire Type K Constantan T Type Wire Thermocouple Bares Wire
High Quality Thermocouple Bare Wire Type K Constantan T Type Wire Thermocouple Bares Wire
High Quality Thermocouple Bare Wire Type K Constantan T Type Wire Thermocouple Bares Wire
High Quality Thermocouple Bare Wire Type K Constantan T Type Wire Thermocouple Bares Wire

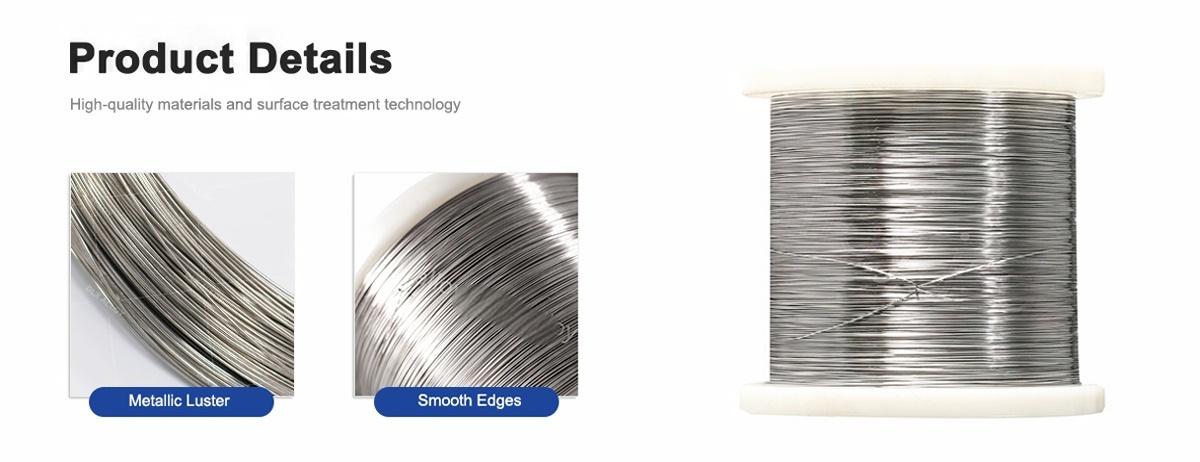

Product Detail









Products Description

T type Thermocouple------the best fit for measuring low temp -200°C

Type T Thermocouple (Copper / Constantan): The Type T is a very stable thermocouple and is often used in extremely low temperature applications such as cryogenics or ultra low freezers. It is found in other laboratory environments as well. The type T has excellent repeatability between –380F to 392F (–200C to 200C)


Type T Temperature Range:

* Thermocouple grade wire, -454 to 700F (-270 to 370C)

* Extension wire, 32 to 392F (0 to 200C)


Type T Accuracy (whichever is greater):

* Standard: +/- 1.0C or +/- .75%

* Special Limits of Error: +/- 0.5C or 0.4%


T thermocouple applications:

* The Type T Is Well Suited To Oxidizing Atmospheres


ASTM

(American Society for Testing and Materials) E 230

ANSI

(American National Standard Institute) MC 96.1

IEC

(European Standard by the International Electrotechnical Commission 584)-1/2/3

DIN

(Deutsche Industrie Normen) EN 60584-1/2

BS

(British Standards) 4937.1041, EN 60584-1/2

NF

(Norme Francaise) EN 60584-1/2-NFC 42323-NFC 42324

JIS

(Japanese Industrial Standards) C 1602-C 1610

GOST

(Unification of the Russian Specifications) 3044


Code

+Positive leg

-Negative leg

Temperature Range

N

Ni-Cr-Si (NP)

Ni-Si-Mg (NN)

-454 to 2300°F (-270 to 1,260°C)

K

Ni-Cr-Si (KP)

Ni-Al (KN)

–454 to 2,300°F (–270 to 1260°C)

E

Ni-Cr (EP)

Cu-Ni<constantan> (EN)

-454 to 1600°F (-270 to 870°C)

J

Iron (JP)

Cu-Ni<constantan> (JN)

-346 to 1,400°F (-210 to 760°C)

T

Copper (TP)

Cu-Ni<constantan> (TN)

-454 to 700°F (-270 to 370°C)

B

Platinum Rhodium-30%

Platinum Rhodium-6%

32 to 3100°F (0 to 1700°C)

R

Platinum Rhodium-13%

Platinum

-58 to 2700°F (-50 to 1480°C)

S

Platinum Rhodium-10%

Platinum

-58 to 2700°F (-50 to 1480°C)

C (W-Re5/26)

Tungsten 5% Rhenium

Tungsten 26% Rhenium

212 to 4172°F (100 to 2300°C)

D (W-Re3/25)

Tungsten 3% Rhenium

Tungsten 25% Rhenium

212 to 4172°F (100 to 2300°C)

G (W-Re26)

Pure Tungsten

Tungsten 26% Rhenium

212 to 4172°F (100 to 2300°C)


For more details, pls directly contact us.
