Product name: precision alloy tube Grade: Nickel Base Alloy Size: 8~200mm Resistance (μΩ.m): stable Ultimate Strength (≥ MPa): 550 Elongation (≥ %): 15-25% Density: 8.11 g/cm³
0
Products Description

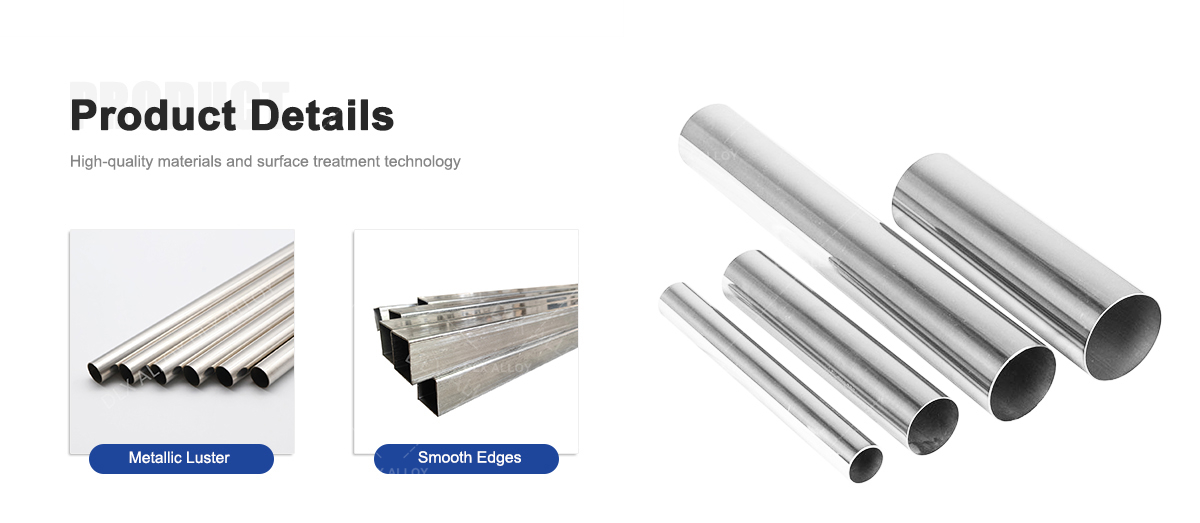

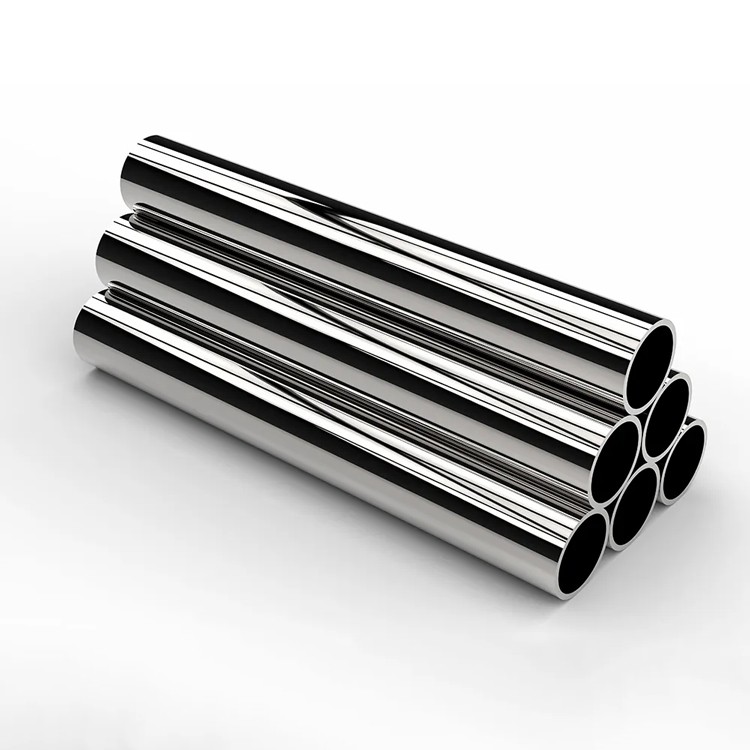

4J29(Kovar),4J32,4J33,4J34,4J36(Invar),4J50 Round Tube
Grade: 4j29,4j36,4j42,4j43,4j44,4j47,4j50etc.
Sharp: wire, bar/rod, strip, sheet, tube
standard: GB/T15018,YB/T5231-2005,YB/T5241-2005,YB/T5235-2005etc.
Basic performance: It is divided into low-expansion alloy and fixed-expansion alloy, the latter is also known as sealing alloy.
Expansion alloy besides has the specific thermal expansion coefficient, according to the different USES also requires a good sealing property, weldability and corrosion resistance, machinability and cutting, and in the use of expansion characteristics caused by the temperature range there is no obvious change of phase transformation, its product is commonly bar, sheet, strip, wire and tube and so on.
Item | 1J33 | 3J01 | 3J9 | 4J29 | 4J32 | 4J33 | 4J45 | FeNi50 | Invar36 |
C | ≤0.05 | ≤0.05 | 0.22-0.26 | ≤0.03 | ≤0.05 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.1 |
Mn | 0.30-0.6 | ≤1.00 | 1.80-2.20 | ≤0.5 | 0.2-0.6 | ≤0.5 | ≤0.8 | ≤0.8 | ≤0.5 |
Fe | Rest | ||||||||
P | ≤0.020 | ≤0.020 | ≤0.03 | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.006 |
S | ≤0.020 | ≤0.020 | ≤0.020 | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.04 |
Si | 0.30-0.6 | ≤0.80 | 1.30-1.70 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.35 |
Ni | 32.8-33.8 | 34.5-36.5 | 9.0-10.5 | 28.5-29.5 | 31.5-33 | 28.5-29.5 | 44.5-45.5 | 49.5-50.5 | 35-38 |
Al | 1.0-2.0 | 1.00-1.80 | -- | -- | -- | -- | ≤0.1 | ≤0.1 | -- |
Co | -- | -- | -- | 16.8-17.8 | 3.2-4.2 | 16.8-17.8 | -- | -- | -- |
Ti | -- | 2.70-3.20 | -- | -- | -- | -- | -- | -- | -- |
Cu | -- | -- | -- | ≤0.2 | 0.4-0.8 | ≤0.2 | -- | -- | -- |
Cr | -- | 11.5-13.0 | 19.0-20.5 | ≤0.2 | -- | ≤0.2 | -- | -- | -- |
Mo | -- | -- | 1.60-1.85 | ≤0.2 | -- | ≤0.2 | -- | -- | -- |
Physical properties | ||||||||
Density (g/cm3) | Resistivity (ΜΩ•m) | Curie point (℃) | remanence (T) | Yield Strength (MPa) | Tensile strength (Mpa) | Elongation (%) | Elastic Modulus Ksi | Magnetostriction coefficient |
8.2 | 0.4 | 980 | 1.45 | 1280 | 1340 | 1 | 3x103 | 60x10-6 |
Magnetic properties | |||||||
Product form | Magnetic induction intensity at different magnetic field strength (A/m)/T | Coercivity Hc/(A/m) | |||||
B400 | B800 | B1600 | B2400 | B4000 | B8000 | ||
≥ | ≤ | ||||||
Cold rolled strip | 1.6 | 1.8 | 2 | 2.1 | 2.15 | 2.2 | 128 |
Wire, forged (rolled) material | ... | ... | ... | 2.05 | 2.15 | 2.2 | 144 |
Alloy Type | Trade Name | UNS No. | Specifications | Forms Of Supply | |||
Rod | Strip | Wire | Sheet | ||||
Ni29Co17 | Kovar | K94610 | ASTM F15 | √ | √ | √ | √ |
FeNi36 | Invar 36 | K93603 | ASTM 1684 | √ | √ | √ | |
FeNi32Co5 | Super Invar 32-5 | KI93500 | ASTMF1684 | √ | √ | √ | |
FeNi27Co25 | Ceramvar | F1466 | ASTMF1466 | √ | √ | √ | √ |
FeNi42 | Alloy 42 | K94100 | ASTM F30 | √ | √ | √ | |
FeNi46 | Alloy 46 | K94600 | ASTM F30 | √ | √ | √ | |
FeNi48 | Alloy 48 | K94800 | ASTMF30 | √ | √ | √ | |
FeNi50 | Alloy 52 | K95050 | ASTM F30 | √ | √ | √ | |
