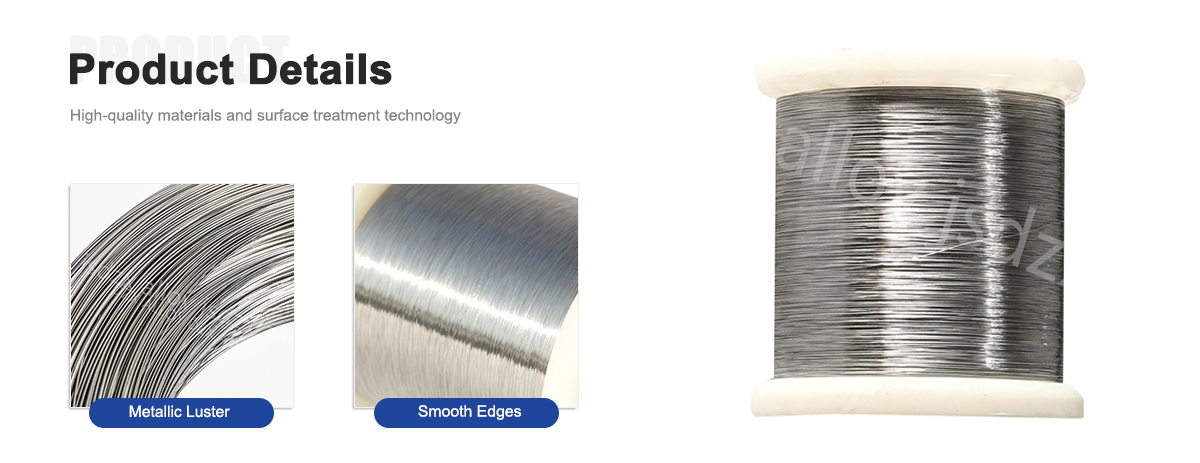

Product name: High Temperature Alloy Wire Grade：Ni Cr Fe Mo Nb Surface：Bright Melting point：1260-1340 °C Density：8.19 g/cm³ Elongation: at least 20% Tensile Strength: at least 690 MPa
0
Products Description
Nimonic80A/90/A-286/GH1140 High temperature Alloy
Nimonic 80A Superalloy is a nickel-chromium based material which offers excellent corrosion and oxidation resistance.
The alloy is precipitation hardenable with additional alloying elements of aluminium, titanium and carbon. The product is a wrought, age-hardenable material developed to operate in service temperatures up to 815°C (1500°F). Nimonic 80A performs well in any application where high temperature and continual stresses is a significant consideration. Traditionally, it is used in applications requiring these characteristics such as gas turbines and in nuclear generators; in the motorsport sector, material applications include exhaust valves in racing engines and spindles and fasteners.
Item | A-286 | Nimonic80A | Nimonic 90 | GH1140 | GH3625 | GH3536 | GH4169 |
C | ≤0.08 | ≤0.1 | ≤0.13 | 0.06-0.12 | ≤0.1 | 0.05-0.15 | ≤0.08 |
Mn | ≤2 | ≤1 | ≤1 | ≤0.7 | 3.14-4.15 | -- | ≤0.35 |
Fe | rest | ≤3 | ≤1.5 | rest | ≤0.5 | -- | rest |
P | ≤0.04 | ≤0.02 | -- | ≤0.025 | -- | -- | -- |
S | ≤0.03 | ≤0.015 | ≤0.015 | ≤0.015 | -- | -- | ≤0.01 |
Si | ≤1 | ≤1 | ≤1 | ≤0.8 | -- | -- | ≤0.35 |
Cu | -- | -- | ≤0.2 | -- | -- | -- | ≤0.3 |
Ni | 24-27 | rest | -- | 35-40 | rest | rest | 50-55 |
Co | -- | ≤2 | 15-21 | -- | ≤1.00 | 0.5-2.5 | ≤1.00 |
Al | ≤0.35 | 1-1.8 | 1-2 | 0.2-0.6 | ≤0.4 | ≤0.5 | 0.2-0.8 |
Ti | 1.9-2.35 | 1.8-2.7 | 2-3 | 0.7-1.2 | ≤0.4 | ≤0.15 | 0.7-1.15 |
Cr | 13.5-16 | 18-21 | 18-21 | 20-23 | 20-23 | 20.5-23 | 17-21 |
Nb | -- | -- | -- | -- | -- | -- | 4.75-5.5 |
Mo | 1-1.5 | -- | -- | 2-2.5 | 8-10 | 8-10 | 2.8-3.3 |
B | 0.001-0.1 | ≤0.008 | ≤0.02 | -- | -- | -- | -- |
V | 0.1-0.5 | -- | -- | -- | -- | -- | -- |
W | -- | -- | -- | 1.4-1.8 | -- | 0.2-1 | -- |
Zr | -- | ≤0.15 | ≤0.15 | -- | -- | -- | -- |
Pb | -- | -- | ≤0.002 | -- | -- | -- | -- |
Ce | -- | -- | -- | ≤0.05 | -- | -- | -- |
Size Range | |
Wire | 0.5-7.5mm |
Rod/Bar | 8.0-200mm |
Strip | (0.50-2.5)*(5-180)mm |
Tube | custom made |
| Plate | custom made |
